Mixed Technology 1 Kit
Fine-Pitch, Throughhole and SMT

Go to: More Kits

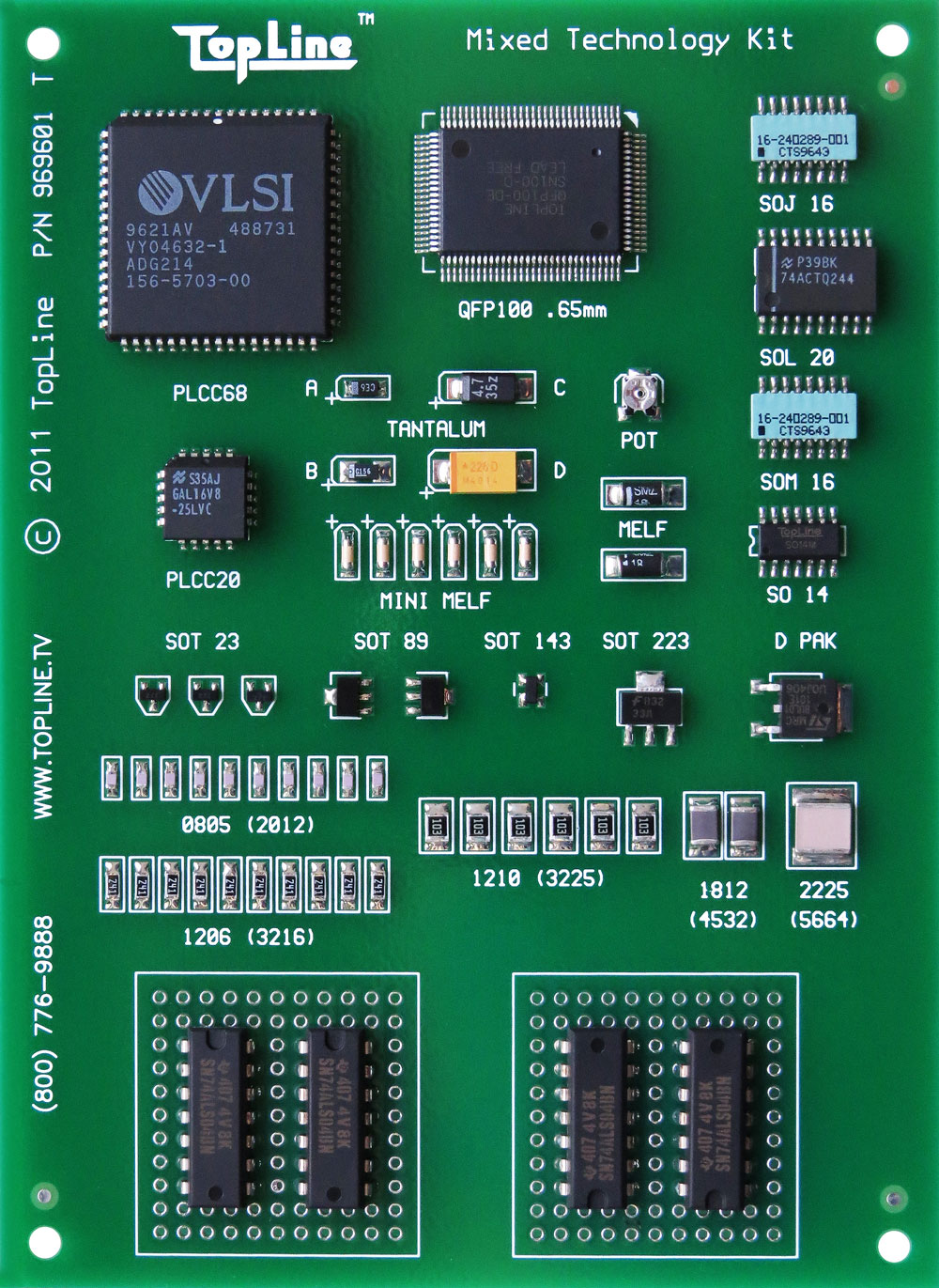

Enlarge: Assembled Board (Top)
Board Size 4"x5.5" (10x14cm)
Same pattern repeated on bottom side.



TopLine Mixed Technology 1 Kit has fine-pitch QFP, SOIC, SOT, PLCC, SMT chips, DIP and more.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=175°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

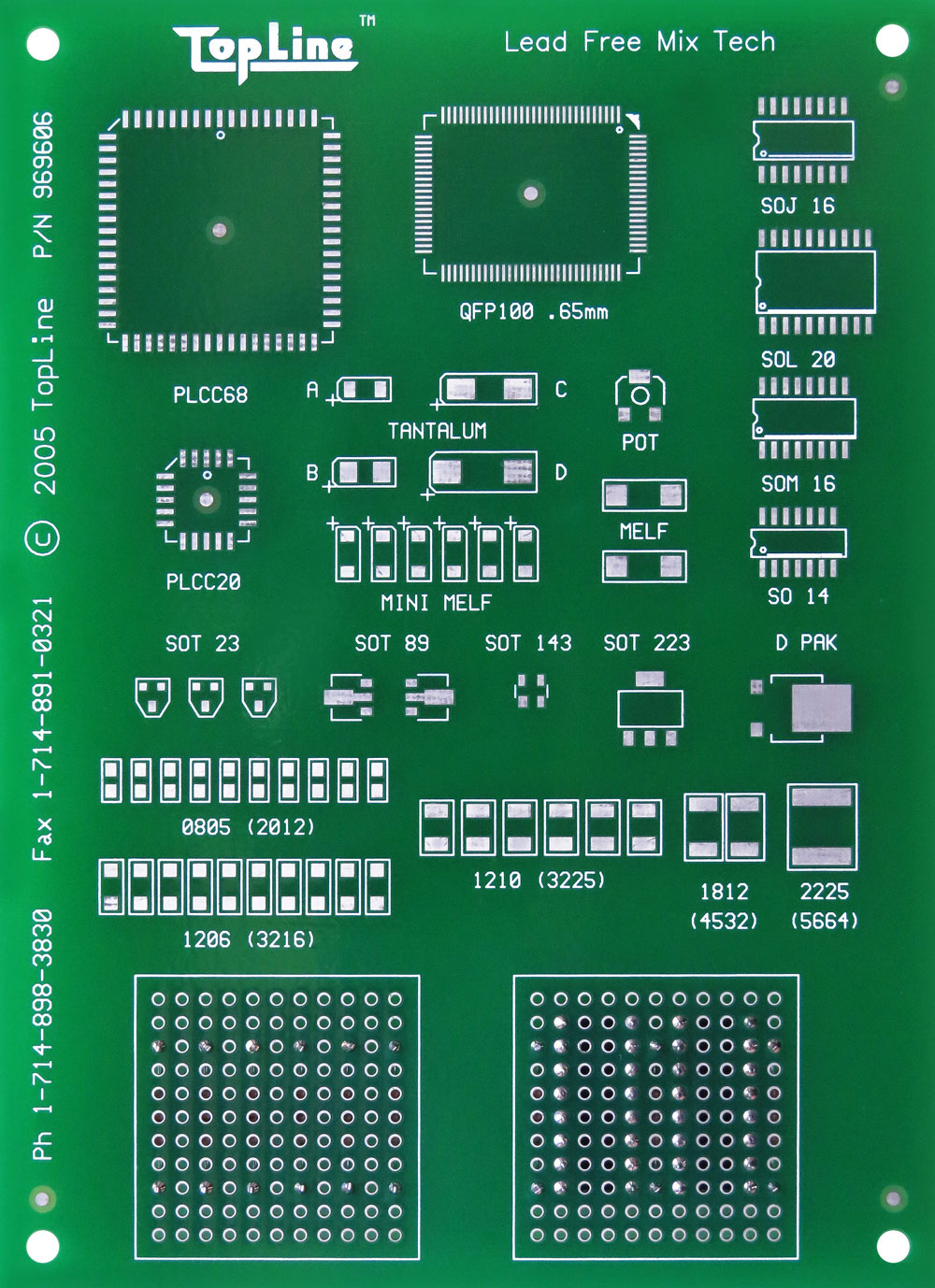

    Enlarge:  Bare Board (Top)

    •
      BOM Kit Contents
    Mixed Technology 1 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    969X00
    1 Kit
    Order #
    969X10
    10 Kits
    Order #
    969X25
    25 Kits
    Order #
    969X50
    50 Kits
    Order #
    969X99
    100 Kits
    Board HASL - SnPb
    X = 6
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    QFP100
    Size 14x20mm
    Pitch 0.65mm (25.6mil)    		 1 1 10 25 50 100
    PLCC20
    Pitch 1.27mm (50mil)    		 1 1 10 50 50 100
    PLCC68
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SO14
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SOM16
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SOL20
    Pitch 1.27mm (50mil)    		 1 1 10 25 50 100
    SOT23 3 3 30 75 150 300
    SOT89 2 2 20 50 100 200
    SOT223 1 1 10 25 50 100
    DPAK
    TO-252AA    		 1 1 10 25 50 100
    TANTALUM A
    EIA 3216    		 1 1 10 25 50 100
    TANTALUM B
    EIA 3528    		 1 1 10 25 50 100
    TANTALUM C
    EIA 6032    		 1 1 10 25 50 100
    TANTALUM D
    EIA 7343    		 1 1 10 25 50 100
    0805 Chip
    Metric 2012    		 10 10 100 250 500 1000
    1206 Chip
    Metric 3216    		 10 10 100 250 500 1000
    1206 MELF
    Metric 3216    		 6 6 60 150 300 600
    1210 Chip
    Metric 3225    		 6 6 60 150 300 600
    1812 Chip
    Metric 4532    		 2 2 20 50 100 200
    1815 Potentiometer
    Metric 4mm    		 1 1 10 25 50 100
    2308 MELF
    Metric 5922    		 2 2 20 50 100 200
    DIP14~16
    (or Throughhole Resistors)    		 2 2 20 50 100 200


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "969601a" Challenger 2
    Step 4. Download files


    Kit Order Number System
    969 2 # #
    Series Board Finish Quantity
    Mixed Technology 1

    Board Size:
    4"x5.5" (10x14cm)    		 6 = HASL
    2 = Tin (Sn)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 969601
    Tin (Sn) RoHS 969602
    OSP (Cu) RoHS 969608*
    ENIG Gold (Ni/Au) RoHS 969609
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
