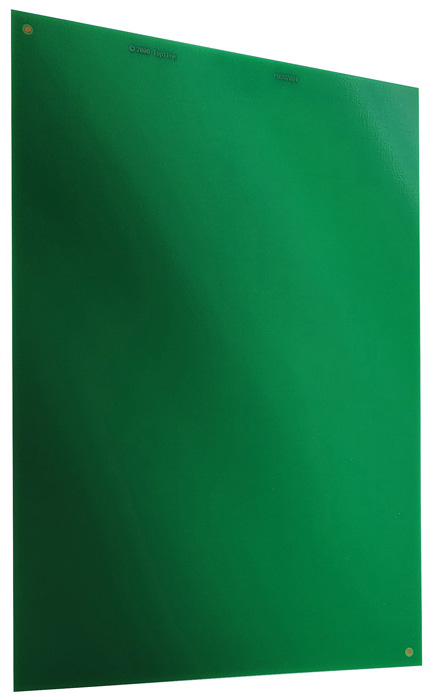

Global Fiducial Board
Blank Board with Solder Mask
2X Global Fiducials

Blank FR4 Board
2X Global Fiducials

Enlarge Global Fiducials: Top Side
Top Side
Board Size 5.5"x8" (12.5x20cm)
Click for Fiducial Location



TopLine 997001 Global Fiducial board has green solder mask and 2X Global Fiducials. 1-oz bare copper SMTA SMEMA fiducials without final finish. Bottom side is bare. Excellent for dispensing adhesives with a variety of placement choices.

Board Features:

  • Final finish: Bare Copper
  • LPI Solder Mask - PSR4000BN
  • FR4 Tg=170°C Isola FR406
  • Size - 5.5"x8.0" (12.5x20cm)
  • Thickness 0.062" (1.6mm)
  • 1-Layer Board (Cu 1oz)
  • Tooling Holes - None
  • IPC Fiducials - 0.062" (1.57mm)

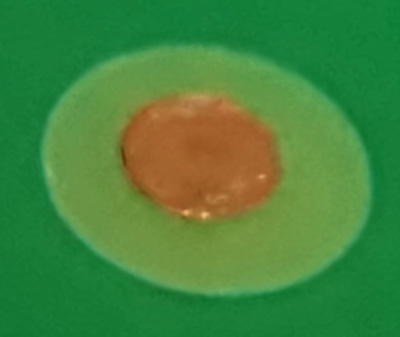

    Enlarge:  SMEMA Fiducial
    Click for Placement Map

    		•

      997001
    Global Fiducial Board
    Without Components
    Board BOM Fiducals
    Per
    Board
    Order# Number
    Board - Bare Copper
    Without Final Finish    		 2 997001

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "997001a" Global Fiducial
    Step 4. Download files

    Board Order Number System
    997 001
    Series Design
    Application Specific Global Fiducial Board
