	B-52 Cleanliness and Residue Evaluation Test Kit

Go to: HP Saber • Saber 4-Board Array

B-52 Cleanliness and Residue Evaluation Test Kits Compatible IPC-B-52

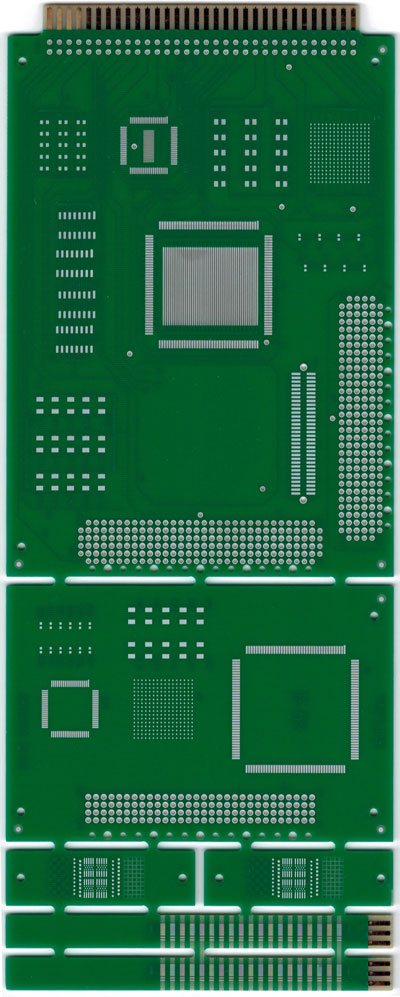

Enlarge: Photo TOP

Board Size 4"x10" (10x39cm)

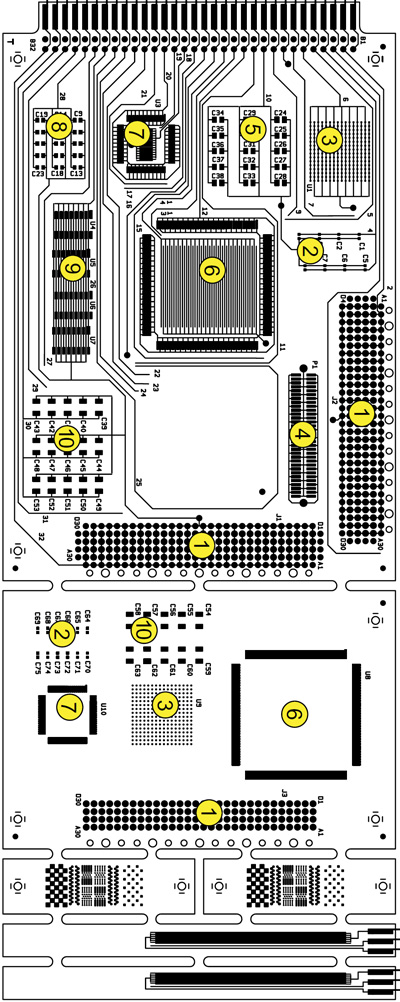

Click for Component Location Numbers

TopLine B-52 Cleanliness and Residue Evaluation Test Kit measures ionic and chemical cleanliness of your SMT and throughhole assembly process. Kit follows guidelines of IPC-B-52 test vehicles. Uses ionic and surface insulation resistance (SIR) methods for evaluating electrochemical failures in humid environments. Choice of full version kits that includes PCB, components and connectors. Also available "Economical" version without connectors. Spare Parts are available for customers that provide their own PCB.

Chromatography is the preferred method for determining both type and amount of ionic residue. Reference IPC ion chromatography IPC-TM-650 method 2.3.28. The B-52 boards also provides SIR testing using IPC-TM-650 method 2.6.3.7.

Board consists of four segments:

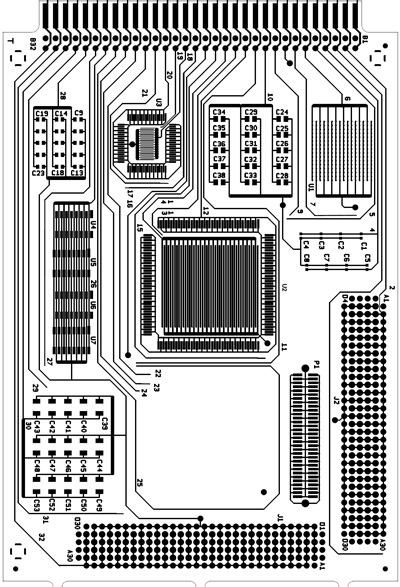

4"x5.5" Main SIR test board.

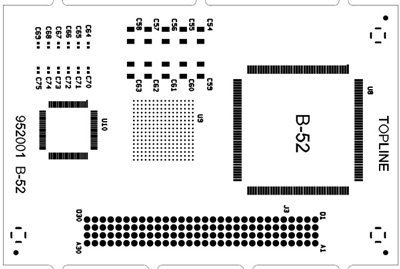

4"x2.6" Ion Chromatography Coupon
0.55" Solder Mask Adhesion Strip
0.31" SIR mini-coupons 2 each

Board Features:

Choice of Final finish:
• Immersion Tin (Sn)
• ENIG (Ni/Au)Gold
• OSP Copper
• Immersion Silver
• HASL SnPb

LPI Solder Mask - PSR-4000BN

FR4 Tg=180°C

Size - 4"x10" (10x39.4cm)

Thickness 0.062" (1.6mm)

2-Layer Board

RoHS Compliant

Tooling Holes .125" (3.17mm)

IPC Fiducials - 0.062" (1.57mm)

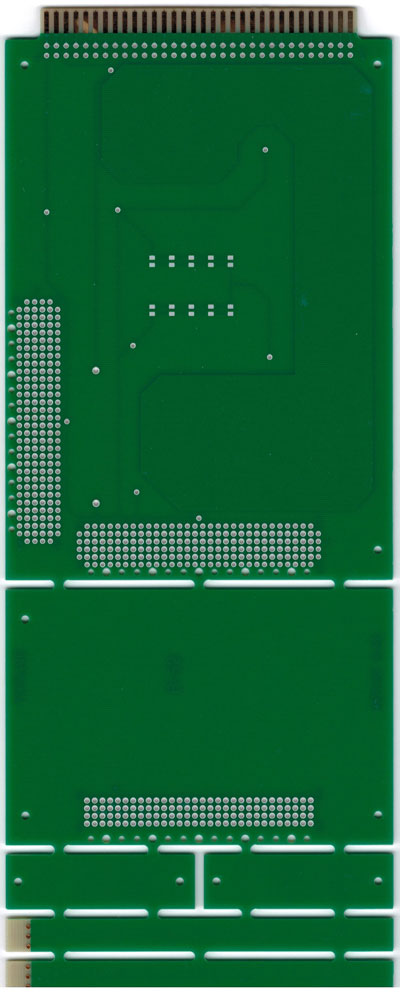

Enlarge: Bottom Photo

			BOM Kit Contents B-52 Cleanliness and Residue Kit Kit Quantities(Ask for Other Qty Available)
Kit BOM	Location Yellow Numbers	Ref	Components Per Board	Order # 952N12 Full Version 12 Kits	Order # 952N13 Econo Version 12 Kits	Order # 952N24 Full Version 24 Kits	Order # 952N25 Econo Version 24 Kits	Order # 952N48 Full Version 48 Kits	Order # 952N49 Econo Version 48 Kits	Order # 952N96 Full Version 96 Kits
Board HASL - SnPb N = 0 (4th Digit in Order#)		SnPb Tin-Lead BGA		12	12	24	24	48	48	96
Board - Tin (Sn) N = 2 (4th Digit in Order#)		RoHS Pb-Free BGA		12	12	24	24	48	48	96
Board Silver (Ag) N = 6 (4th Digit in Order#)		RoHS Pb-Free BGA		12	12	24	24	48	48	96
Board OSP (Cu) N = 8 (4th Digit in Order#)		RoHS Pb-Free BGA		12	12	24	24	48	48	96
Board - ENIG - Gold (Ni/Au) N = 9 (4th Digit in Order#)		RoHS Pb-Free BGA		12	12	24	24	48	48	96
Board - ENIG - Gold (Ni/Au) N = 5 (4th Digit in Order#)		SnPb Tin-Lead BGA		12	12	24	24	48	48	96

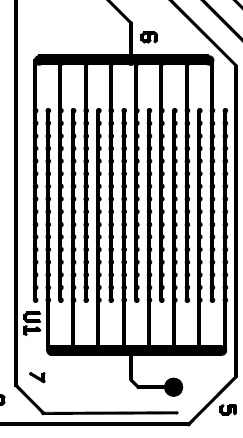

BGA256T1.0C-ISO Lead Free SAC305 17x17mm Pitch 1.0mm Isolated BGA256T1.0-ISO Tin-Lead SnPb Isolated	3	U1 , U9	2	24	24	48	48	96	96	192

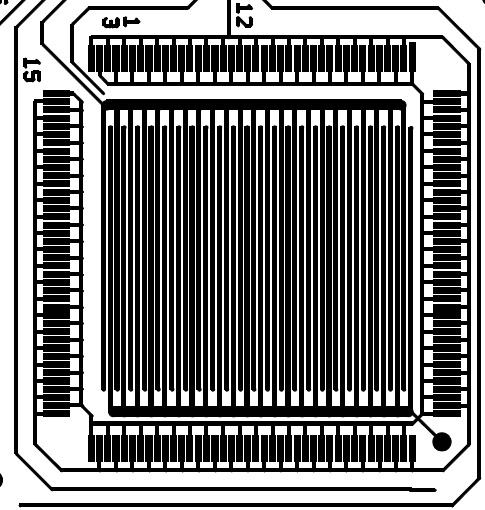

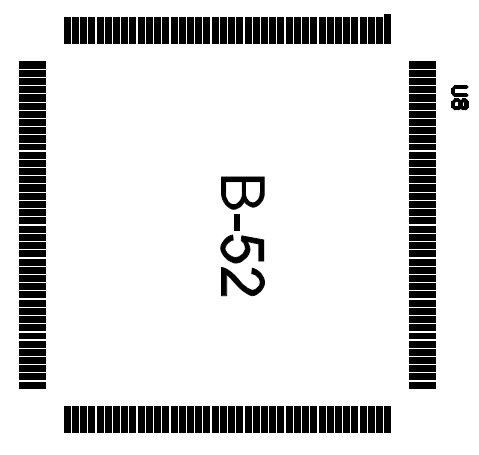

QFP160T25T-3.2-ISO 28x28mm Pitch 0.65mm FP 3.2mm or 3.9mm Isolated	6	U2 , U8	2	24	24	48	48	96	96	192
TQFP80T19.7T-ISO 12x12mm Pitch 0.5mm FP 2.0mm Isolated	7	U3 , U10	2	24	24	48	48	96	96	192

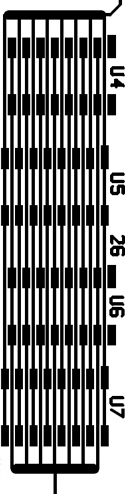

SO16-ISO 3.9mm (150mil) Pitch 1.27mm (50mil) Isolated	9	U4~U7	4	48	48	96	96	192	192	384
SC0402 10pF Capacitor	2	C1~C8 C64~C75	20	240	240	480	480	960	960	1920
SC0603 10pF Capacitor	8	C9~C23	15	180	180	360	360	720	720	1440
SC0805 10pF Capacitor	5	C24~C38 C76~C85	25	300	300	600	600	1200	1200	2400
SC1206 10pF Capacitor	10	C39~C63	25	300	300	600	600	1200	1200	2400

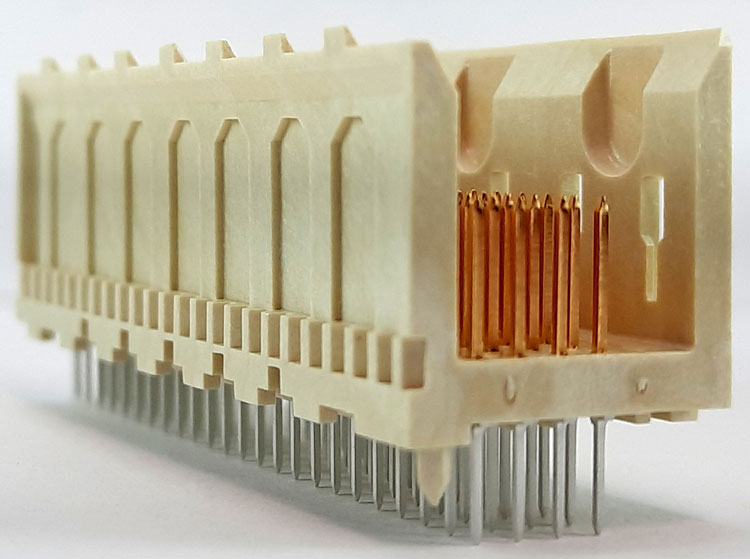

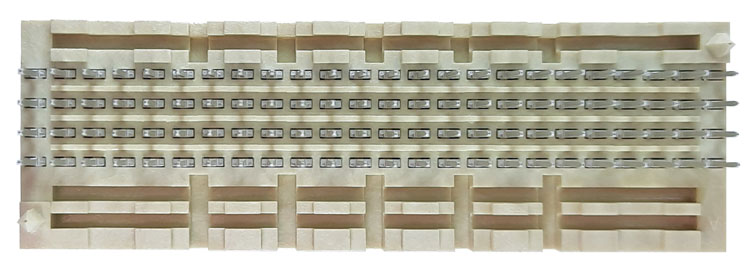

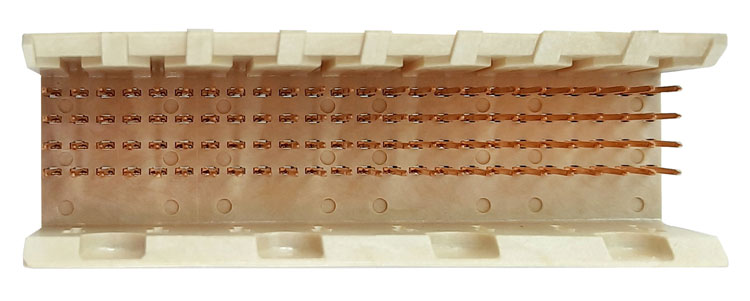

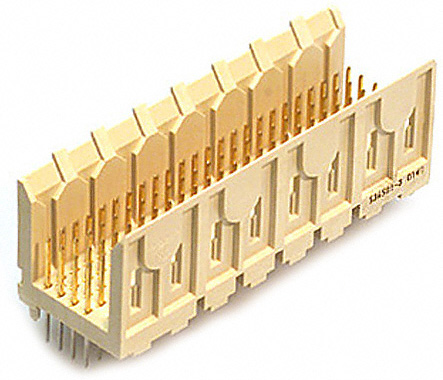

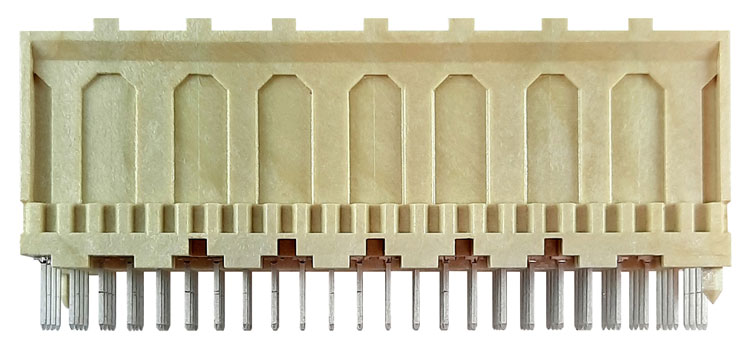

CONN96 Thru hole Pitch 2.0mm 4x24 pins 536501-3 5536501-3 (LF) Photos: Perspective Side View Top View Bottom View Customer to cut-off positioning pegs before mounting to board.	1	J1, J2, J3	3	36	0	72	0	144	0	288

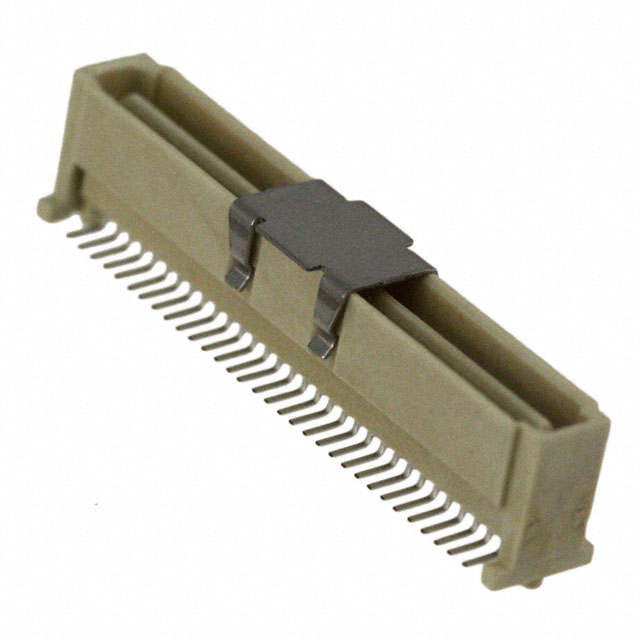

CONN64 Surface Mount Pitch 1.0mm 2x32 pins 71439-0864 71439-0964 71436-2164	4	P1	1	12	0	24	0	48	0	96
Explanation of Full Version vs Economy Version: 1. Full Kit Version: With connectors. 2. Customer to cut-off thru hole connector positioning pegs. 3. Economical Kit Version are without connectors.

Download Solder Paste Gerber & Parts Placement Data

Step 1. Click Here for TopLine's Document Center. Sign up and Log in.

Step 2. Click link "Gerber Files"

Step 3. Click link "952001a" B-52 Kit

Step 4. Download files

Kit Order Number System
952	9	# #
Series	Board Finish	Quantity
B-52 Kit 4"x10" (10x39.4cm)	Non-RoHS Kit - With Boards: 0 = HASL Tin-Lead Board 5 = ENIG Gold (NiAu) Board Tin-Lead SnPb BGA Lead Free Kit - With Boards: SAC305 BGA 2 = Tin (Sn) Board 6 = Silver (Ag) Board 8 = OSP (Cu) Board 9 = ENIG Gold (NiAu) Board Parts Only Kit - Without Boards: 3 = Non-RoHS BGA 4 = RoHS BGA Customized Kit Configuration 7 = Other	Full Version With Connectors 12 = 12 Kits 24 = 24 Kits 36 = 36 Kits 48 = 48 Kits 72 = 72 Kits 96 = 96 Kits Econo Version Without Connectors 13 = 12 Kits 25 = 24 Kits 37 = 36 Kits 49 = 48 Kits 73 = 72 Kits 97 = 96 Kits Ask for other quantites available.

Spare Boards
Board Finish	Lead-Free Pb-Free	Order Number
HASL (SnPb)	Not RoHS	952001
Tin (Sn)	RoHS	952002
Silver (Ag)	RoHS	952006
OSP (Cu)	RoHS	952008
ENIG Gold (Ni/Au)	RoHS	952009

Spare Parts
Plating	Lead-Free Pb-Free	Qty per Package	Ref	Drawing
Tin-Lead Sn63Pb37	Not RoHS	Tray 90	U1,U9	BGA256T1.0-ISO
SAC305 SnAgCu	RoHS	Tray 90	U1,U9	BGA256T1.0C-ISO
Tin (Sn)	RoHS	Tray 24	U2,U8	QFP160T25T-3.2-ISO
Tin (Sn)	RoHS	Tray 119	U3,U10	TQFP80T19.7T-ISO
Tin (Sn)	RoHS	Tube 48 Reel 100 Reel 500	U4~7	SO16-ISO
Tin (Sn)	RoHS	Reel 10,000 Reel 500	C1~8, C64-75	SC0402P7A-T-10pF SC0402P4A-T-10pF
Tin (Sn)	RoHS	Reel 4,000 Reel 500	C9~23	SC0603P7A-T-10pF SC0603P4A-T-10pF
Tin (Sn)	RoHS	Reel 4,000 Reel 500	C24~38, C76~85	SC0805P7A-T-10pF SC0805P4A-T-10pF
Tin (Sn)	RoHS	Reel 4000 Reel 500	C39~63	SC1206P7A-T-10pF SC1206P4A-T-10F
Tin (Sn)	RoHS	Tube 12	Standard Thru Hole Connector 4x24=96 Pins J1~J3	536501-3 Non-RoHS 5536501-3 RoHS Photos: Perspective • Side View Top View • Bottom View Customer to cut-off Positioning Peg before mounting.

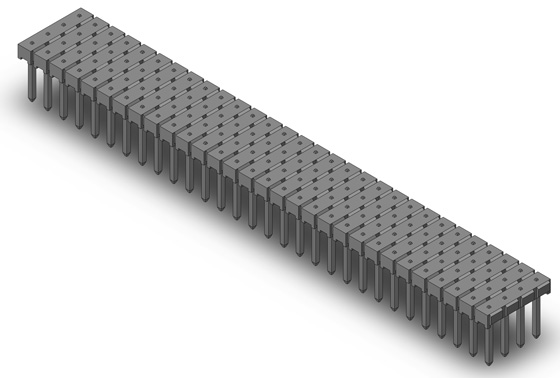

Tin (Sn)	RoHS	Tube	Optional 4x30=120 Pins Thru Hole Connector J1~J3	MTMM-130-02-T-Q-005 120 Pin Header Thru hole Connector
Tin (Sn)	RoHS	Reel 56mm Wide	P1	71439-0864 71439-0964 71436-2164 2x32 Pins 64 Pin SMT
