C7-PRINTER
Benchtop Stencil Printer
CCGA Column Attachment

Catalog   •   CCGA Packages  •   More tools   •   CCGA Library   •   Stencil   •   CCGA Columns   •   Pin-Pack

Manual stencil printer for R&D attachment of solder columns

With Squeegee		 Model C7-PRINTER-A

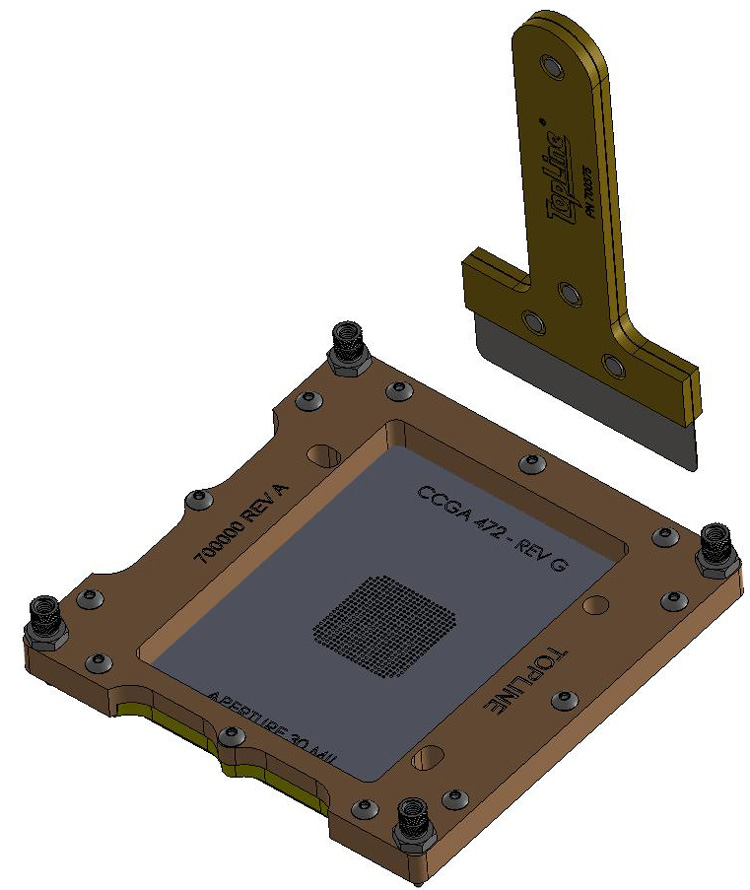

Manual solder paste printer for attachment of solder columns and Micro-coil springs. Rugged construction. Mates directly with TopLine's Graphite fixture. Process volumes up to 500 CGA packages per month. Each C7-PRINTER includes a stencil frame, stencil clamp and hardware. Select 4.250" (108mm) stencils from TopLine to match your CCGA package. Stencil change-over is quick - less than 10 minutes.

Features
  • Benchtop size: 5"x5" (125x125mm)
  • Power requirements: None
  • Stencil Size: 4.25" SQ (108mm)
  • Substrate size: 8mm to 45mm
  • Includes: FRAME, CLAMP, STENCIL and Hardware.
  • Stencil sold separately. See Stencils
    •
    SPARE PARTS & ACCESSORIES
    For C7-PRINTER
    DWG Number Model Description Solidworks
    Model
    700000 C7-PRINTER-A For 4.25" Stencil 360° Model
    700120 C7-PRINTER-B For 5.625" Stencil 360° Model
    700375 C7-SQUEEGEE-70B 2.75" (70mm) Comfort Handle.
    Metal Blade 19 x 70 x 0.25mm    		 360° Model
    6xxxxx C7-STENCIL-XXX 4.25" (108mm) Stencils 360° Model

    Solder Paste STENCIL
    4.25-inch (108mm) frameless stencils.

    Features
  • Stencil Frame Size: 4.25" SQ (108mm)
  • Aperture and Thickness: See table
  • Substrate size: 8mm to 45mm
    •
    4.25" (108mm) STENICL
    Shown after mounting on frame
    Note 3: Consult with TopLine for recommended stencil.

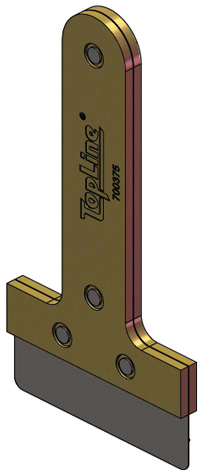

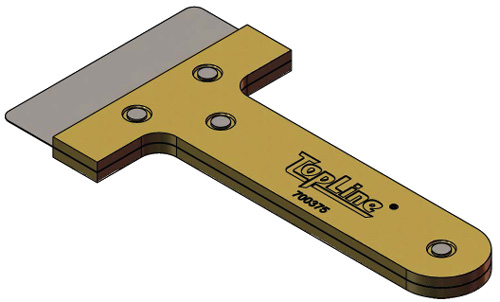

    Solder Paste C7-SQUEGEE-70B
    Order Nbr 700375
    2.75-inch (70mm) Wide Metal Blade.

    Features
  • Blade Width: 2.75" (70mm)
  • Blade Thickness: 0.010" (0.25mm)
  • Aluminum Handle: 1.0"W x 0.25"Th
  • Coated blade for optimum results
    •
    Recommended Squeegee
    For C7-PRINTER System



    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.



    Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.
