What is CCGA: Column Grid Array (CCGA) provides a trusted solution for overcoming CTE mismatch (coefficient of thermal expansion) between large IC packages and printed circuit boards (PCB). Solder columns are compliant and absorb strain for critical applications typically found in the fields of military, aerospace and defense where significantly varying temperatures, high vibration and shock are present. Road map Next Generation solder columns for superconducting and cryogenic • Quantum Computers  • AI/ML Data Centers .
Cryo Questionnaire
Column Questionnaire
CCGA484 CCGA624 CCGA1152 CCGA1272 CCGA1752

Columns Matrix Pitch Size (mm) Die

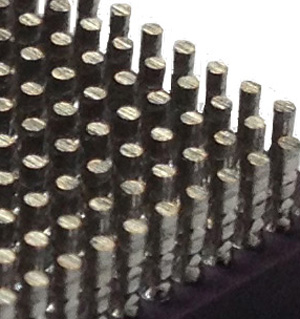

Location		 Pb80/Sn20
Cu Wrap Columns		 Pb90/Sn10
Plain Columns		 Micro-coil
Springs		 Column
Attachment
Tooling
196 14x14 1.0mm 15mm Heat Spreader CCGA196T1.0-DC149D
Model		 CCGA196T1.0A-DC149D
Model		 CCGA196T1.0M-DC149D
Model		 Tooling*
399 20x20 1.0mm 21mm Inside CCGA399T1.0-DC207D
Model		 CCGA399T1.0A-DC207D
Model		 CCGA399T1.0M-DC207D
Model		 Tool_Set
CCGA399A
472 22x22 1.27mm 29mm Inside CCGA472T1.27-DC226D
Model		 CCGA472T1.27A-DC226D
Model		 CCGA472T1.27M-DC226D
Model		 Tool_Set
CCGA472A
483 22x22 1.0mm 23mm Inside CCGA483T1.0-DC225D
 Model		 CCGA483T1.0A-DC225D
 Model		 CCGA483T1.0M-DC225D
Model		 Tool Set
CCGA483A
624 25x25 1.27mm 32.5mm Inside CCGA624T1.27-DC254D
Model		 CCGA624T1.27A-DC254D
Model		 CCGA624T1.27M-DC254D
Model		 Tool Set
CCGA624A
625 25x25 1.0mm 29mm Inside CCGA625T1.0-DC258D
Model		 CCGA625T1.0A-DC258D
Model		 CCGA625T1.0M-DC258D
Model		 Tool Set
CCGA625A
717 27x27 1.27mm 35mm Inside CCGA717T1.27-DC275D
Model		 CCGA717T1.27A-DC275D
Model		 CCGA717T1.27M-DC275D
Model		 Tool Set
CCGA717
896 30x30 1.0mm 31mm Inside CCGA896T1.0-DC308D
Model		 CCGA896T1.0A-DC308D
 Model		 CCGA896T1.0M-DC308D
 Model		 Tool Set
CCGA896C
1024 32x32 1.0mm 35mm Heat Spreader CCGA1024T1.0-DC328D
Model		 CCGA1024T1.0A-DC328D
Model		 CCGA1024T1.0M-DC328D
Model		 Tooling
1140 34x34 1.0mm 35mm Surface
Mount		 CCGA1140T1.0-DC341D
 Model		 CCGA1140T1.0A-DC341D
 Model		 CCGA1140T1.0M-DC341D
Model		 Tooling
1140 34x34 1.0mm 35mm Surface
Mount		 CCGA1140T1.0-DC341CF
 Model		 CCGA1140T1.0A-DC341CF
 Model		 CCGA1140T1.0M-DC341CF
Model		 Tooling Set
CG1140CF
1144 34x34 1.0mm 35mm Surface
Mount		 CCGA1144T1.0-DC348D
 Model		 CCGA1144T1.0A-DC348D
 Model		 CCGA1144T1.0M-DC348D
Model		 Tool Set
CG1144A
1144 34x34 1.0mm 35mm CN Heat
Spreader		 CCGA1144T1.0-DC348CN
 Model		 CCGA1144T1.0A-DC348CN
 Model		 CCGA1144T1.0M-DC348CN
Model		 Tool Set
CG1144CN
1152 34x34 1.0mm 35mm Inside CCGA1152T1.0-DC346D
 Model		 CCGA1152T1.0A-DC346D
 Model		 CCGA1152T1.0M-DC346D
Model

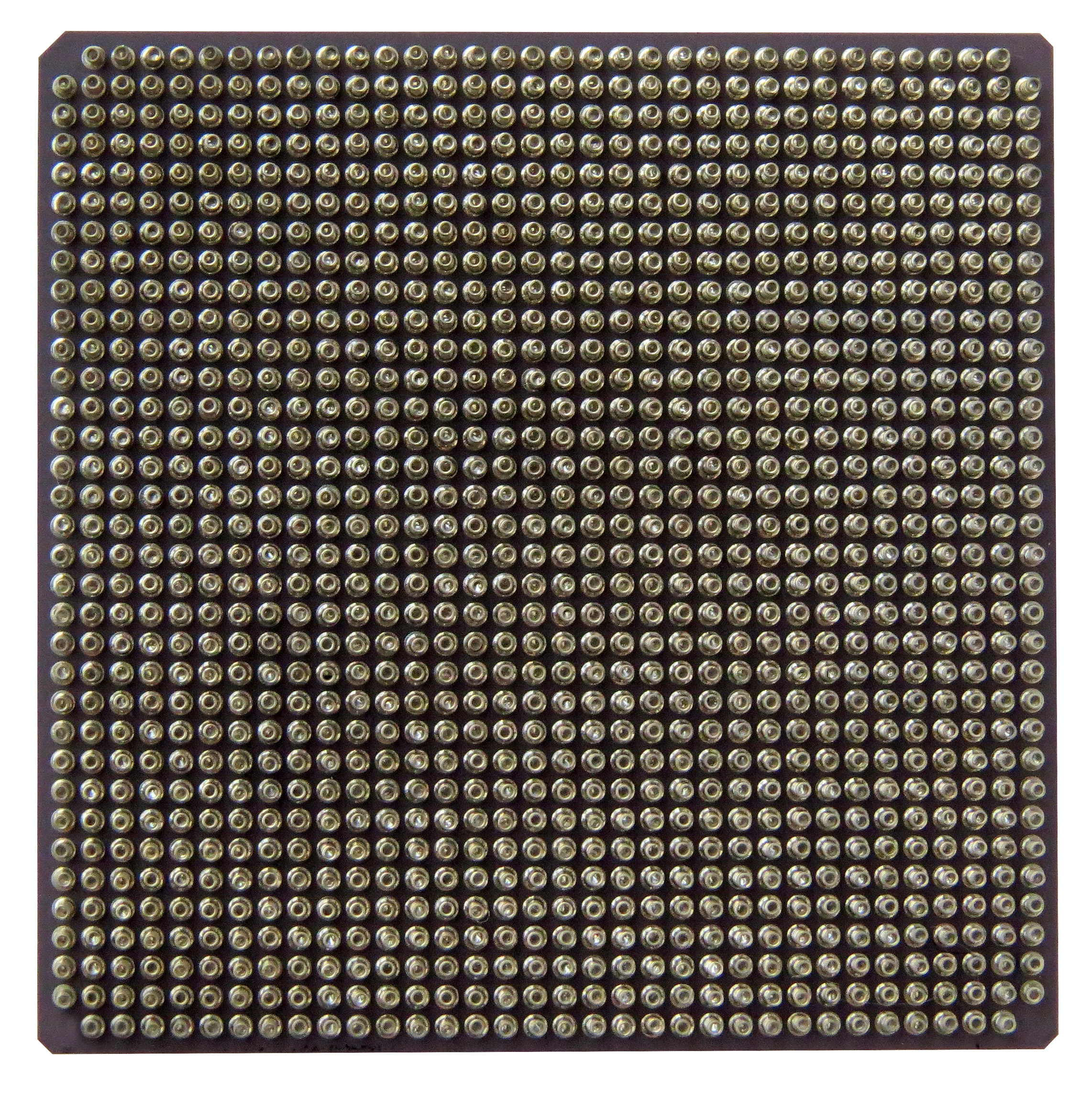

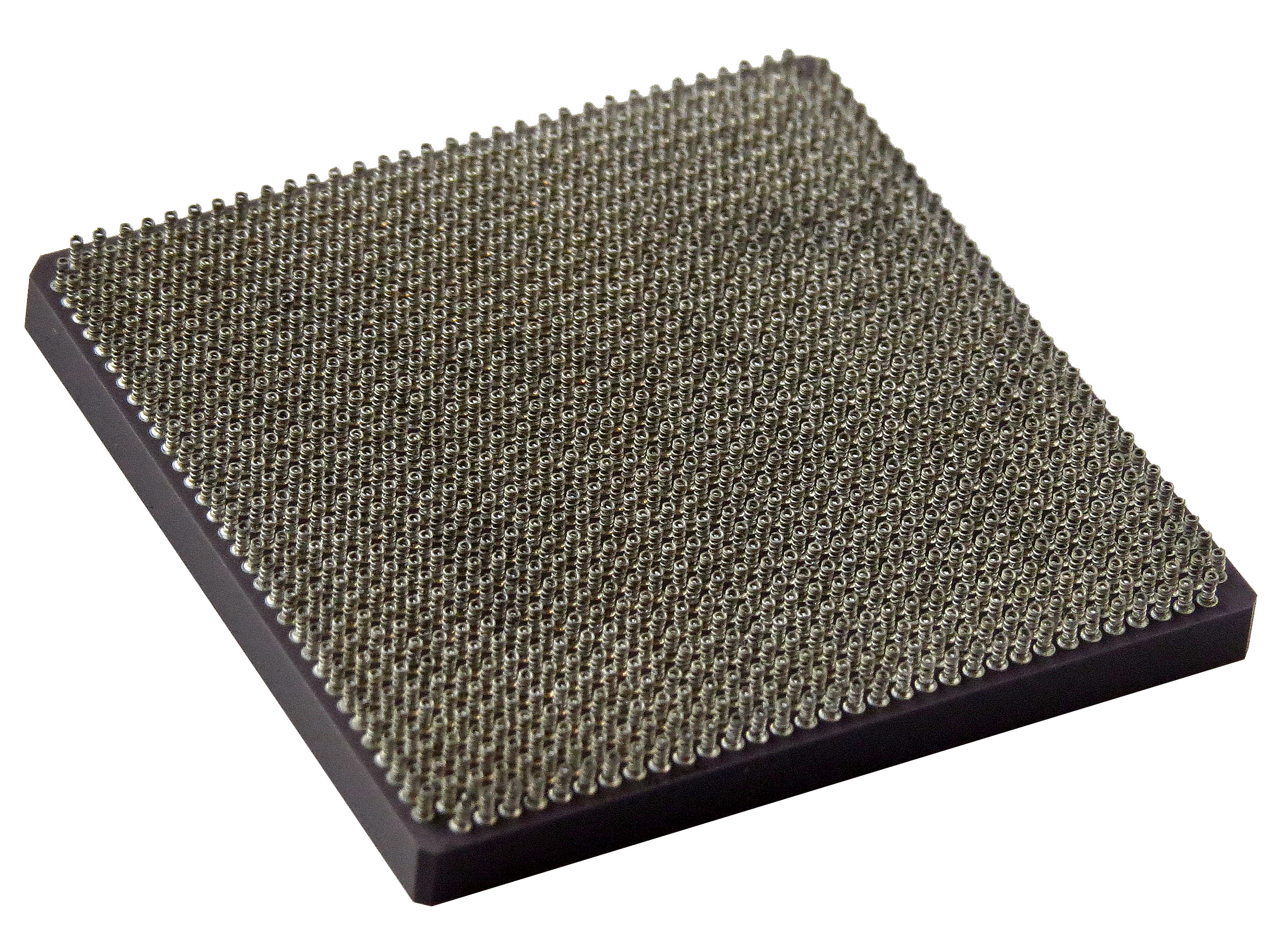

Photos: 1  2  3  4  5		 Tool Set
CG1152A
1272 36x36 1.0mm 37.5mm Inside CCGA1272T1.0-DC367D
Model		 CCGA1272T1.0A-DC367D
Model 		CCGA1272T1.0M-DC367D
Model		 Tool Set
CG1272A
1509 39x39 1.0mm 40mm Surface
Mount		 CCGA1509T1.0-DC396D
Model		 CCGA1509T1.0A-DC396D
Model		 CCGA1509T1.0M-DC396D
Model		 Tooling Set
CCGA1509A
1509 39x39 1.0mm 40mm CN Heat
Spreader		 CCGA1509T1.0-DC396CN
Model		 CCGA1509T1.0A-DC396CN
Model		 CCGA1509T1.0M-DC396CN
Model		 Tooling Set
CCGA1509CN
1657 41x41 1.0mm 42.5mm CN Heat
Spreader		 CCGA1657T1.0-DC417CN
Model		 CCGA1657T1.0A-DC417CN
Model		 CCGA1657T1.0M-DC417CN
Model		 Tooling Set
CCGA1657CN
1657 41x41 1.0mm 42.5mm Surface
Mount		 CCGA1657T1.0-DC417D
Model		 CCGA1657T1.0A-DC417D
Model		 CCGA1657T1.0M-DC417D
Model		 Tooling
1657 41x41 1.0mm 42.5mm Surface
Mount		 CCGA1657T1.0-DC416D
Model		 CCGA1657T1.0A-DC416D
Model		 CCGA1657T1.0M-DC416D
Model		 Tooling Set
CCGA1657B

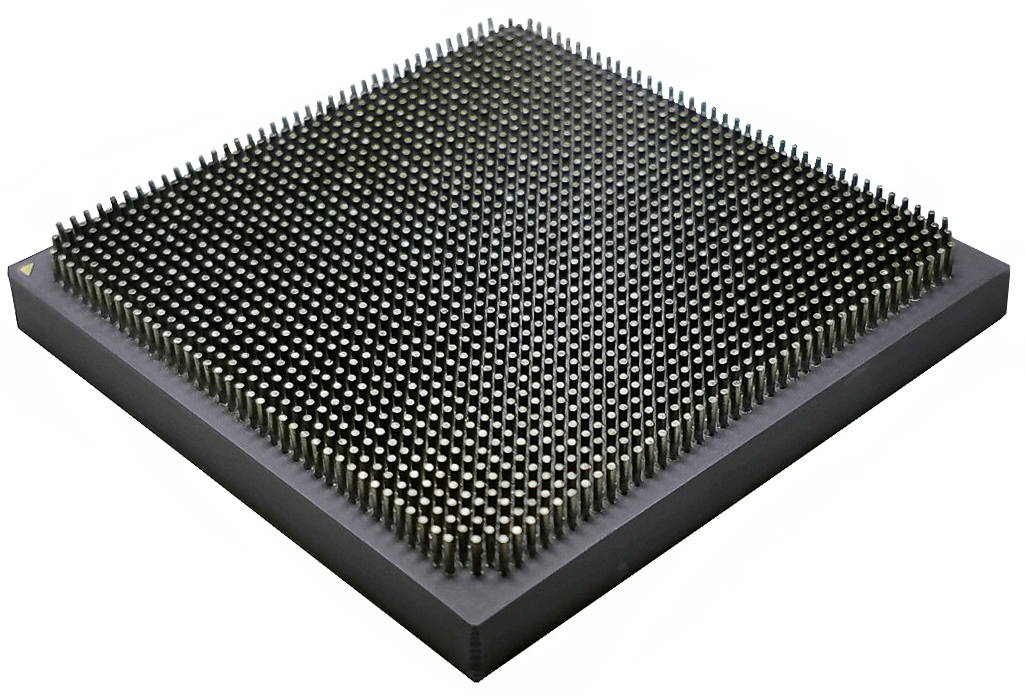

1752 42x42 1.0mm 45mm CN Heat
Spreader		 CCGA1752T1.0-DC427CN
Model		 CCGA1752T1.0A-DC427CN
Model CN •  Model CF
Photo		 CCGA1752T1.0M-DC427CN
Model CN		 Tool Set
CCGA1752CN
Optional: Heat-Spreaders   •   Custom packages and new designs: Aluminum-Models CCGA   •   Corner Bracket Supports: C7-BRACKET


Additional Ceramic CCGA Packagings
Columns Matrix Pitch Size (mm) Die
Location		 Pb80/Sn20
Cu Wrap Columns		 Pb90/Sn10
Plain Columns		 Micro-Coil
Spring		 Column
Attachment
Tooling
121 11x11 1.27mm 15mm Inside CCGA121T1.27-11x11
Model		 CCGA121T1.27A-11x11
Model		 CCGA121T1.27M-11x11
Model		 Tooling*
143 12x12 1.0mm 14.5mm Inside CCGA143T1.0-12x12
Model		 CCGA143T1.0A-12x12
Model		 - Tool Set
CG143A
165 11x15 1.27mm 21x25mm Inside - CCGA165T1.27-DC1115D - Tooling*
168 13x13 1.27mm 17x17mm Inside - CCGA168T1.27-DC137D - Tooling*
196 14x14 1.0mm 15mm Heat Spreader CCGA196T1.0-DC149D
Model		 CCGA196T1.0A-DC149D
Model		 CCGA196T1.0M-DC149D
Model		 Tooling*
255 16x16 1.27mm 21mm Surface CCGA255T1.27-D
Model		 CCGA255T1.27A-D
Model		 CCGA255T1.27M-D
Model		 Tooling*
255 16x16 1.27mm 21mm Surface CCGA255T1.27-CN
Model		 CCGA255T1.27A-CN
Model		 CCGA255T1.27M-CN
Model		 Tool Set
CCGA225CN
255 16x16 1.27mm 21mm Inside - CCGA255T1.27A-DC161D - Tooling*
256 16x16 1.0mm 16.4mm Ring Seal CCGA256T1.0 CCGA256T1.0 -
Model		 Tool Set
CCGA256A
323 18x18 1.0mm 20mm Inside CCGA323T1.0-18x18-D
Model		 CCGA323T1.0A-18x18-D
Model		 - Tool_Set
CCGA323B
337 27x27 1.27mm 35.56mm Inside - CCGA337T1.27-DC27_D - Tooling*
349 19x19
Depoulated
3x Corner		 1.27mm 25mm Inside CCGA349T1.27-DC197D - - Tooling*
360 19x19 1.27mm 25mm Surface CCGA360T1.27-D
Model		 CCGA360T1.27A-D
Model		 - Tool_Set
CCGA360A
360 19x19 1.27mm 25mm Inside - CCGA360T1.27A-DC198D - Tooling*
376 20x20 1.27mm 28mm Inside CCGA376-DC204D
Model		 CCGA376A-DC204D
Model		 - Tool_Set
CCGA376A
399 20x20 1.0mm 21mm Inside CCGA399T1.0-DC207D
Model		 CCGA399T1.0A-DC207D
Model		 CCGA399T1.0M-DC207D
Model		 Tool_Set
CCGA399A
429 21x21 1.27mm 27mm Under
Seal Ring		 CCGA429T1.27-21x21
Model		 CCGA429T1.27A-21x21
Model		 - Tooling*
441 17x26 1.0mm
0.0394"		 18.21x
27.94mm		 Inside CCGA441T1.0-17x26
Model		 - - Tool Set
CCGA441
468 22x22
Depoulated
3x3 Center		 1.27mm 31mm Inside CCGA468T1.27-DC22xD
Honeywell		 - - Tooling*
472 22x22 1.27mm 29mm Inside CCGA472T1.27-DC226D
Model		 CCGA472T1.27A-DC226D
Model		 CCGA472T1.27M-DC226D
Model		 Tool_Set
CCGA472A
472 22x22 1.27mm 29mm Inside CCGA472T1.27-DC220D
Atmel		 CCGA472T1.27A-DC220D
Atmel		 - Tooling*
483 22x22 1.0mm 23mm Inside CCGA483T1.0-DC225D
 Model		 CCGA483T1.0A-DC225D
 Model		 CCGA483T1.0M-DC225D
Model		 Tool Set
CCGA483A
483 22x22 1.0mm 23mm Inside CCGA483T1.0E-DC225D
Special 1.6mm Column
Model		 - - Tool Set
CCGA483E
484 22x22 1.27mm 29mm Inside CCGA484T1.27-DC229D
Aeroflex		 - - Tooling*
517 23x23 1.27mm 32.5mm Surface
Mount		 CCGA517T1.27-DC236D CCGA517T1.27A-DC236D - Tooling*
517 23x23 1.27mm 31mm Surface
Mount		 CCGA517T1.27-DC237D CCGA517T1.27A-DC237D - Tooling*
529 23x23 1.0mm 24mm Under
Seal Ring		 CCGA576T1.0H-23x23-RU
Model		 CCGA529T1.0A-23x23-RU
Model		 - Tooling
CCGA529RU
564 24x24 1.27mm 31mm Inside CCGA564T1.27-DC24xD CCGA564T1.27A-DC24xD - Tooling*
576 24x24 1.0mm 25mm Surface Mount
Seal Ring		 CCGA576T1.0-24x24-RU
Model		 CCGA576T1.0A-24x24-RU
Model		 - Tooling*
576 28x28 1.27mm 37.5mm Inside CCGA576T1.27-DC284D
Model		 - - Tool_Set
CCGA576A
576 28x28 1.27mm 37.5mm Inside CCGA576T1.27-28x28
Model		 CCGA576T1.27A-28x28
Model		 - Tool_Set
CCGA576A
598 31x37 2.0mm 63.5x75mm Sensor
Camera		 CCGA598T2.0-IMX661
Model		 - CCGA598T2.0M-IMX661
Model		 Tooling*
624 25x25 1.27mm 32.5mm Inside CCGA624T1.27-DC254D
Model		 CCGA624T1.27A-DC254D
Model		 CCGA624T1.27M-DC254D
Model		 Tool Set
CCGA624A
624 25x25 1.27mm 32.5mm FC Seam-Seal CCGA624T1.27-DC254D
Model		 - - Tool Set
CCGA624C
CCGA624D
624 25x25 1.27mm 32.5mm Under
Heat Spreader		 - CCGA624T1.27A-D
Model		 - Tool Set
CCGA624X
625 25x25 1.0mm 29mm Inside CCGA625T1.0-D
Model		 - - Tool Set
CCGA625A
625 25x25 1.0mm 29mm Inside CCGA625T1.0-DC258D
Model		 CCGA625T1.0A-DC258D
Model		 CCGA625T1.0M-DC258D
Model		 Tool Set
CCGA625A
896 30x30 1.0mm 31mm Surface
Mount		 CCGA896T1.0-DC308D
Model		 CCGA896T1.0A-DC308D
Model		 CCGA896T1.0M-DC308D
Model		 Tool Set
CCGA896C
1024 32x32 1.0mm 35mm Surface Mount
Optional
Heat Spreader		 CCGA1024T1.0-DC328D
Model		 CCGA1024T1.0A-DC328D
Model		 CCGA1024T1.0M-DC328D
Model		 Tooling*
1077 33x33 1.27mm 42.5mm Surface
Mount		 CCGA1077T1.27-D
Model		 CCGA1077T1.27A-D
Model		 -
-		 Tooling*
1088 33x33 1.27mm 42.5mm Surface
Mount		 CCGA1088T1.27-D
Model		 CCGA1088T1.27A-D
Model		 - Tooling Set
CCGA1088A
1136 34x34 1.0mm 35mm Under
Seal Ring		 CCGA1136T1.0-DC342D
Model		 CCGA1136T1.0A-DC342D
Model		 - Tooling*
1136 34x34 1.0mm 35mm Surface Mount
Under Lid		 CCGA1136T1.0-DC347D
Model		 CCGA1136T1.0A-DC347D
Model		 - Tool Set
CG1136A
1140 34x34 1.0mm 35mm Surface
Mount		 CCGA1140T1.0-DC341CF
 Model		 CCGA1140T1.0A-DC341CF
 Model		 CCGA1140T1.0M-DC341CF
Model		 Tooling Set
CG1140CF
1140 34x34 1.0mm 35mm Surface
Mount		 CCGA1140T1.0-DC341D
 Model		 CCGA1140T1.0A-DC341D
 Model		 CCGA1140T1.0M-DC341D
Model		 Tooling
1144 34x34 1.0mm 35mm CN Heat
Spreader		 CCGA1144T1.0-DC348CN
 Model		 CCGA1144T1.0A-DC348CN
 Model		 CCGA1144T1.0M-DC348CN
Model		 Tool Set
CG1144CN
1152 34x34 1.0mm 35mm Inside CCGA1152T1.0-34x34H
Honeywell
 - - Tool Set
CCGA1152H
1156 34x34 1.0mm 35mm Surface Mount
Under Lid		 CCGA1156T1.0-DC349D
Model		 CCGA1156T1.0A-DC349D
Model		 - Tooling*
1247 31x41 1.0mm 32.5x42.5mm Surface Mount
Under Heat Spreader		 - CCGA1247T1.0A-31x41-D
Model		 - Tooling*
1509 39x39 1.0mm 40mm Surface
Mount		 CCGA1509T1.0-DC396D
Model		 CCGA1509T1.0A-DC396D
Model		 CCGA1509T1.0M-DC396D
Model		 Tooling Set
CCGA1509A
1509 39x39 1.0mm 40mm CN Heat
Spreader		 CCGA1509T1.0-DC396CN
Model		 CCGA1509T1.0A-DC396CN
Model		 CCGA1509T1.0M-DC396CN
Model		 Tooling Set
CCGA1509CN
1588 40x40 1.27mm 52.5mm Surface
Mount		 CCGA1588T1.27-DC407F CCGA1588T1.27A-DC407F - Tooling*
1657 41x41 1.0mm 42.5mm CN Heat
Spreader		 CCGA1657T1.0-DC417CN
Model		 CCGA1657T1.0A-DC417CN
Model		 CCGA1657T1.0M-DC417CN
Model		 Tooling Set
CCGA1657CN
1657 41x41 1.0mm 42.5mm Under
Seal Ring		 CCGA1657T1.0-DC416D
Microsemi
Model		 CCGA1657T1.0A-DC416D
Microsemi
Model		 CCGA1657T1.0M-DC416D
Microsemi
Model		 Tool Set
CCGA1657B
1752 42x42 1.0mm 45mm CN Heat
Spreader		 CCGA1752T1.0-DC427CN
Model		 CCGA1752T1.0A-DC427CN
Model CN •  Model CF
Photo		 CCGA1752T1.0M-DC427CN
Model CN		 Tool Set
CCGA1752CN

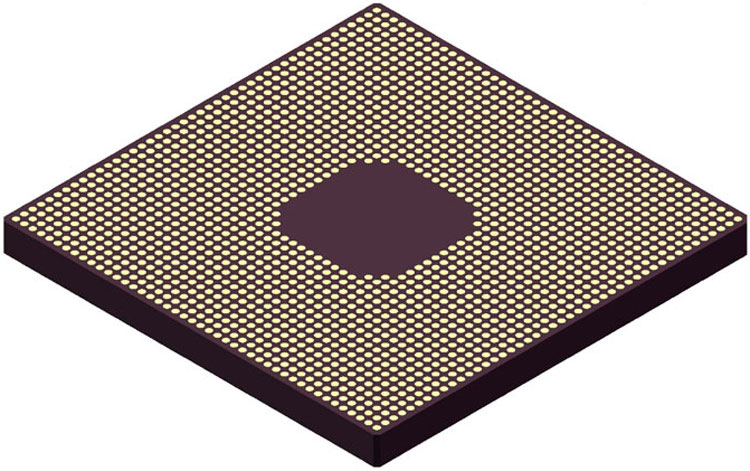

1752 44x44 1.27mm 57.0mm Inside CCGA1752T1.27-44x44
Model		 - - Tooling*
1825 43x43 1.0mm 46.0mm
2.3mm Thick		 Surface
Mount		 CCGA1825T1.0-43x43
Ø 0.60mm Pads
Ø 0.38mm Columns		 - - Tooling*
2577 51x51 1.0mm 52.5mm Surface
Mount		 CCGA2577T1.0-DC517F CCGA2577T1.0A-DC517F CCGA2577T1.0M-DC517F Tooling*
Custom packages and new designs: Aluminum-Models CCGA

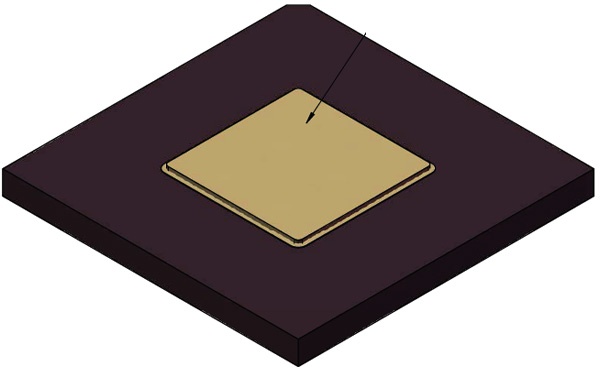

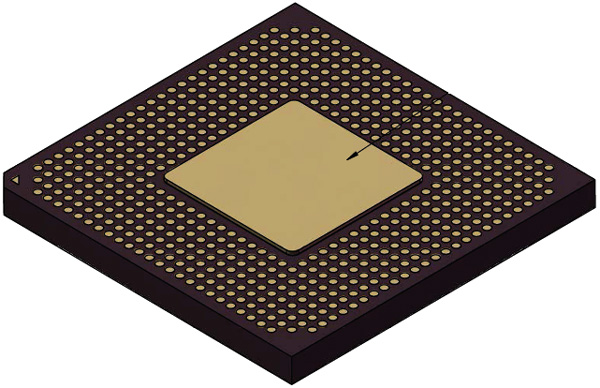

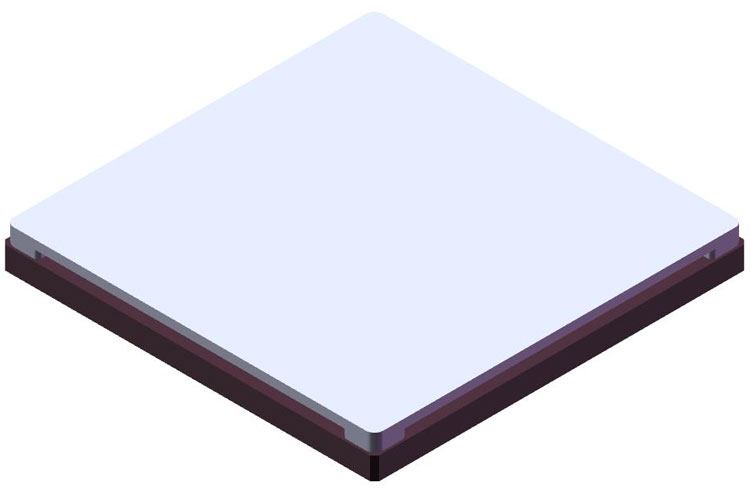

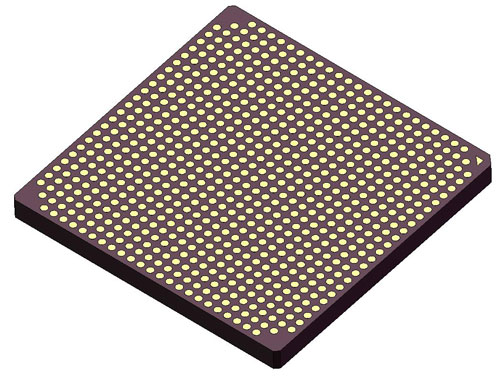

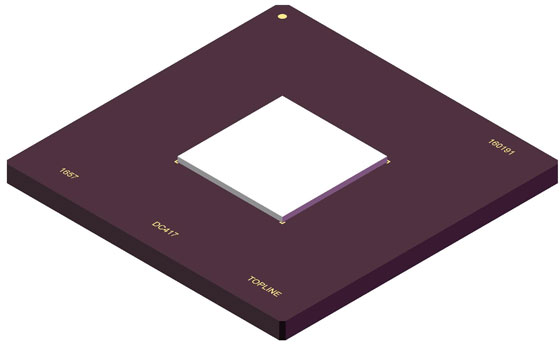

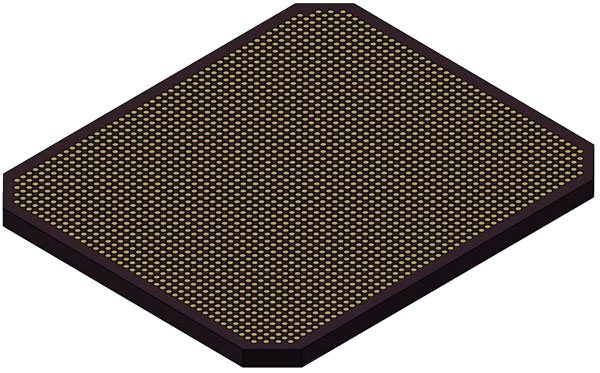

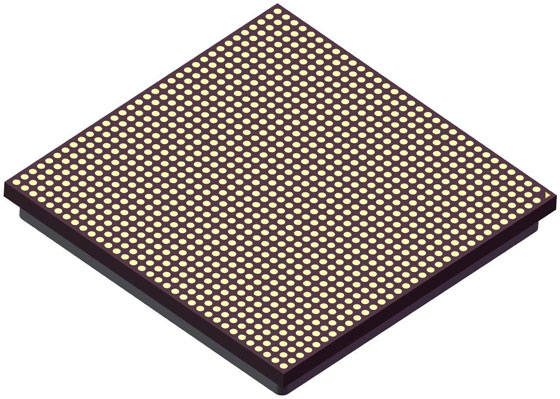

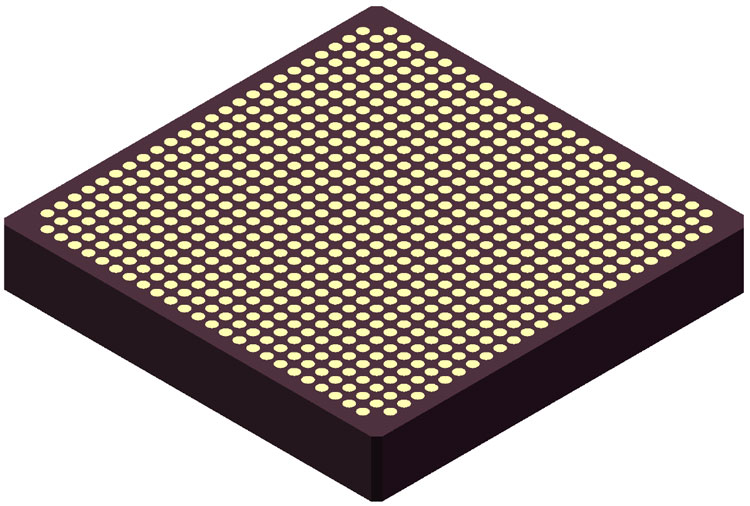

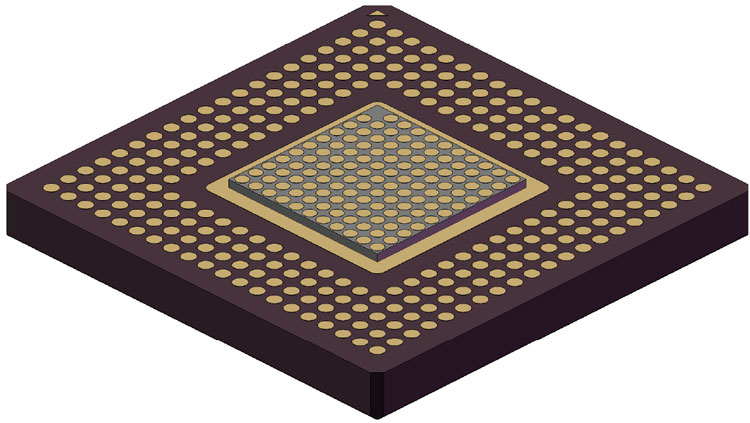

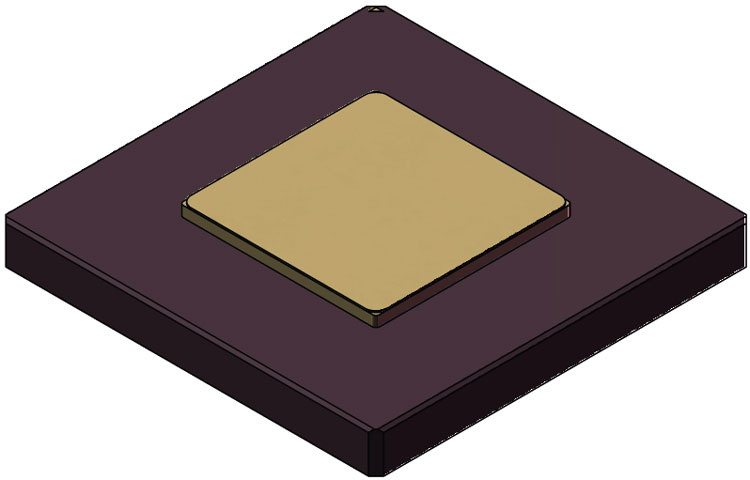

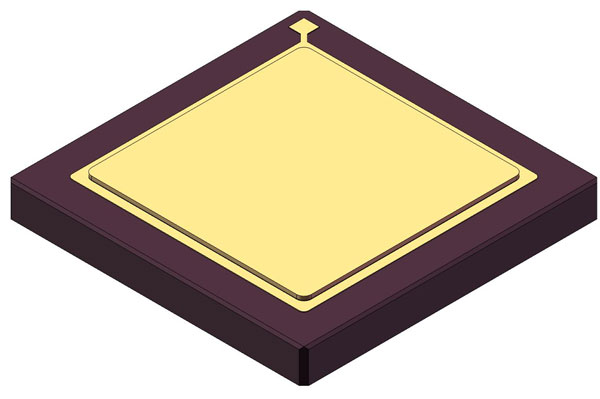

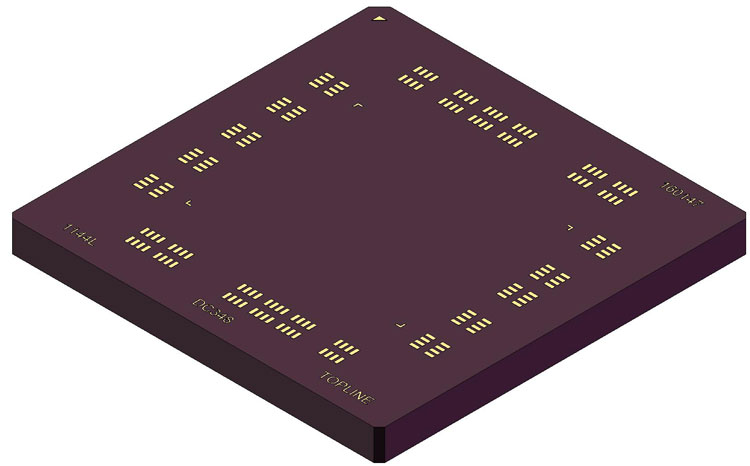

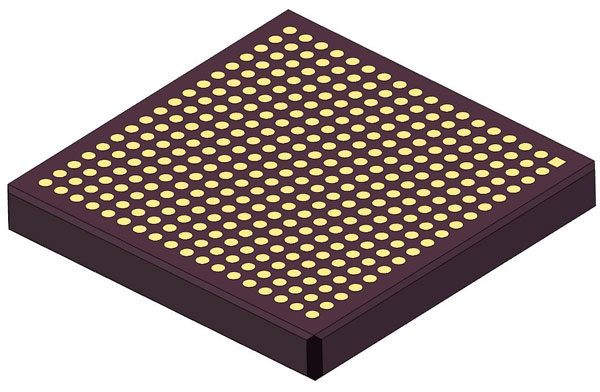

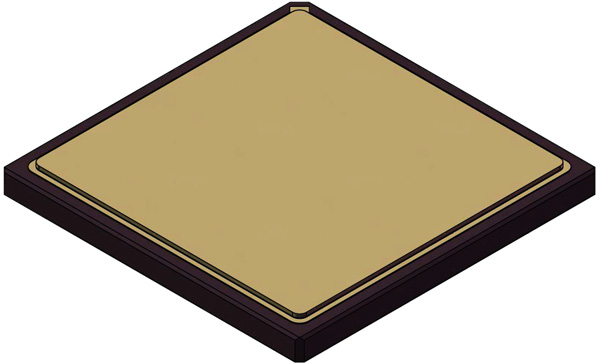

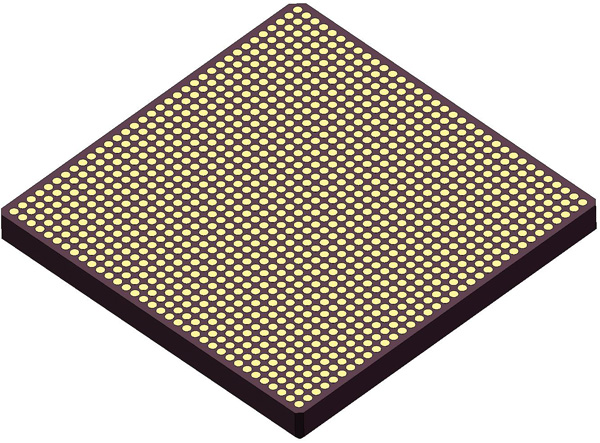

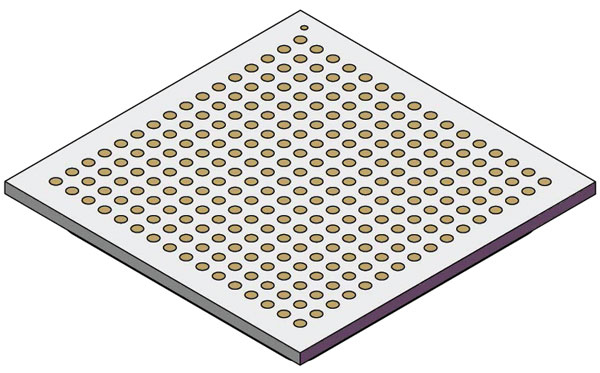

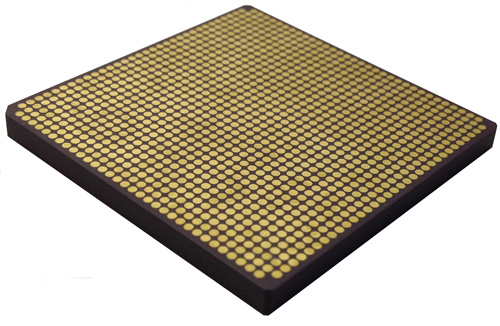

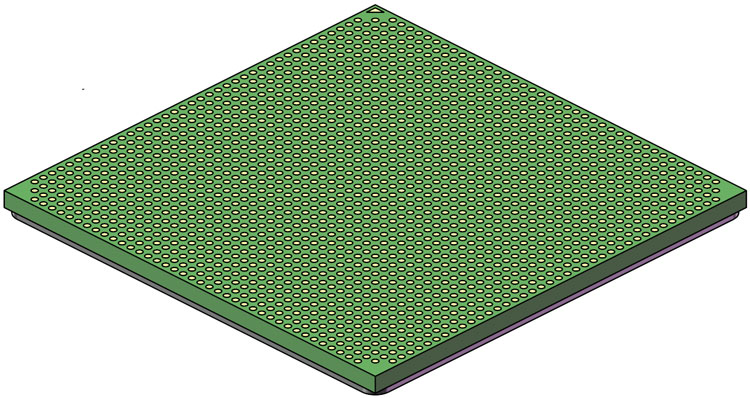

CLGA - Ceramic Land Grid Array with Daisy Chain
Click to Enlarge
Columns Matrix Pitch Package
Size (mm)		 Part Number Die
Location		 Heat
Sink		 Pad
ØDia		 SolidWorks
Model		 Images Column
Attachment
Tooling
121 11x11 1.27mm 15x15mm CLGA121T1.27-11x11 Inside No Ø0.86mm
33mil		 Model Top Bottom Tooling*

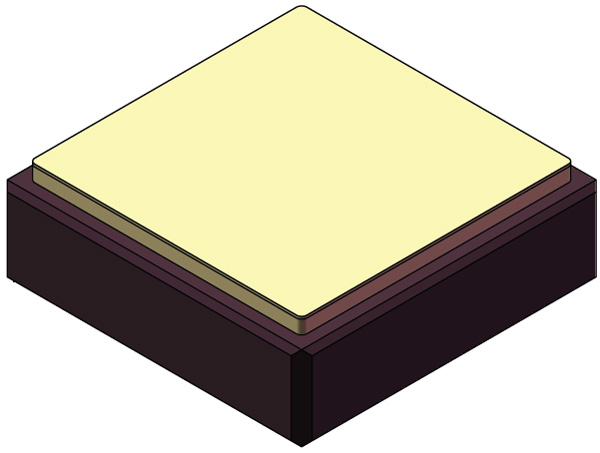

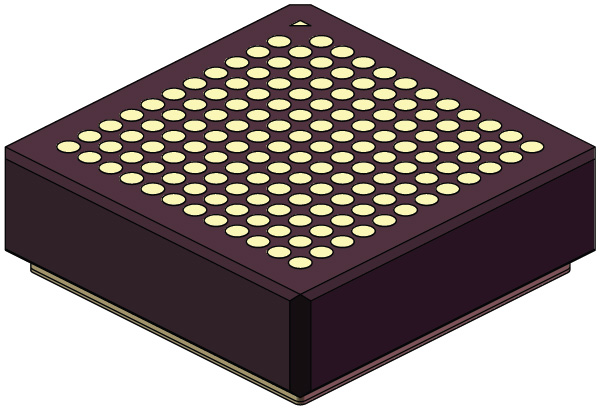

143 12x12 1.0mm 14.5x14.5mm CLGA143T1.0-12x12 Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG143A
165 11x15 1.27mm 21x25mm CLGA165T1.27-DC1115D Inside No Ø0.8mm
31mil		 Model Top Bottom Tooling*
168 13x13 1.27mm 17x17mm CLGA168T1.27-DC137D Inside No Ø0.8mm
31mil		 Model Top Bottom Tooling*
196 14x14 1.0mm 15x15mm CLGA196T1.0-DC149D Inside No Ø0.6mm
24mil		 Model Top Bottom Tooling*
256 16x16 0.8mm 14.5x14.5mm CLGA256T.8-16x16 Inside Yes Ø0.45mm
18mil		 Model Top Bottom Tooling_Set
CBGA256T.8B
323 20x20 1.0mm 20mm CLGA323T1.0-18x18D Inside No Ø0.68mm
26.8mil		 Model Top Bottom Tool_Set
CCGA323B
376 20x20 1.0/1.27mm 28mm CLGA376-DC204D Inside No Ø0.889mm
35mil		 Model Top Bottom Tool_Set
CCGA376A
399 20x20 1.0mm 21mm CLGA399T1.0-DC207D Inside No Ø0.6mm
24mil		 Model Top Bottom Tool_Set
CCGA399A
429 21x21 1.27mm 27x27mm CLGA429T1.27-21x21 Under
Seal Ring		 Yes Ø0.86mm
33mil		 Model Top Bottom Tooling*
441 17x26 1.0mm
0.0394"		 18.21x
27.94mm		 CLGA441T1.0-17x26 Inside No Ø0.71mm
28mil		 Model Top Bottom Tool Set
CCGA441
468 22x22 1.27mm 31x31mm CLGA468T1.27-DC22xD Inside No Ø0.86mm
33mil		 Model Top Bottom Tooling*
472 22x22 1.27mm 29x29mm CLGA472T1.27-DC226D Inside No Ø0.80mm
31mil		 Model Top Bottom Tool_Set
CCGA472A
483 22x22 1.0mm 23mm CLGA483T1.0-DC225D Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CCGA483A
576 24x24 1.0mm 25mm CLGA576T1.0-24x24-RU Under
Seal Ring		 Yes Ø0.45mm
18mil		 Model Top Bottom Tooling*
576 28x28 1.27mm 37.5mm CLGA576T1.27-DC284D Inside
Cavity Down		 Yes Ø0.86mm
33mil		 Model Top Bottom Tool Set
CCGA576A
576 28x28 1.27mm 37.5mm CLGA576T1.27-28x28 Inside
Cavity Down		 Yes Ø0.86mm
33mil		 Model Top Bottom Tool Set
CCGA576A
624 25x25 1.27mm 32.5mm CLGA624T1.27-DC254D Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CCGA624A
625 25x25 1.0mm 29mm CLGA625T1.0-DC258D Inside No Ø0.75mm
29.5mil		 Model Top Bottom Tool Set
CCGA625A
672 26x26 1.27mm 35mm CLGA672T1.27-26x26 Inside No Ø0.9mm
35mil		 Model Top Bottom Tool Set
CCGA624
717 27x27 1.27mm 35mm CLGA717T1.27-DC275D Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CCGA717
896 30x30 1.0mm 31mm CLGA896T1.0-DC308D Under
Seal Ring		 Yes Ø0.8mm
31mil		 Model Top Bottom Tool Set
CCGA896D
1088 33x33 1.27mm 42.5mm CLGA1088T1.27-D Surface Yes Ø0.86mm
34mil		 Model Top Bottom Tooling Set
CCGA1088A
1136 34x34 1.0mm 35mm CLGA1136T1.0-DC342D Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG1136A
1140 34x34 1.0mm 35mm CLGA1140T1.0-DC341D Surface No Ø0.8mm
31mil		 Model Top Bottom Tooling*
1144 34x34 1.0mm 35mm CLGA1144T1.0-DC348D Surface No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG1144A
1144 34x34 1.0mm 35mm CLGA1144T1.0-DC348CN Surface Yes Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG1144CN
1152 34x34 1.0mm 35mm CLGA1152T1.0-DC346D Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG1152A
1156 34x34 1.0mm 35mm CLGA1156T1.0-DC349D Inside No Ø0.8mm
31mil		 Model Top Bottom Tooling*
1221 35x35 1.0mm 37.5mm CLGA1221T1.0-35x35-D Inside No Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG1221A
1247-1271 31x41 1.0mm 32.5x42.5mm CLGA1247T1.0-31x41D Inside Yes Ø0.8mm
31mil		 Model Top Bottom Tooling*
1272 36x36 1.0mm 37.5mm CLGA1272T1.0-DC367D Inside No Ø0.8mm
31mil		 Model Top Bottom Tooling*
1509 39x39 1.0mm 40mm CLGA1509T1.0-DC396K Under
Seal Ring		 No Ø0.8mm
31mil		 Model Top Bottom Tooling Set
CCGA1509A
1509 39x39 1.0mm 40mm CLGA1509T1.0-DC396CN CN
Heat Sink		 No Ø0.8mm
31mil		 Model Top Bottom Tooling Set
CCGA1509CN
1657 41x41 1.0mm 42.5mm CLGA1657T1.0-DC417 Without No Ø0.8mm
31mil		 Model Top Bottom Tooling*
1657 41x41 1.0mm 42.5mm CLGA1657T1.0-DC417D Surface No Ø0.8mm
31mil		 Model Top Bottom Tooling*
1657 41x41 1.0mm 42.5mm CLGA1657T1.0-DC417K Under
Seal Ring		 Yes Ø0.8mm
31mil		 Model Top Bottom Tooling*
1657 41x41 1.0mm 42.5mm CLGA1657T1.0-DC417CN CN
Heat Sink		 Yes Ø0.8mm
31mil		 Model Top Bottom Tooling Set
CCGA1657CN
1657 41x41 1.0mm 42.5mm CLGA1657T1.0-DC416D Inside Yes Ø0.8mm
31mil		 Model Top Bottom Tooling Set
CG1657B
1752 44x44 1.27mm 57mm CLGA1752T1.27-44x44 Inside No Ø0.9mm
35mil		 Model Top Bottom Tooling*
1752 42x42 1.0mm 45mm CLGA1752T1.0-DC427D Surface No Ø0.8mm
31mil		 Model Top Bottom Tooling*
1752 42x42 1.0mm 45mm CLGA1752T1.0-DC427CN Surface Yes Ø0.8mm
31mil		 Model Top Bottom Tooling*
2400 50x48 X0.036"
Y0.039"		 47.5mm PMN2400A Inside No X0.022"
Y0.031"		 Model Top Bottom Tool Set
CG2400A
2460 54x46 1.0mm 57x49mm CLGA2460T1.0-46x54 Surface Yes Ø0.8mm
31mil		 Model Top Bottom Tool Set
CG2460A


Custom packages and new designs: Aluminum-Models LGA-CCGA






LGA - Plastic Land Grid Array with Daisy Chain
Click to Enlarge Click to Enlarge
Columns Matrix Pitch Package
Size (mm)		 Part Number Die
Location		 Heat
Sink		 Pad
Material		 Pad
ØDia		 SolidWorks
Model		 Images Column
Attachment
Tooling
1152 34x34 1.0mm 35mm LGA1152T1.0G-DC344D Inside Dome
Cover		 NiAu
Cu		 Ø0.5mm
20mil		 Model Top  Bottom Tooling*
1738 42x42 1.0mm 35mm LGA1738T1.0G20-DC426D Inside Dome
Cover		 NiAu
Cu		 Ø0.5mm
20mil		 Model Top  Bottom Tooling*
1752 42x42 1.0mm 42.5mm LGA1752T1.0G20-DC427D Inside Dome
Cover		 NiAu
Cu		 Ø0.5mm
20mil		 Model Top  Bottom Tooling*
1752 42x42 1.0mm 42.5mm LGA1752T1.0G28-DC427D Inside Dome
Cover		 NiAu
Cu		 Ø0.71mm
28mil		 Model Top  Bottom Tooling*


Custom packages and new designs: Aluminum-Models LGA-CCGA




Plastic Column Grid Array with Daisy Chain
Click to Enlarge Click to Enlarge
Columns Matrix Pitch Package
Size (mm)		 Part Number Fillet
Alloy		 Heat
Sink		 Column Type Column
ØDia		 SolidWorks
Model		 Images Column
Attachment
Tooling
208 17x17 1.27mm 31mm PCGA208T1.27-DC171D Sn63 PBGA
Mold
Cap		 Pb80Sn20 Ø0.38mm
15mil		 Model Top Bottom Tooling*
458 30x30 1.0mm 31mm HSBGA458T1.0 Sn63 PBGA
Mold
Cap		 Pb90Sn10 Ø0.25mm
10mil		 Model Top Bottom Tool Set
HSBGA458A
484 22x22 1.0mm 23mm CG-PBGA484T1.0-22x22 Sn63 PBGA
Mold
Cap		 Pb80Sn20 Ø0.30~.38mm
12~15mil		 Model Top Bottom Tooling*
484 22x22 1.0mm 23mm CG-PBGA484T1.0A-22x22 Sn63 PBGA
Mold
Cap		 Pb90Sn10 Ø0.30~.38mm
12~15mil		 Model Top Bottom Tooling*
484 22x22 1.0mm 23mm CG-PBGA484T1.0M-22x22 Sn63 PBGA
Mold
Cap		 Micro-Coil
Spring
SnPb or
Ni-Gold		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
771 30x33 1.17mm
1.09mm		 37.5mm WCGA771
Xeon		 Sn63 Dome
Cover		 Pb80Sn20
Cu Wrap
3.6mm Long
0.140"~0.150"		 Ø0.50mm
20mil		 Model Top Bottom Tool Set
WCGA771A
896 30x30 1.0mm 31mm CG-FC896T1.0-DC308D Sn63 Dome
Cover		 Pb80Sn20
Cu Wrap		 Ø0.38mm
15mil		 Model Top Bottom Tooling*
896 30x30 1.0mm 31mm CG-FC896T1.0M-DC308D Sn63 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
1152 34x34 1.0mm 35mm CG-FC1152T1.0-DC344D Sn63 Dome
Cover		 Pb80Sn20
Cu Wrap		 Ø0.38mm
15mil		 Model Top Bottom Tooling*
1152 34x34 1.0mm 35mm CG-FC1152T1.0A-DC344D Sn63 Dome
Cover		 Pb90Sn10
Cu Wrap		 Ø0.38mm
15mil		 Model Top Bottom Tooling*
1152 34x34 1.0mm 35mm CG-FC1152T1.0M-DC344D Sn63 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
1152 34x34 1.0mm 35mm CG-FC1152T1.0G-DC344D SnPb Dome
Cover		 Micro-Coil
Spring
NiAu		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
1152 34x34 1.0mm 35mm CG-FCG1152T1.0G-DC344D SAC305 Dome
Cover		 Micro-Coil
Spring
NiAu		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
1156 34x34 1.0mm 35mm CG-FF1156 SnPb Flat
Cover		 Pb80/Sn20 Ø0.38mm
15mil		 Model Top Bottom Tool Set 1156A
1738 42x42 1.0mm 42.5mm CG-FC1738T1.0M-DC426D Sn63 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.4mm
16mil		 Model Top Bottom Tooling*
1738 42x42 1.0mm 42.5mm CG-EF1738T1.0G-DC426D Sn63 Flat
Cover		 Micro-Coil
Spring
NiAu		 Ø0.4mm
16mil		 Model Top Bottom Tooling*
1752 42x42 1.0mm 42.5mm CG-FC1752T1.0-DC427D Sn63 Dome
Cover		 Pb80/Sn20
Cu Wrap		 Ø0.38mm
15mil		 Model Top Bottom Tooling*
1752 42x42 1.0mm 42.5mm CG-FC1752T1.0M-DC427D Sn63 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
1752 42x42 1.0mm 42.5mm CG-FC1752T1.0G-DC427D Sn63 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
1752 42x42 1.0mm 42.5mm CG-FCG1752T1.0G-DC427D SAC305 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.40mm
16mil		 Model Top Bottom Tooling*
2104 46x46 1.0mm 52.5mm CG-FC2104T1.0-DC466D Sn63 Dome
Cover		 Pb90/Sn10
Cu Wrap		 Ø0.38mm
16mil		 Model Top Bottom Tooling*
2104 46x46 1.0mm 52.5mm CG-FCG2104T1.0G-DC466D SAC305 Dome
Cover		 Micro-Coil
Spring
SnPb		 Ø0.40mm
16mil		 Model Top Bottom Tooling*


Custom packages and new designs: Aluminum-Models LGA-CCGA




Silicon Substrate - Wafer Level Package
Column Grid Array with Daisy Chain
Enlarge Corner View Enlarge Corner View

Columns Matrix Pitch Package
Size (mm)		 Part Number Fillet
Alloy		 Heat
Sink		 Column
Type		 Column
ØDia		 SolidWorks
Model		 Images Column
Attachment
Tooling
2500 50x50 0.5mm 25mm CG2500T.5-DC508D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*
2916 54x54 0.5mm 27mm CG2916T.5-DC548D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*
3844 62x62 0.5mm 31mm CG3844T.5-DC628D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*
4900 70x70 0.5mm 35mm CG4900T.5-DC708D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*
6400 80x80 0.5mm 40mm CG6400T.5-DC808D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*
10000 100x100 0.5mm 50mm CG10000T.5-DC100D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*
14400 120x120 0.5mm 60mm CG14400T.5-DC120D Sn63 Dome
Cover
Optional		 Copper
OFHC		 Ø0.125mm
5mil		 Model Top Bottom Tooling*

More CCGA on Silicon


CCGA Part Number System

    CCGA         1752         T         1.0         A     −     DC427         CN
Package Type Nbr Pins Tray Pitch Column Type   Daisy Chain Option
CCGA
Ceramic Column
Grid Array

CLGA
Ceramic Land
Grid Array

CG-EF
Plastic Grid Array
Flat Heat Spreader

CG-FC
Plastic Grid Array
Dome Heat Spreader		 I/O Pads T = Tray

 1.0 = 1.0mm
1.27 = 1.27mm

 Cu Wrap Column Pb80/Sn20
Blank = Ø 0.5mm x 2.2mm
E = Ø 0.5mm x 1.6mm

Cu Braided Column Pb80/Sn20
B = Ø 0.5mm x 2.2mm
D = Ø 0.3mm x 2.2mm
W = Ø 0.5mm x 1.6mm
Y = Ø 0.3mm x 1.6mm

Cu Braided Column Pb90/Sn10
H = Ø 0.5mm x 2.2mm

Cu Braided Column In50/Pb50
N = Ø 0.5mm x 2.2mm

Cu Braided Column Lead Free Sn/Sb
F = Ø 0.5mm x 2.2mm

Plain Column Pb90/Sn10
A = Ø 0.5mm x 2.2mm

MCS - Micro Coil Spring
M = Tin/Lead
G = Gold Plated

Solid Copper Columns
C8 = 8mil Cu (Pb Plated)
   Net List
Drawing Number		 D=Dummy Die
Under the Lid

CF=Flat Heat Spreader
Attached to Die

CN= AlSiC Pedestal
Heat Spreader



Kelvin DCR DC Resistance Test Method   •   NASA GSFC-STD-6001   •   PWB Land Pattern
MIL883K - TM2038 Column Pull Test

ECCN: EAR99 Export Administration Regulations (EAR)
HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
ITAR: Solder columns and dummy daisy chain CCGA are not restricted.



Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.




TopLine Corporation
95 Highway 22 W
Milledgeville, GA 31061, USA
Toll Free USA/Canada (800) 776-9888
International: 1-478-451-5000
Email: sales@topline.tv

 ©2025 TopLine. All Rights Reserved.

Home
