Secure Transport and Storage System
for CCGA - Column Grid Array

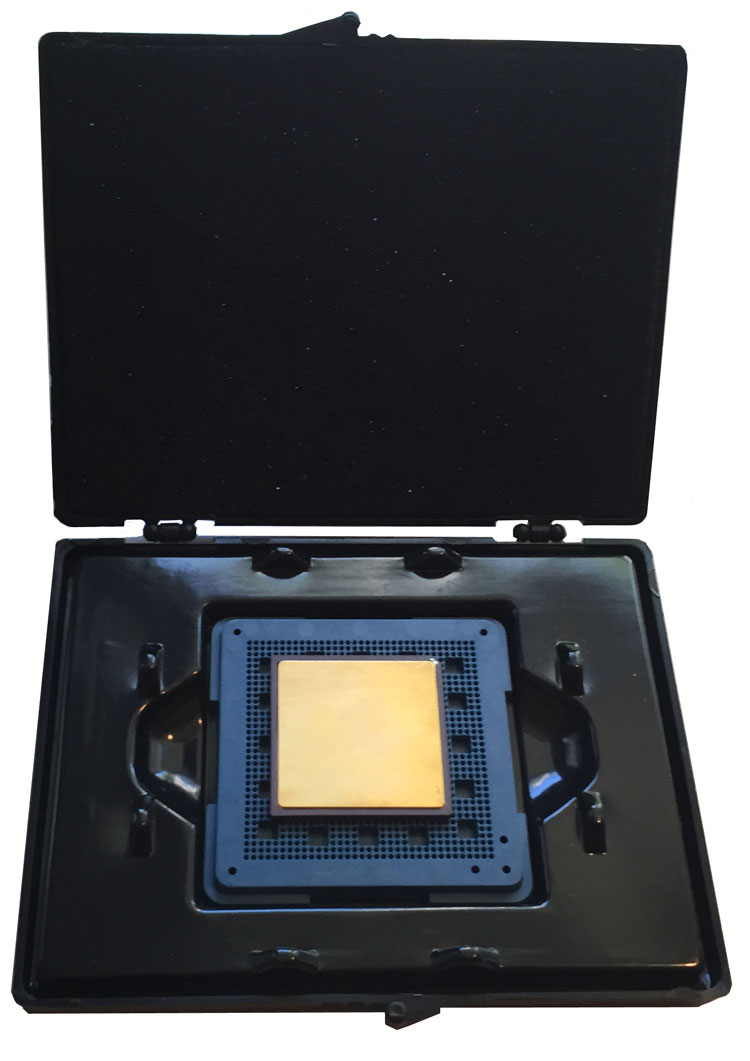

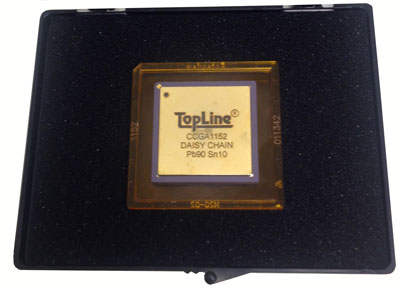

About EC1 Series CCGA Tray Box Sets

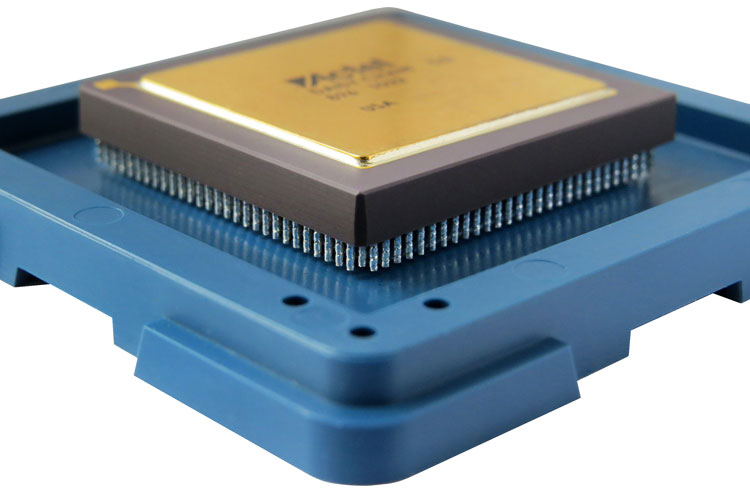

Carrier for transport and storage of individual CCGA package. Columns are fully protected in the carriers positioned in a hinged plastic case. A soft layer of conductive foam adds gentle compression from the top and bottom to hold the CCGA in place during transport. Plenty of room on top side of hinged box for customer/part number label. Select four different styles to meet your needs. Custom solutions for odd-form components available.
  Features
  • Columns up to 2401 Columns
  • Box ID Size: 4.5" x 3.5" x 0.5"
  • Substrate size: Up to 45mm
  • Pitch 1.0mm and 1.27mm
  • Custom sizes and pitch available

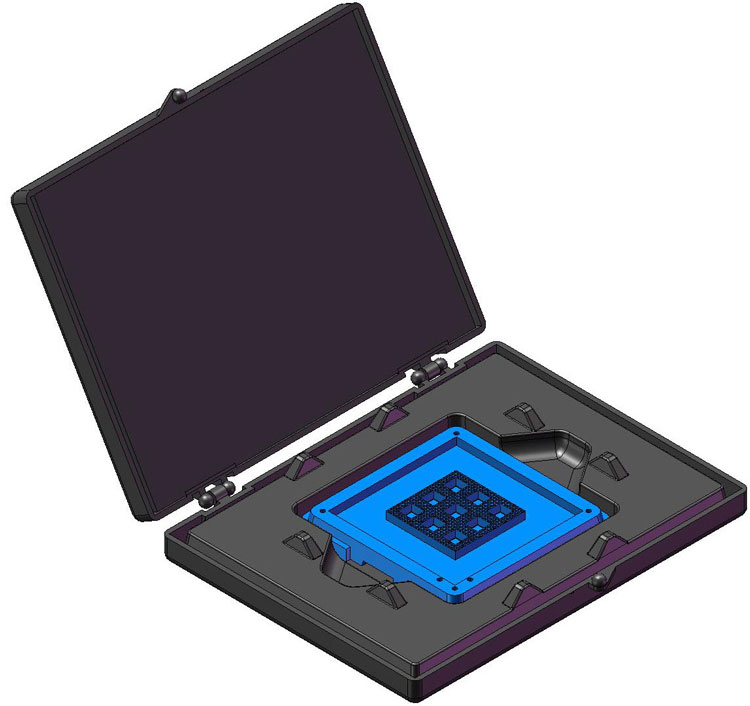

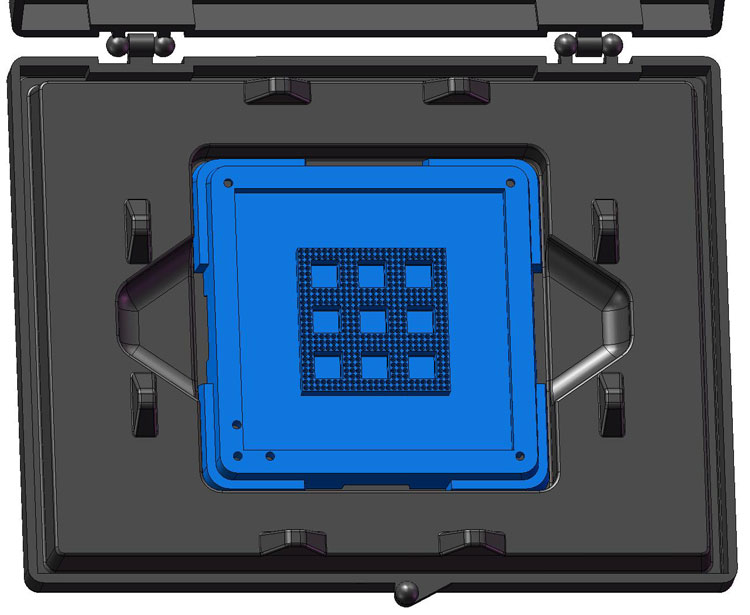

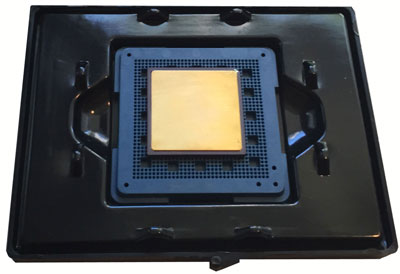

  • Style 1
    1.0mm Blue Carrier
    Tray Box Set
     1  •   2  •   3  •   4

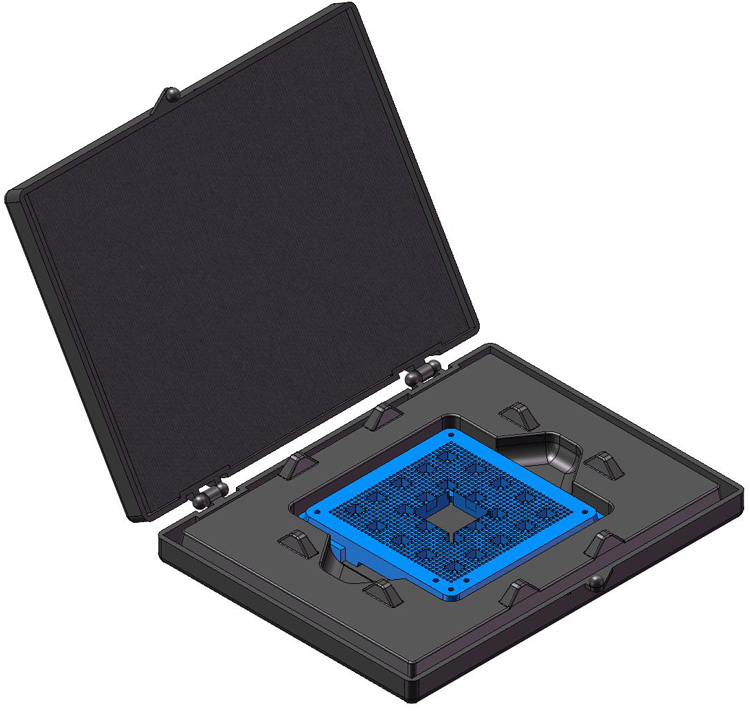

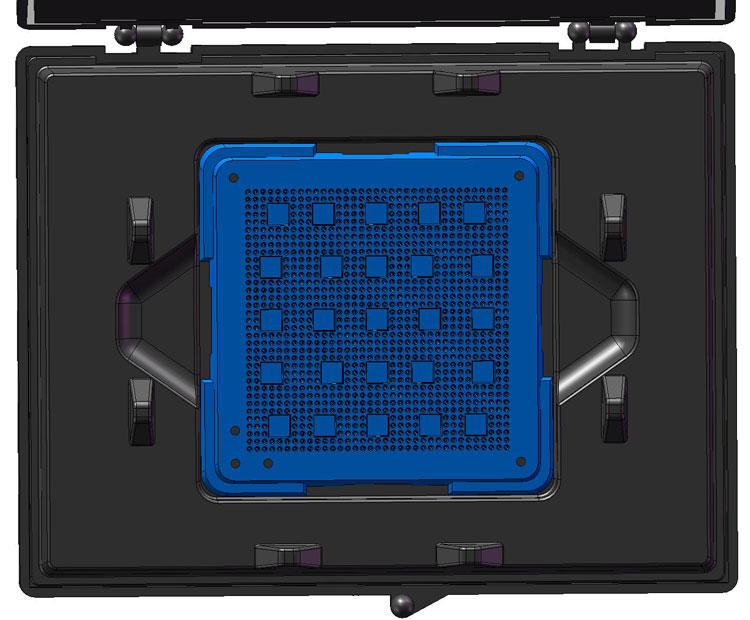

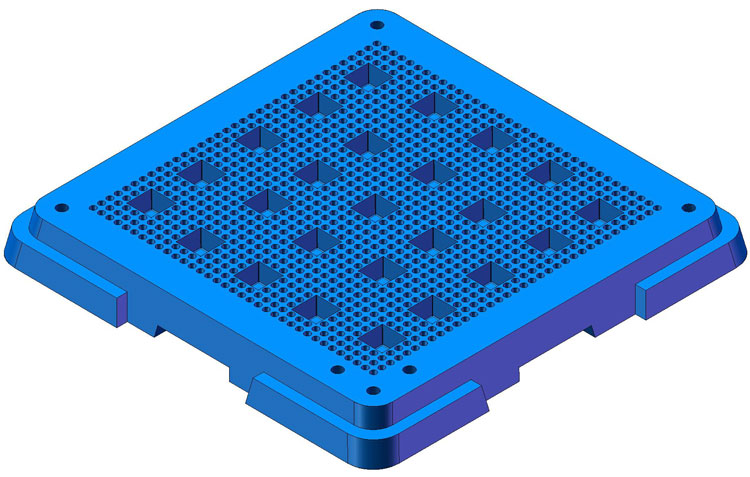

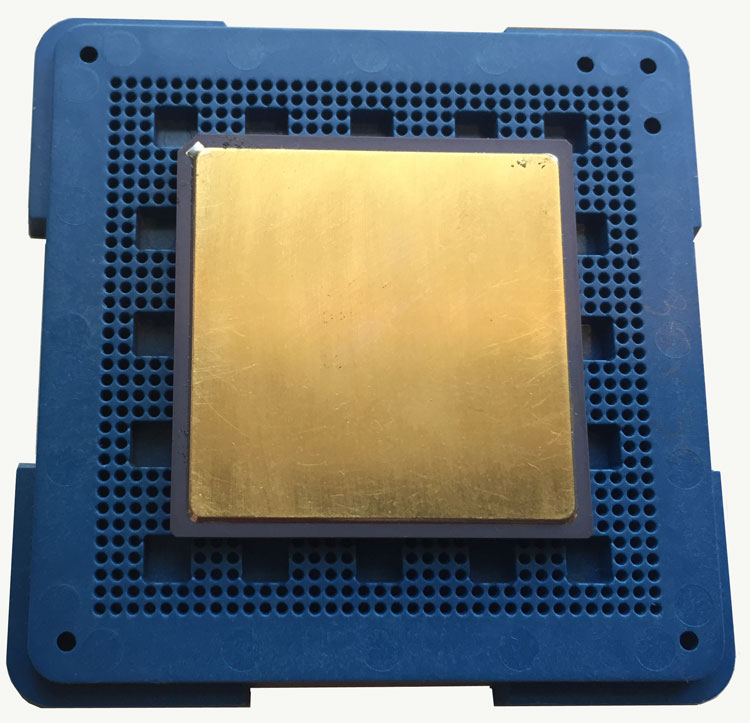

    Style 2
    1.27mm Blue Carrier
    Tray Box Set
     1   •   2   •   3  •   4

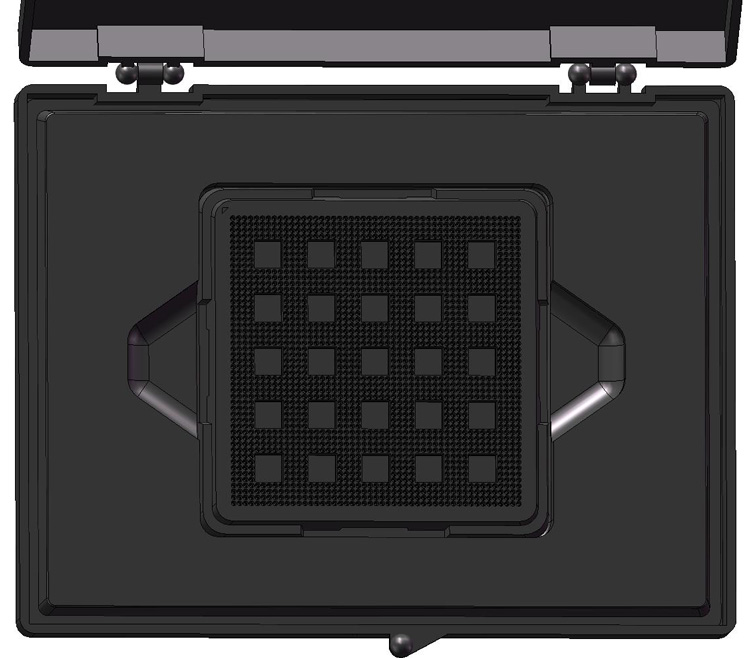

    Style 3
    1.0mm Black Carrier
    Tray Box Set
     1   •   2   •   3   •   4  •   5

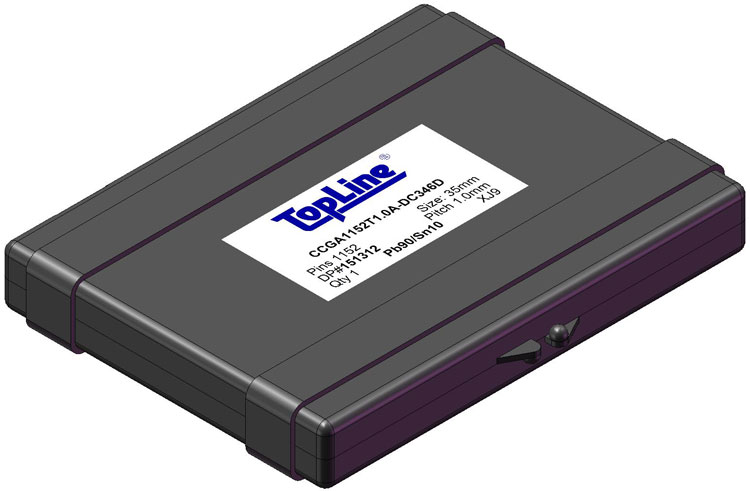

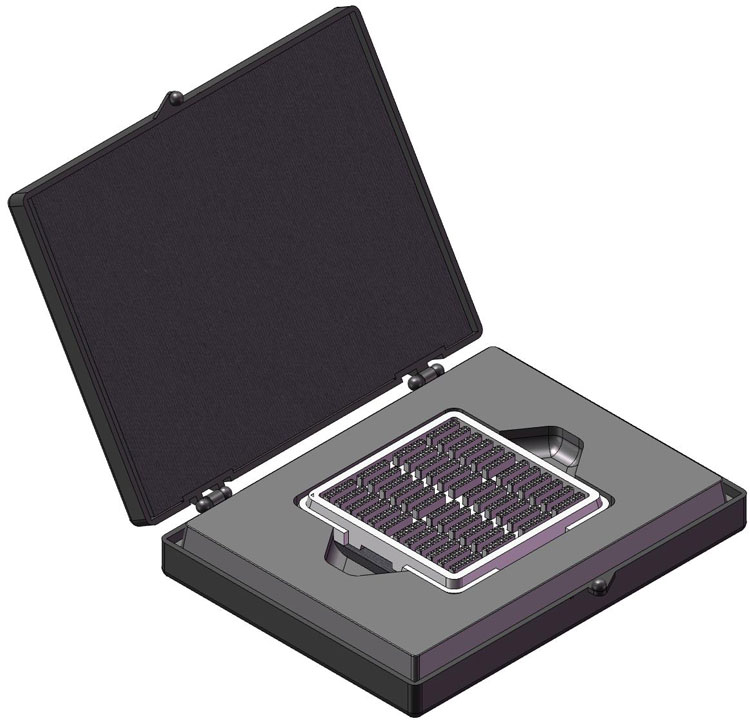

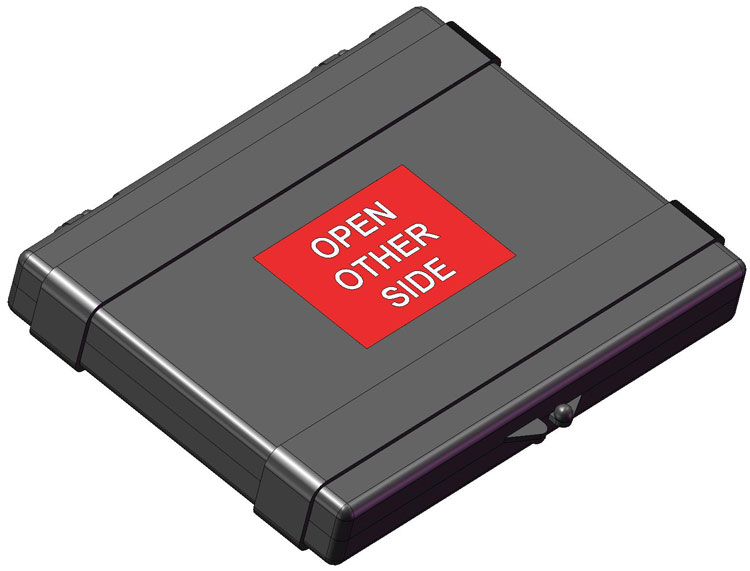

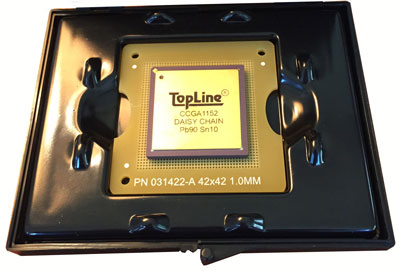

    Closed View
    Tray Box Set

     1   •   2   •  3

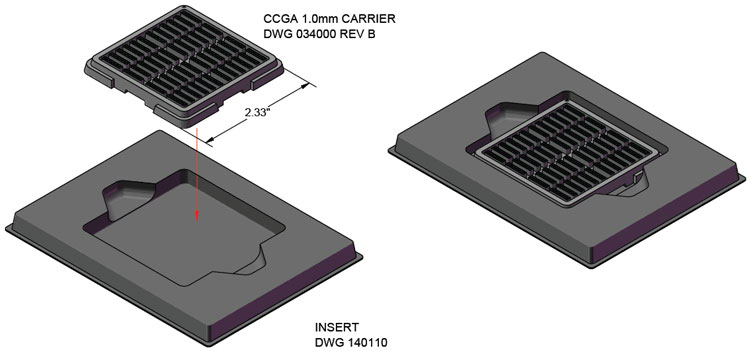

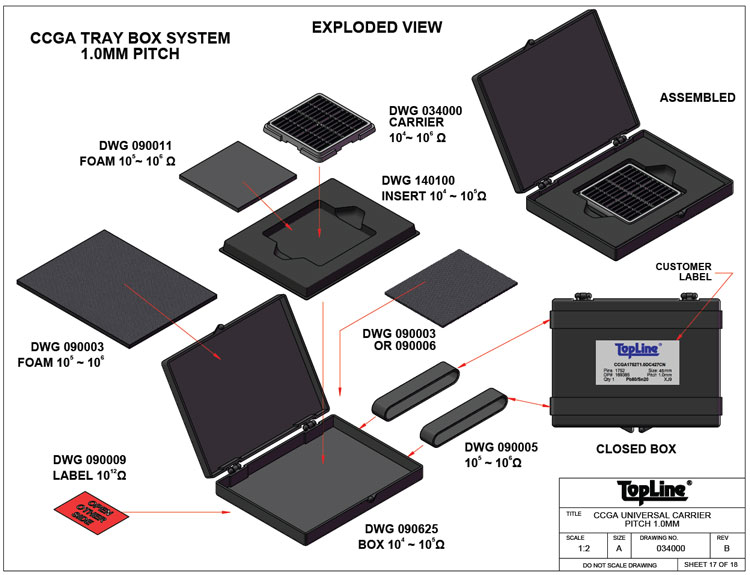

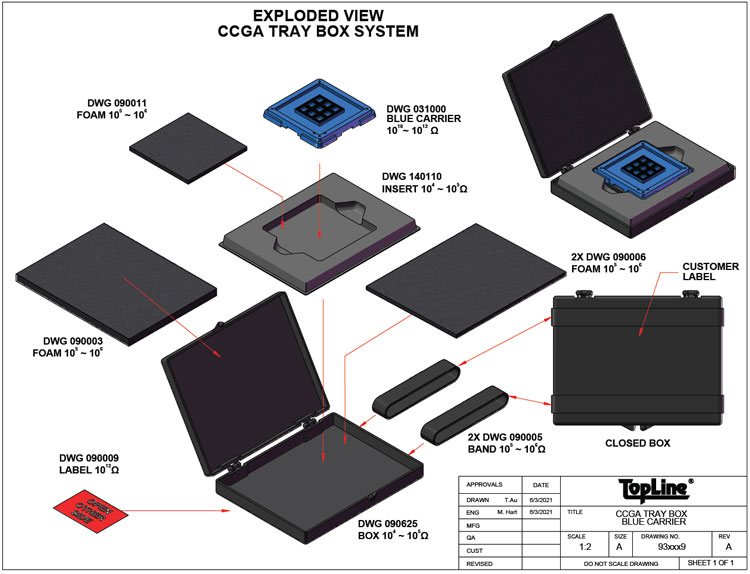

    EC1 Series Box Kit
    B.O.M. Contents

          Conductive Box

    4.5"x3.5"

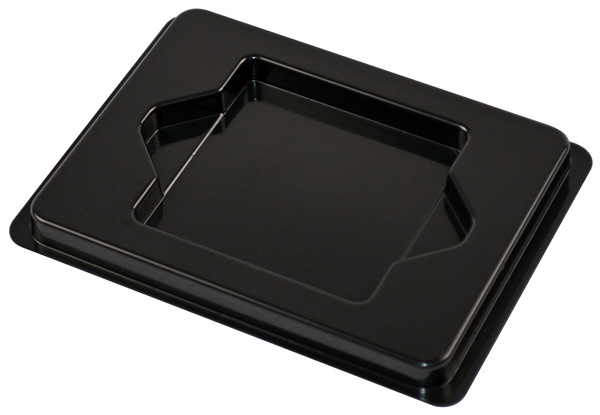

    PB1 Carrier

    2.33"x2.33"
    Carrier Frame

    I.D. 2.33" SQ
    O.D. 4.5"x3.5"
    Carrier

    Pitch 1.0mm
    Carrier

    Pitch 1.27mm
    Foam

    Variations
    Label

    4.5"x3.5"
    Rubber Band
    Conductive

    3.0"L x 0.5"W
          090625
    090750
    PB1 Carrier 140110 Blue 031000

    Black 034000
    Blue 032000

    Black 035000 Prelim
    090003
    090006
    090011
    090009 090005
    Description Style Tray Set
    Order#
    360° Model 360° Model 360° Model 360° Model 360° Model 360° Model 360° Model 360° Model
    CG121
    1.27mm
    15x15mm
    Style 2

    360° Model
    932119
    090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG143 (BC)
    1.0mm
    14.5x14.5mm
    Style 1

    360° Model
    931129
    090625 - 140110 031000 - 090003
    090006
    090011
    090009 090005
    CG168
    1.27mm
    17x17mm
    Style 2

    360° Model
    932139
    090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG165
    1.27mm
    21x25mm
    Style 2

    360° Model
    932159
    090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG196
    1.0mm
    15x15mm
    Style 1

    360° Model
    931149
    090625 - 140110 031000 - 090003
    090006
    090011
    090009 090005
    CG225
    1.27mm
    25x25mm
    Style 2

    360° Model
    932159
    090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG255
    1.27mm
    21x21mm
    Style 2

    360° Model
    932169 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG3256 (BB)
    1.0mm
    17x17mm
    Style 3

    360° Model
    931165
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG324 (BB)
    1.0mm
    20x20mm
    Style 3

    360° Model
    931185
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG360
    1.27mm
    25x25mm
    Style 2

    360° Model
    932199 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG376
    1.27mm
    28x28mm
    Style 2

    360° Model
    932376 090625 - 140110 - 032376 090003
    090006
    090011
    090009 090005
    CG399 (BC)
    1.0mm
    21x21mm
    Style 1

    360° Model
    931209
    090625 - 140110 031000 - 090003
    090006
    090011
    090009 090005
    CG399 (BB)
    1.0mm
    21x21mm
    Style 3

    360° Model
    931205
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG483 (BC)
    1.0mm
    23x23mm
    Style 1

    360° Model
    931229
    090625 - 140110 031000 - 090003
    090006
    090011
    090009 090005
    CG483 (BB)
    1.0mm
    23x23mm
    Style 3

    360° Model
    931225
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG472~CG484
    1.27mm
    29x29mm
    Style 2

    360° Model
    932229
    090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG517~
    CG529
    1.27mm
    31x31mm
    Style 2

    360° Model
    932239 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG529
    1.0mm
    24x24mm
    Style 3

    360° Model
    931235
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG564~
    CG576
    1.27mm
    31x31mm
    Style 2

    360° Model
    932249 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG624
    1.27mm
    32.5x32.5mm
    Style 2

    360° Model
    932259
    090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG625 (BB)
    1.0mm
    29x29mm
    Style 3

    360° Model
    931255
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG672
    1.27mm
    35x35mm
    Style 2

    360° Model
    932269 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG717
    1.27mm
    35x35mm
    Style 2

    360° Model
    932279 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005

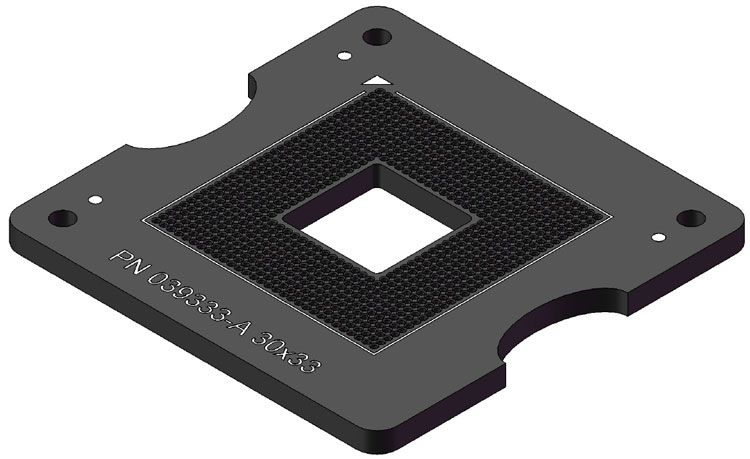

    CG771
    37.5x37.5mm
    Style 4 939333
    090625 039333 140110 - - 090003
    090006
    090011
    090009 090005
    CG896 (BB)
    1.0mm
    31x31mm
    Style 3

    360° Model
    931305 090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG1088
    CG1089
    1.27mm
    42.5x42.5mm
    Style 2

    360° Model
    932339 090625 - 140110 - 032000 090003
    090006
    090011
    090009 090005
    CG1144~
    CG1152 (BB)
    1.0mm
    35x35mm
    Style 3

    360° Model
    931345
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005

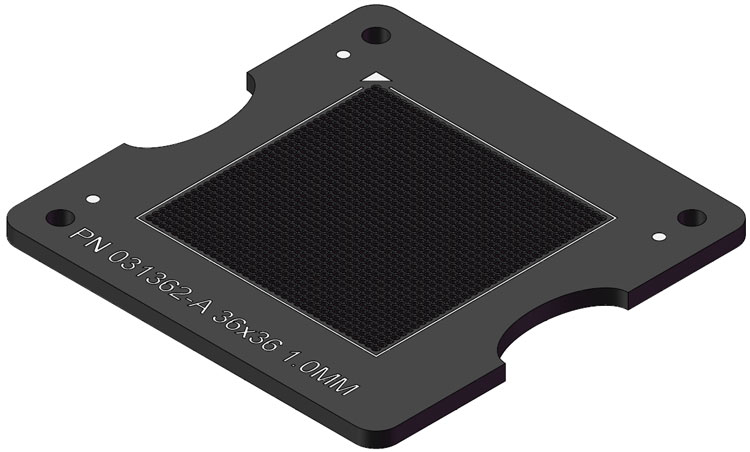

    CG1272 (BB)
    1.0mm
    37.5x37.5mm
    Style 3

    360° Model
    931365
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG1509 (BB)
    1.0mm
    40x40mm
    Style 3

    360° Model
    931395
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005

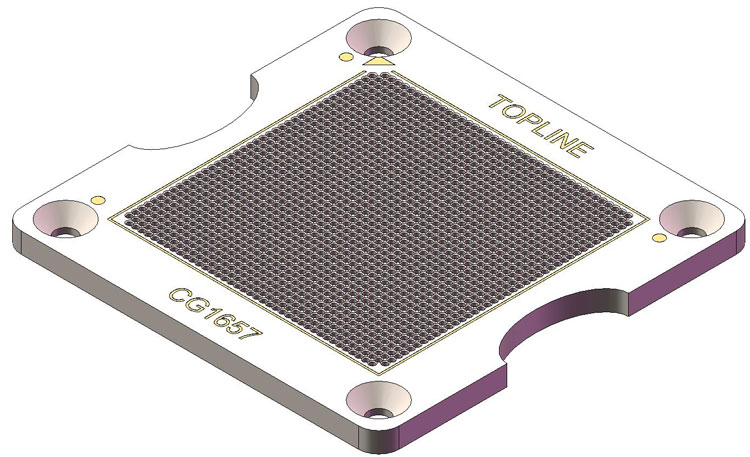

    CG1657 (BB)
    1.0mm
    42.5x42.5mm
    Style 3

    360° Model
    931415
    090625 - 140110 034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005

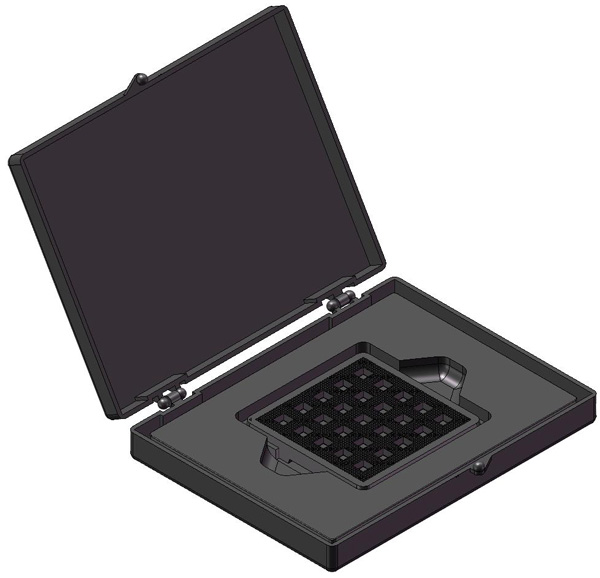

    CG1752 (BB)
    1.0mm
    45x45mm
    Style 3

    360° Model
    931425 090625 - 140110
    034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    CG2401 (BB)
    1.0mm
    49x49mm
    Style 3

    360° Model
    931495 090625 - 140110
    034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005
    EC1-000E-2BB
    Pitch 1.0mm
    Universal Box Set
    All CGA
    Style 3

    360° Model
    931495 090625 - 140110
    034000
    Black
    Conductive
    - 090003
    090006
    090011
    090009 090005

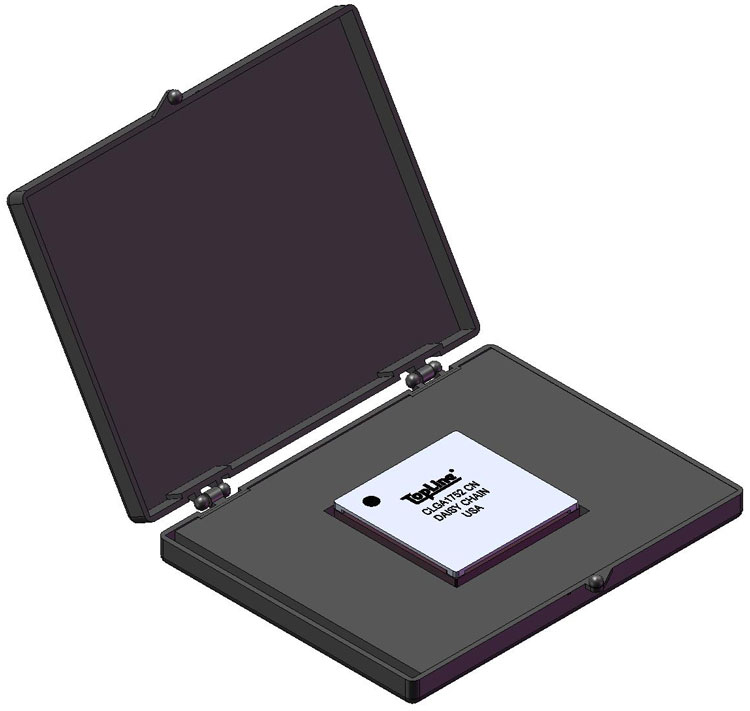

    CLGA1752
    1.0mm
    45x45mm
    Style 4

    360° Model
    921420 090000 - -
    - - 090002
    090006
    090014
    090009 090005

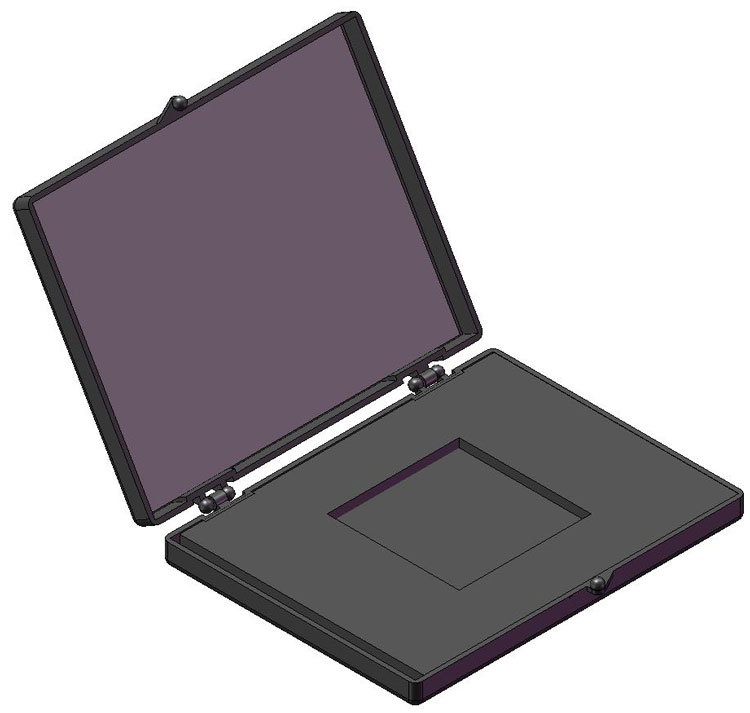

    EC1-SET-LGA-47A
    Universal Box Set
    for any LGA
    47.5 x 47.5mm
    Max
    Style 4

    360° Model
    920000 090000 - - - - 090002
    090006 (2x)
    090014
    090009 090005
    Note 1: Contact TopLine for assistance for other configurations not shown above.

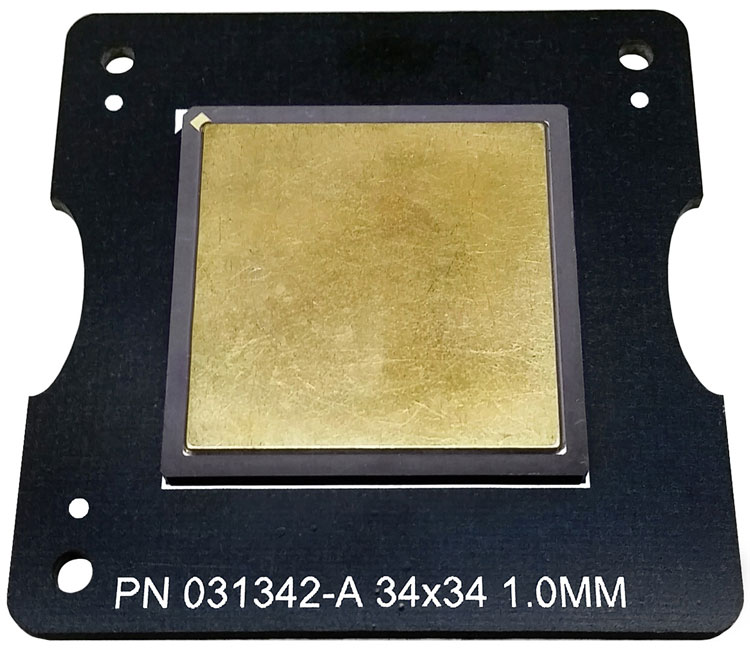

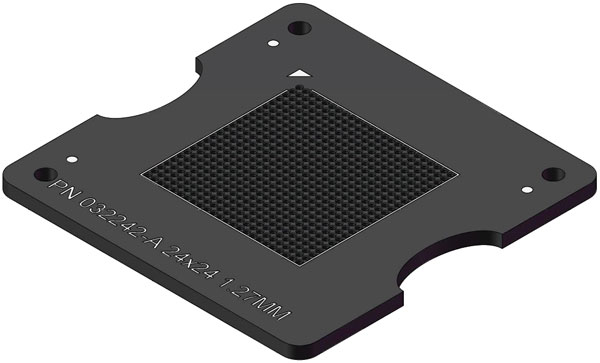

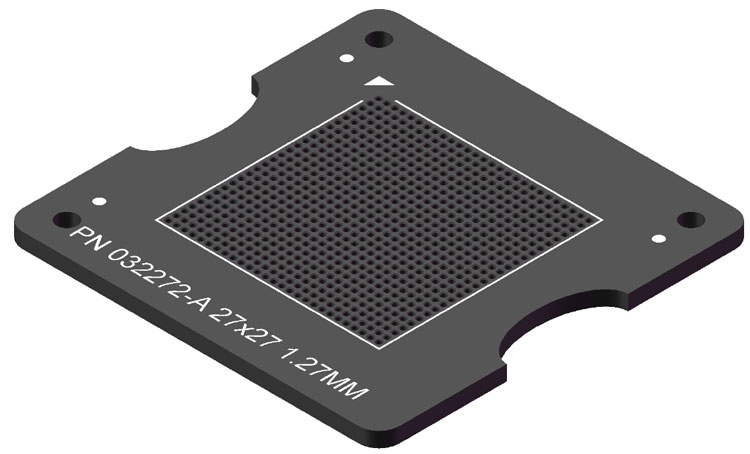

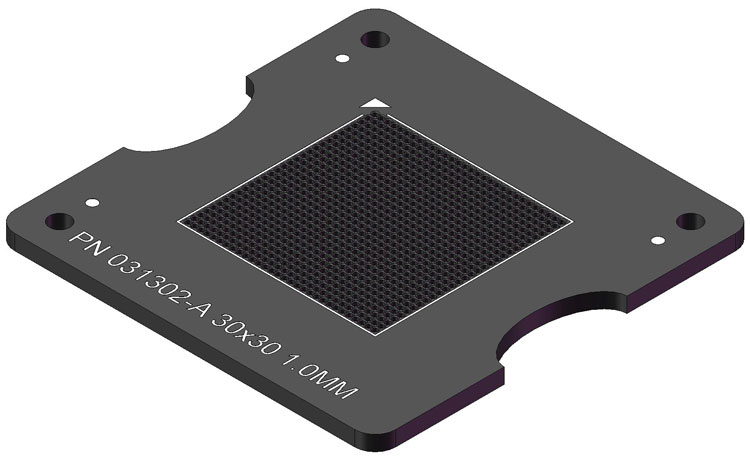

    BC1 and PB1 Carriers
    Carriers for CCGA
    Model Number Pins
    Max
    Pitch
    Column
    Matrix
    Carrier
    O.D. Size
    Column
    Length
    Max
    Device Type Solidworks
    360°
    Model
    Outline
    DWG
    Fig.

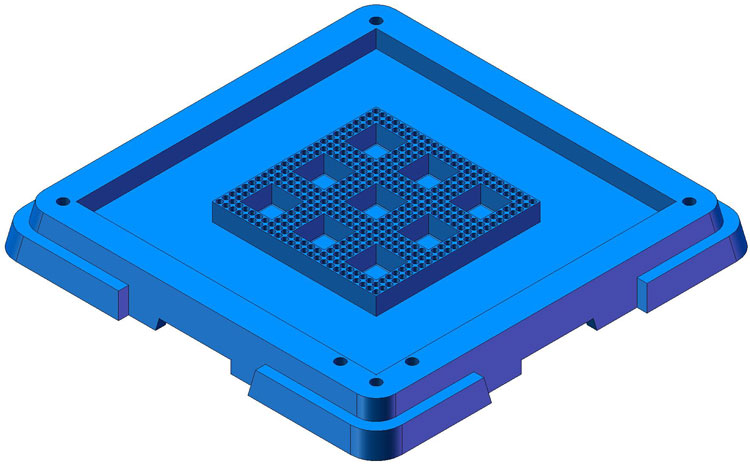

    BC1-CCGA-1.0mm-25x25 625
    Universal
    1.0mm 25x25 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA143~
    CCGA625
    Anti-static

    360° Model
    031000

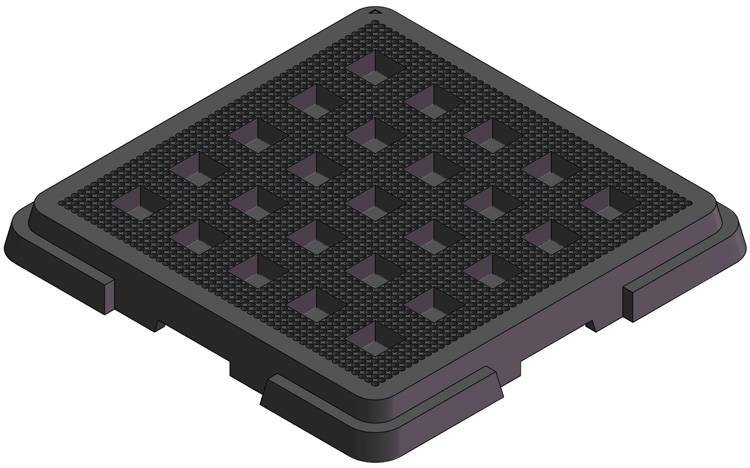

    BC1-CCGA-1.0mm-49x49 2401
    Universal
    1.0mm 49x49 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA143~
    CCGA2401
    ESD Conductive
    Polycarbonate
    With Carbon Powder
    Materials TDS

    360° Model
    034000
    BC1-CCGA-1.27mm-35x35 1225
    Universal
    1.27mm 35x35 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA165~
    CCGA1225
    Anti-static

    360° Model
    032000

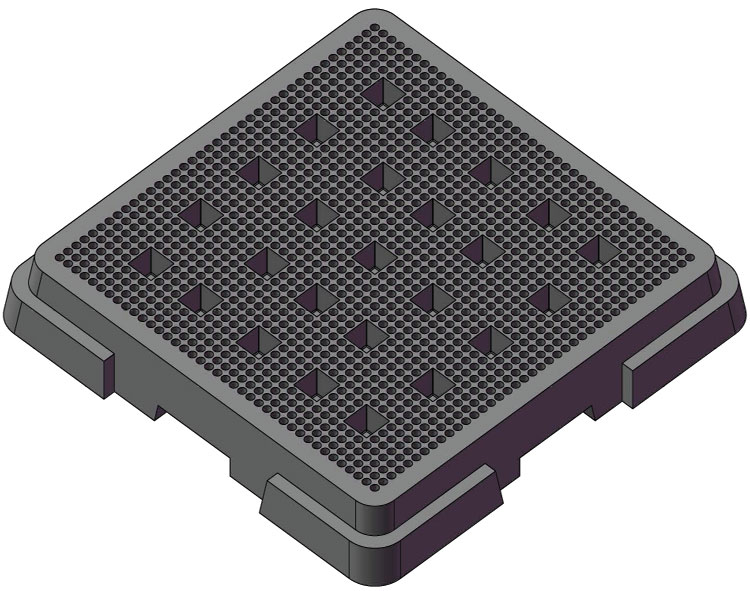

    BC1-CCGA-1.27mm-39x39 1521
    Universal
    1.27mm 39x39 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA165~
    CCGA1521
    ESD Conductive
    Dissipative
    Polycarbonate
    With Carbon Powder

    360° Model
    035000

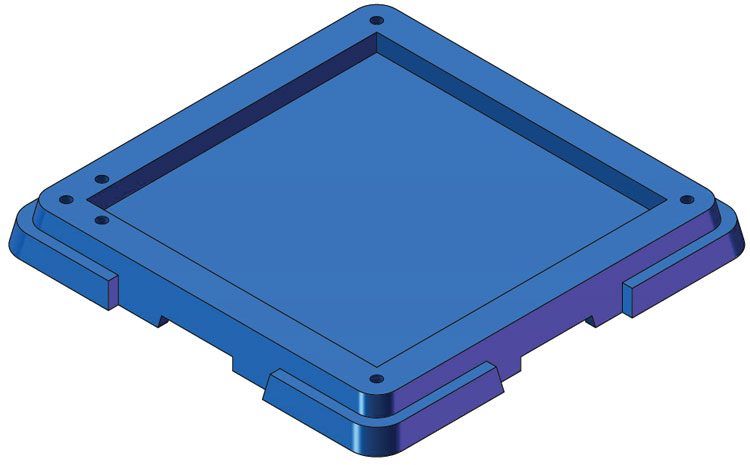

    BC1-CCGA-FRAME Universal
    Frame
    For Inserts
    1.0~1.27mm - 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA100~
    CCGA2401
    Anti-static

    360° Model
    038000

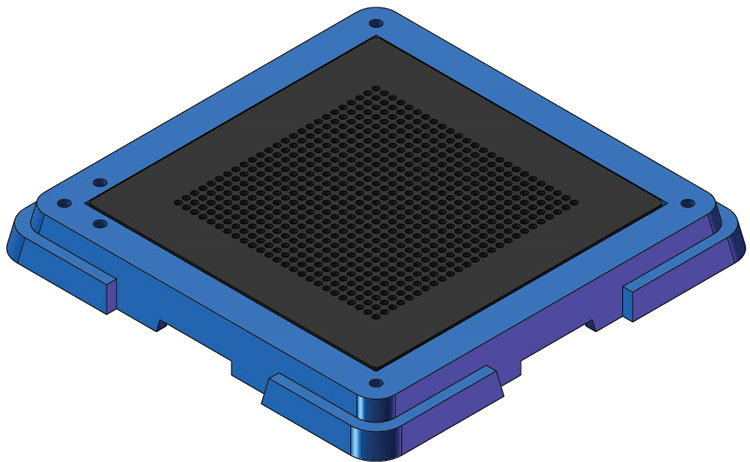

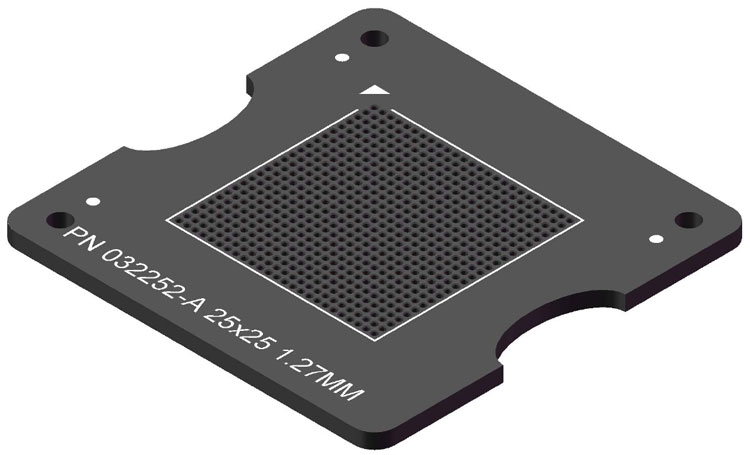

    BC1-624F-2BCP 624
    Carrier
    1.27mm 25x25 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA624
    ESD Conductive
    Anti-static

    360° Model
    038225

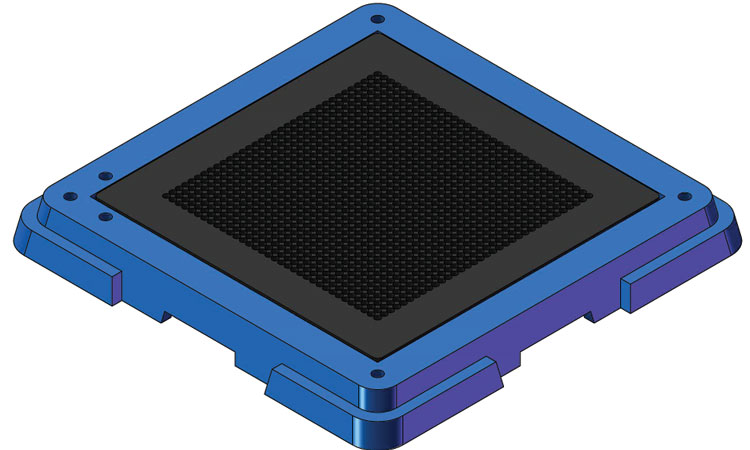

    BC1-1144E-2BCP 1144~1152
    Carrier
    1.0mm 34x34 2.33"x2.33"x.236"
    59mm x 59mm x 6.0mm
    2.54mm CCGA1144~1152
    ESD Conductive
    Anti-static

    360° Model
    038134

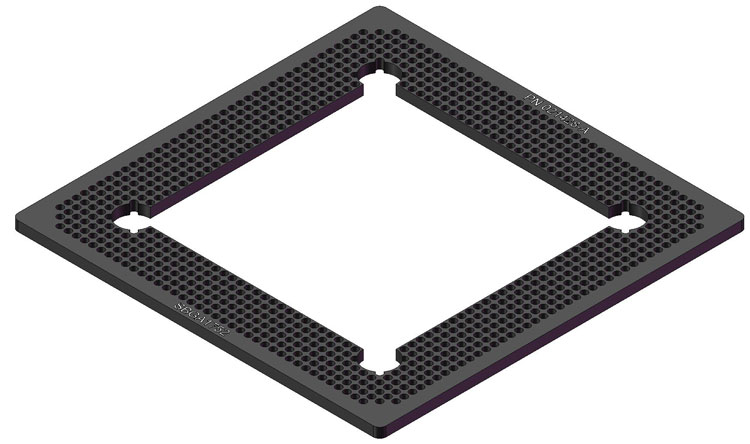

    J12-1752E-8A 1752 1.0mm 42x42 1.77"x1.77"x0.047"
    45mm x 45mm x 1.2mm
    Ø0.635mm
    Ball
    SBGA1752
    Ball

    Models
    1   •   2   •   3
    021428

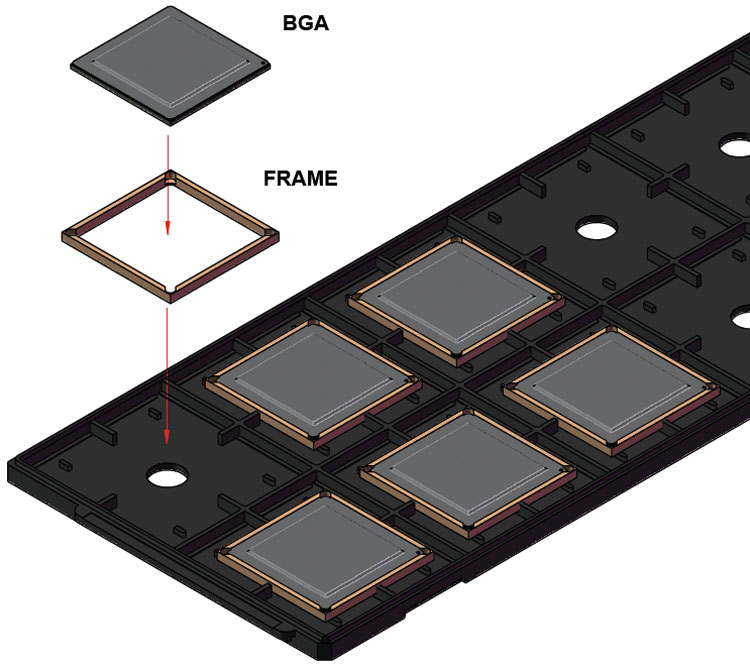

    J12-1760E-3A2 1760 1.0mm 42x42 1.82"x1.82"x0.125"
    46.2mm x 46.2mm x 3.17mm
    Ø0.635mm
    Ball
    SBGA1760
    Ball

    Models
    019420

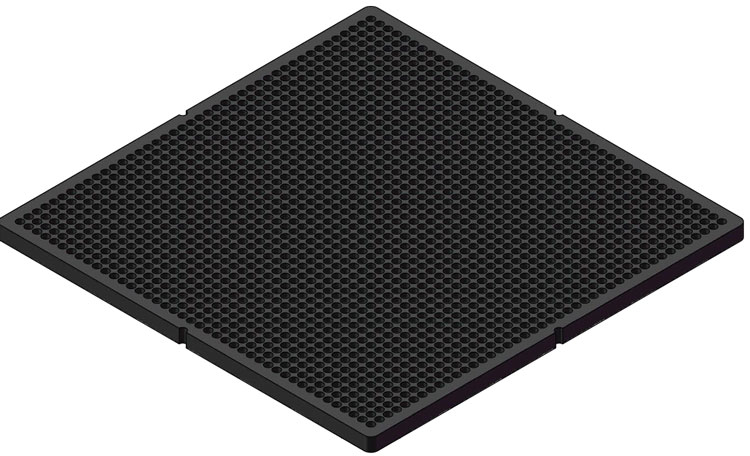

    J12-1760E-3A 1760 1.0mm 42x42 1.732"x1.732"x0.062"
    45mm x 45mm x 1.6mm
    Ø0.635mm
    Ball
    SBGA1760
    Ball

    Models
    021421

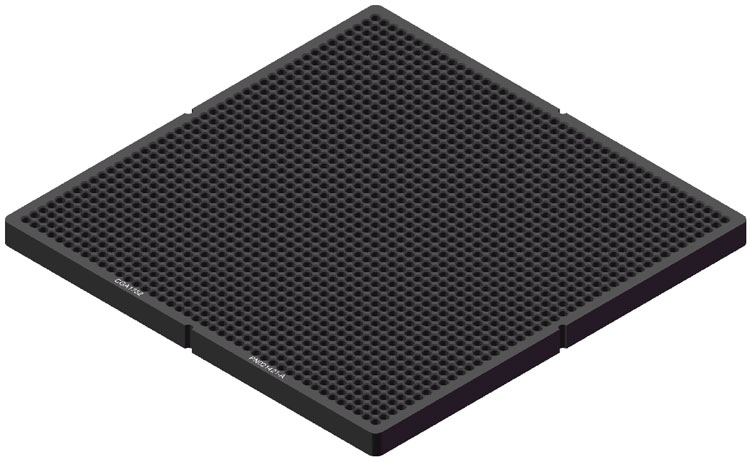

    J12-1752E-2A 1752 1.0mm 42x42 1.73"x1.73"x0.110"
    44mm x 44mm x 2.8mm
    2.54mm
    Column
    CGA1752
    Non-ESD
    NEMA XX

    360° Model

    1   •   2   •   3
    021422
    J12-1752E-3P 1752 1.0mm 42x42 1.73"x1.73"x0.110"
    44mm x 44mm x 2.8mm
    2.54mm
    Column
    CGA1752
    ESD Conductive
    Dissipative

    360° Model

    1   •   2   •   3
    02142x

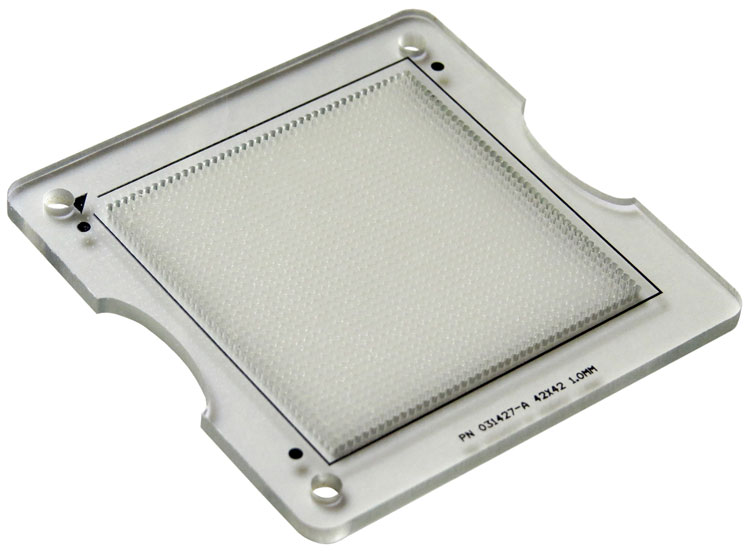

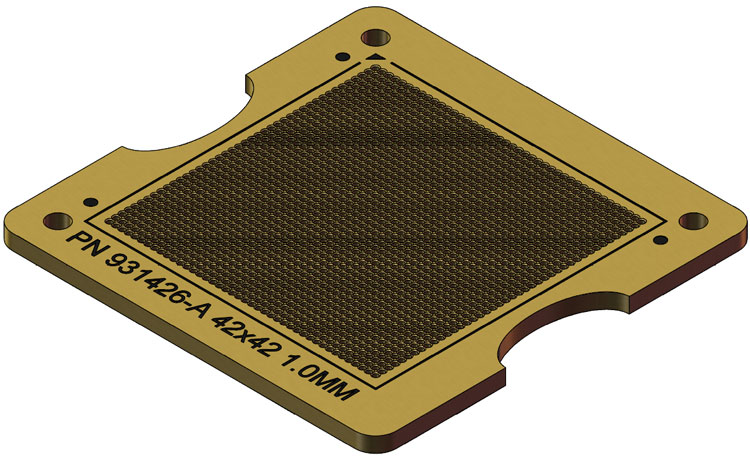

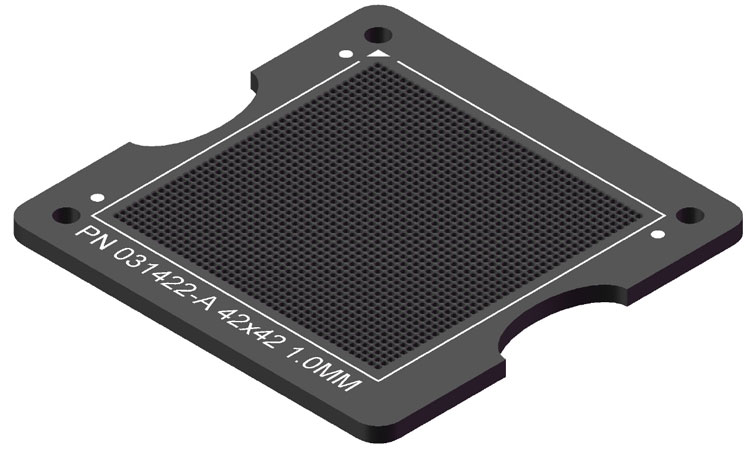

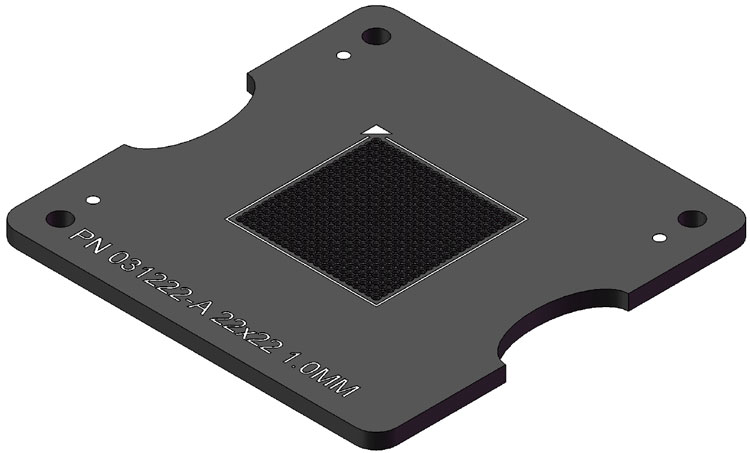

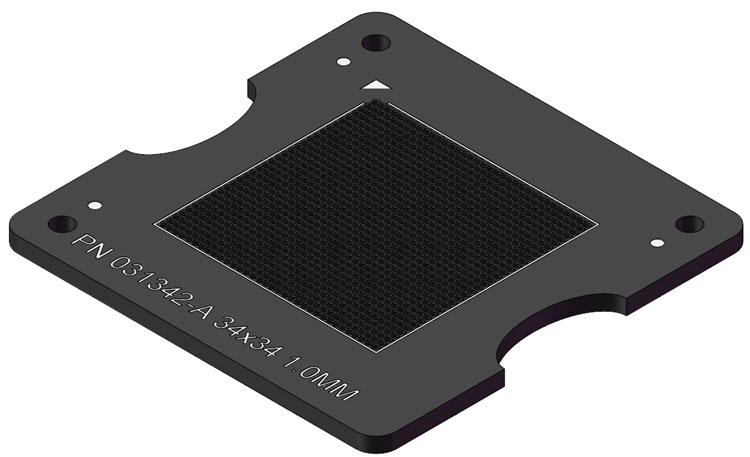

    PB1-1752E-2B
    PB1-1752E-2BR
    PB1-1752E-2E
    1752 1.0mm 42x42 2.33"x2.33"x.093"
    60mm x 60mm x 2.3mm
    2.31mm CCGA1752
    Non-ESD

    360° Model
    031422
    031426
    031427

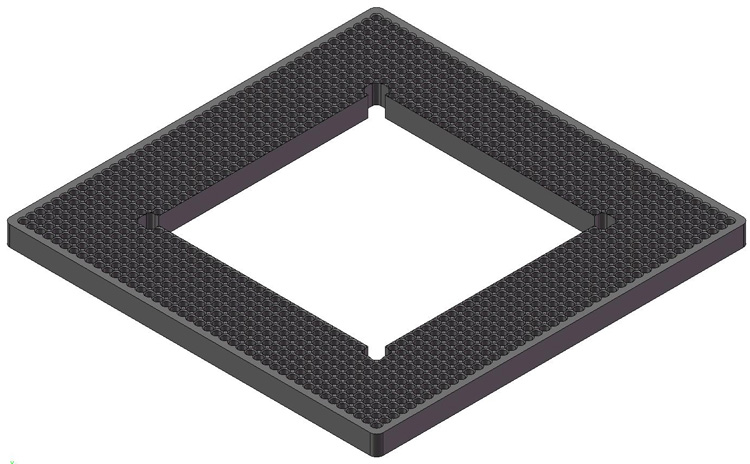

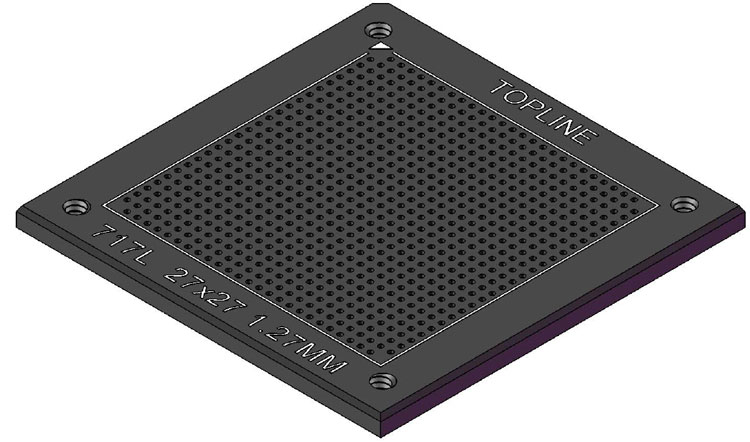

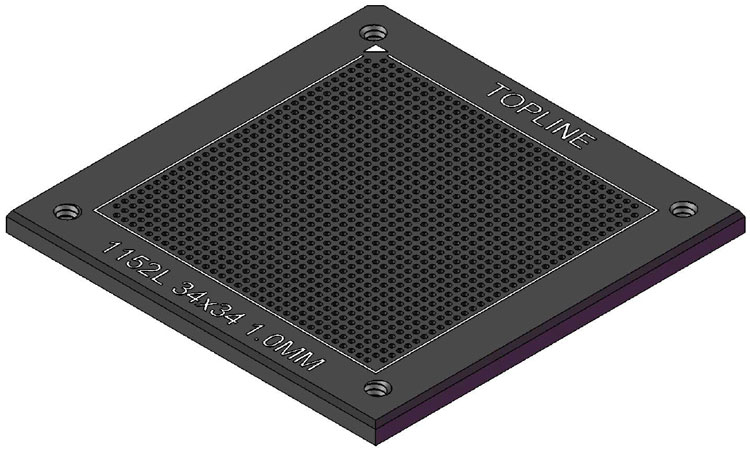

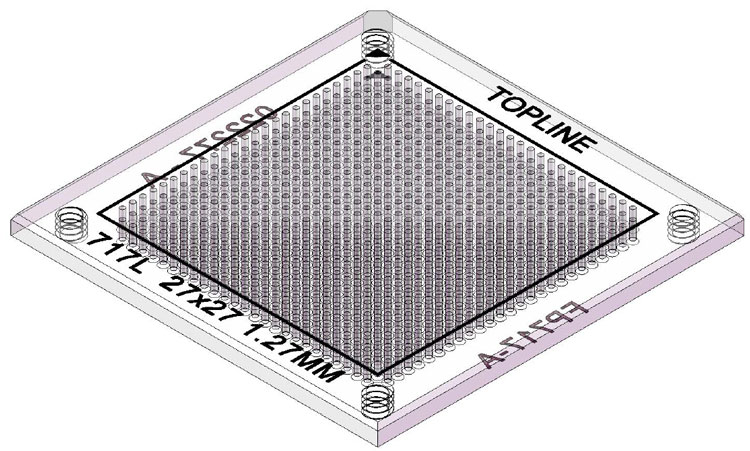

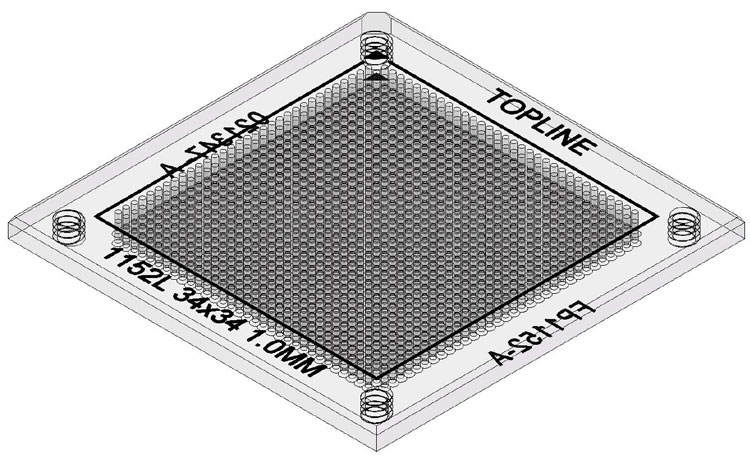

    PA1-1849E-2P
    Universal Stabilizer
    1849 1.0mm 43x43 1.75"x1.75"x0.110"
    45mm x 45mm x 2.8mm
    2.54mm
    Column
    CCGA896~
    CGA1849
    ESD Conductive
    Dissipative

    360° Model
    021432

    See More

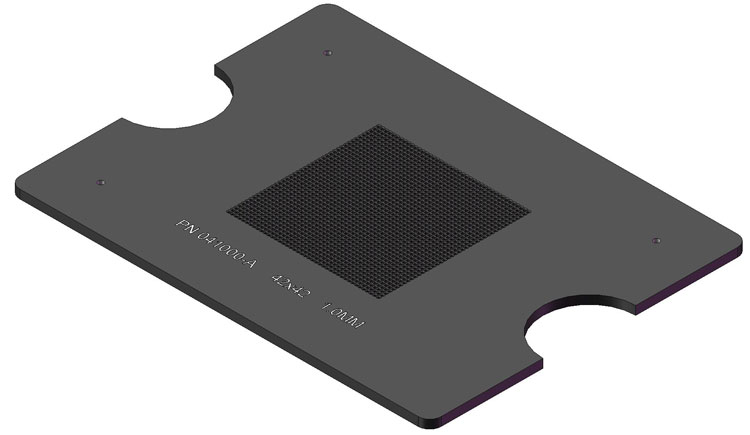

    PA1-1849E-2A
    Universal Stabilizer
    1849 1.0mm 43x43 1.75"x1.75"x0.110"
    45mm x 45mm x 2.8mm
    2.54mm
    Column
    CCGA896~
    CGA1849
    Non-ESD
    NEMA XX

    360° Model
    021433

    See More
    Note 1: Contact TopLine for assistance for other configurations not shown above.
    Note 2: Extend column length by adding foam under the insert or select thicker insert option. Contact TopLine for assistance.

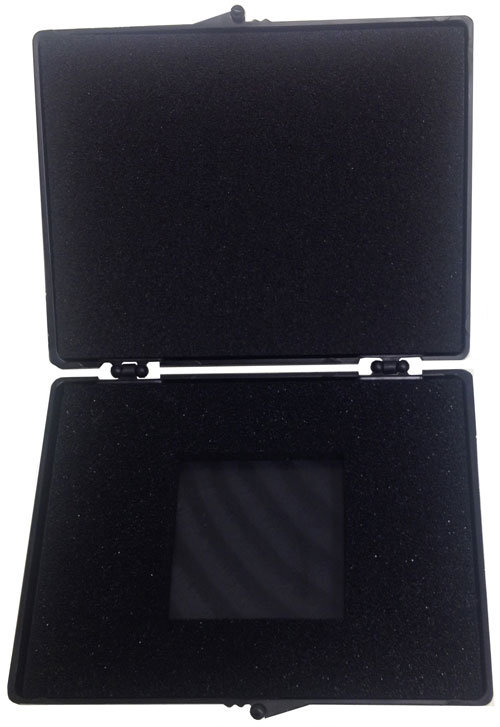

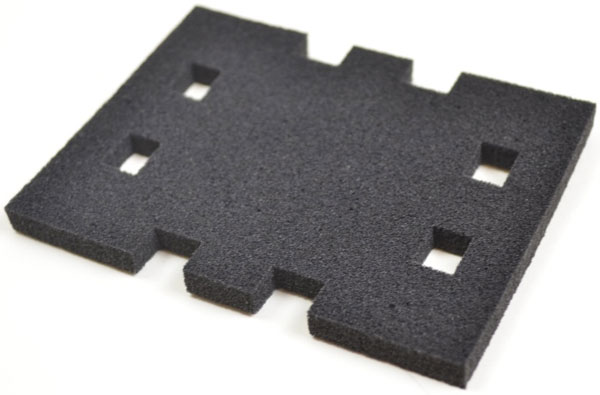

    Spares
    and Accessories

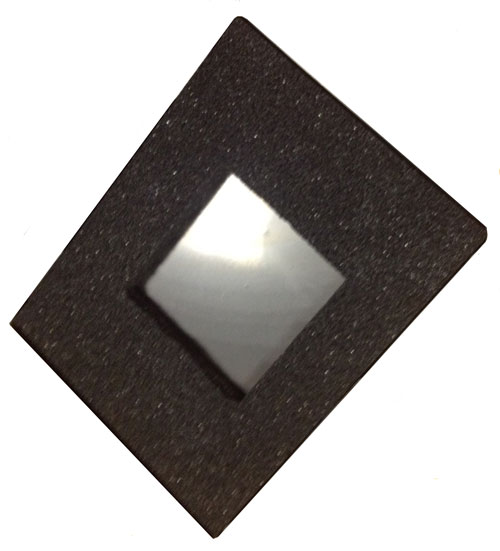

    Firm Foam
    Conductive

    4.5"x3.5"
    .25" Thick
    Soft Foam
    Conductive

    4.5"x3.5"
    090006 - .125" Th
    090003 - .250" Th
    Soft Foam
    Conductive

    4.5"x3.5"
    .25" Thick
    Foam Frame
    Pin-Pack® Carrier

    I.D. 1.889" SQ
    O.D. 4.5"x3.5"
    .25" Thick
    Foam Frame
    For PB1 Carrier

    I.D. 2.33" SQ
    O.D. 4.5"x3.5"
    .25" Thick
    Soft Foam
    Conductive

    2.33"x2.33"
    090011 - .125" Th
    090013 - .250" Th
    Soft Foam
    Conductive

    1.89"x1.89"
    090014 - .125" Th
    090015 - .250" Th
    Soft Foam
    Conductive

    5"x12"
    .125" Thick
    JEDEC
    Rubber Band
    Conductive


    #090005
    3.0"L x 0.5"W

    #090007
    4.5"L x 0.5"W
    090004 090006 - .125" Th
    090003 - .250" Th
    090022 090002 090008 090011 - .125" Th
    090013 - .250" Th
    090014 - .125" Th
    090015 - .250" Th
    090016 090005
    090007
    360° Model 360° Model 360° Model 360° Model 360° Model 360° Model 360° Model 360° Model 360° Model
    Note 1: Contact TopLine for assistance for other configurations not shown above.
    Note 2: Low density foam is made of carbon loaded polyurethane foam.
    Note 3: Standard Cartons for CCGA black hinge carriers Packing Carton



    Tray System
    Model Number System
        EC         1     -     1152         E         -         2         BC
    Series Nbr Devices   Matrix Pitch Column Length Version
    CCGA Packaging:
    EC = Complete Tray Box Set
    4.5x3.5"


    Carrier Insert
    PA = 1.80" x 1.80"
    PB = 2.33" x 2.33"

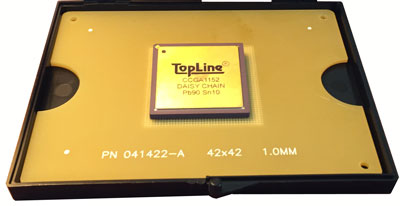

    PC = 4.55" x 3.45"


    Carrier Panels
    PP = 11.6" x 20.0"

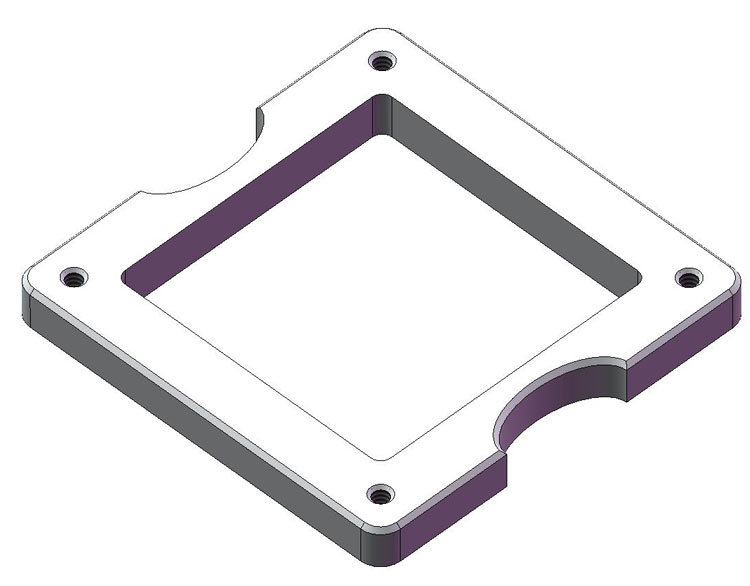

    Aluminum Frame Carrier
    AB = 2.33" x 2.33"


    Chip Vault Carrier
    CV = Custom


    Carrier
    BC = 2.33" x 2.33" Blue Anti-Static
    BB = 2.33" x 2.33" Black Conductive
    Polycarbonate with Carbon Powder


    JEDEC Outline Tray:
    J = JEDEC Outline

    JS = JEDEC SET
    Cover/Tray/Foam/Straps/Box
    CodeDevices
    1 = Single



    JEDEC Outline:
    6 = 6 Devices
    8 = 8 Devices
    10 = 10 Devices


    Panel:
    20 = 20 Devices
      CCGAMatrix
    168 = 11x15
    225 = 15x15
    484 = 22x22
    624 = 25x25
    717 = 27x27
    896 = 30x30
    1152 = 34x34
    1272 = 36x36
    1657 = 41x41
    1752 = 42x42
    1849 = 43x43


    Accessory
    FRAME
    CodePitch
    E = 1.0mm
    F = 1.27mm

    A = 0.4mm
    B = 0.5mm
    C = 0.65mm
    D = 0.8mm
    G = 2.54mm
    J = 2.0mm

    V = 1.0mm Stagger
    W = 1.0/1.27mm
    Y = 1.17/1.09mm
    Z = Other
    CodeMax Column L
    0 = LGA No Columns
    1 = 1.6mm (0.062")
    2 = 2.5mm (0.100")
    3 = 3.2mm (0.125")
    4 = 4.7mm (0.187")
    8 = 1.2mm (0.047")
    Complete Tray Box Set:
    CodeCarrier Mat'l
    BC = 2.33" x 2.33" Blue Anti-Static
    BB = 2.33" x 2.33" Black Conductive

    BCA = 2.33" Carrier + NEMA XX Stabilizer
    BCP = 2.33" Carrier + PC Carbon Stabilizer

    A = 1.75" NEMA XX
    B = 2.33" NEMA XX
    C = 4.5x3.5 NEMA XX
    E = 2.33" Clear Polycarbonate
    F = 1.89" Black ESD Foam Frame
    P = 1.75" Black ESD PC + Carbon
    FP = 1.89" Flip Pack in ESD Foam Frame
    BR = 2.33" Brass
    T = Torlon 4301
    Z = Custom


    Tray System
    Drawing Number System
        0         2         1         34         9
    Item Construction Pitch Array Column Length (max)

    CodeDescription
    0 = Packaging Materials
    & accessories

    5 = Carrier Panels

    9 = Complete Tray Box Set

    CodeDescription
    9 = Accessories

    Matrix Insert:
    2 = 1.889"SQ (48mm) or PA 1.8" SQ
    3 = 2.33"SQ (59.2mm) PB, BR, BC
    4 = 4.5"x3.5" (115x88mm) PC


    CodeDescription
    7 = JEDEC Outline Tray

    1 = Custom

    0 = Empty Pin-Pack®

    5 = CERQUAD with TIE-BAR
    6 = Future
    8 = Future

    CodePitch
    1 = 1.0mm
    2 = 1.27mm
    3 = 1.5mm
    4 = 0.4mm
    5 = 0.5mm
    6 = 0.65mm
    7 = 2.0mm
    8 = 0.8mm

    9 = Custom

    CodeMatrix
    12 = 12x12
    15 = 15x15
    16 = 16x16
    20 = 20x20
    22 = 22x22
    24 = 24x24
    25 = 25x25
    26 = 26x26
    27 = 27x27
    30 = 30x30
    34 = 34x34
    36 = 36x36
    39 = 39x39
    40 = 40x40
    41 = 41x41
    42 = 42x42
    43 = 43x43
    etc

    01 = Universal

    Carrier Thickness:
    CodeColumn (L) Max
    0 = LGA No Columns
    1 = 1.5mm (0.060")
    2 = 2.5mm (0.100")
    3 = 3.2mm (0.125")
    8 = 1.2mm (0.047")


    Clear Polycarbonate
    7 = Static Dissipative
    2.2~2.3mm Columns(E)



    9 = Blue Antistatic Carrier
    2.2~2.5mm Columns (BC)

    4 = Blue Antistatic Carrier
    with Conductive Stabilizer
    2.2~2.5mm Columns (BCP)

    5 = Black Conductive Carrier
    2.2~2.5mm Columns (BB)


    0~9 Empty Pin-Pack®

    ESD Surface Resistance Range
    Level Surface Resistance
    Conductive 103 ~ 105 Ω
    Static Dissipative 106 ~ 109 Ω
    Anti-Static 1010 ~ 1012 Ω

    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    HS Code: 3923.10.2000 Plastic Boxes for Packaging of Semicondutors
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.


    Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.




    TopLine Corporation
    95 Highway 22 W
    Milledgeville, GA 31061, USA
    Toll Free USA/Canada (800) 776-9888
    International: 1-478-451-5000
    Email: sales@topline.tv

    ©2024 TopLine. All Rights Reserved.

    Home
