CCGA solder columns Pb80/Sn20 and Pb85/Sn15 and Pb90/Sn10 with copper wrap for rework, repair and reflow for ceramic column grid array. CCGA PIN , CCGA PINS , COLOMN , CCGA solder column , collums , COLUNM BGA , COLUMN BGA , CGA Column , CCGA-Pb90/Sn10 , CCGA-Pb90/Sn10-A , CCGA-Pb80/Sn20 , CCGA-Pb80/Sn20-A, Pb80/Sn15 COPPER WRAP COLUMN , CGA PB80/SN20 CU WRAPPED COLUMNS , SOLID COLUMN , ADVANTAGE COPPER WRAPPED PB90/SN10 COLUMNS , Cu Piller Cu Pillar , Cu Pillor , COPPER WRAP SOLDER COLUMN Sn20/Pb80 , HMP high melting point solder , Pb93.5Sn5Ag1.5 , Pb93.5 Sn5 Ag1.5 , Pb93.5/Sn5/Ag1.5 , Sn5 Pb93.5 Ag1.5 , Sn5Pb93.5Ag1.5 , Sn5/Pb93.5/Ag1.5 , SWtest conference Probe Card , SW Test Conference Probe Card , space transformer , Downhole drilling , down hole drilling , COPPER CORE , Copper Pilar , Copper.Pilar, COPPER PILARS , CCGA Planting column , COLUMN CGA , Recolumn ,RE-COLUMN , BRAIDED COLUMN INTRO , compliant pin , SOLDER POST , NTK COLUMNS , SIX SIGMA COLUMNS , CCGA solder columns Sn10/Pb90 and Sn20/Pb80 and Sn15/Pb85 and Sn10Pb90 and Sn20Pb80 and Sn15Pb85 copper wrap , 10/90 and 20/80 and 15/85 , 90/10 and 80/20 and 85/15 , PB92.5 , PBSN5AG2.5 , 90\10 , 90 \ 10 , Pb90\10 , BC9010D20X93 , BC9010D20X91 , CG8020C12x87 , CG8020C12x91 , CG8020C12x95 , CG8020C12x100 , CG8020C12x110 ,CG8020C12x145 , CG8020C12x150 , CG8020C15x87 , CG8020C15x91 , CG8020C15x95 , CG8020C15x100 , CG8020C15x110 ,CG8020C15x145 , CG8020C15x150 , CG8020C20x87 , CG8020C20x91 , CG8020C20x95 , CG8020C20x100 , CG8020C20x110 ,CG8020C20x145 , CG8020C20x150 , CG8020C22x87 , CG8020C22x91 , CG8020C22x100 , CG8020C23x100 , CG8020C27x100 , CG8020C30x100 , CG8515C12x87 , CG8515C12x91 , CG8515C12x100 , CG8515C12x110 ,CG8515C12x145 , CG8515C12x150 , CG8515C15x87 , CG8515C15x91 , CG8515C15x100 , CG8515C15x110 ,CG8515C15x145 , CG8515C15x150 , CG8515C16x87 , CG8515C16x91 , CG8515C16x93 , CG8515C16x95 , CG8515C16x100 , CG8515C16x110 ,CG8515C16x145 , CG8516C15x150 , CG8515C20x87 , CG8515C20x91 , CG8515C20x100 , CG8515C20x110 ,CG8515C20x145 , CG8515C20x150 , CG8515C22x87 , CG8515C22x91 , CG8515C22x100 , CG8515C23x100 , CG8515C27x100 , CG8515C30x100 , CG9010U10x25 , CG9010U10x50 , CG9010U10x60 , CG9010U10x87 , CG9010U10X91 ,CG9010U10X95 , CG9010U10x100 , CG9010U12x25 , CG9010U12x87 , CG9010U12X91 , CG9010U12X95 , CG9010U12x100 , CG9010U15x25 , CG9010U15x87 , CG9010U15X91 , CG9010U15X95 , CG9010U15x100 , CG9010U20x87 , CG9010U20X91 ,CG9010U20X95 , CG9010U20x100 , CG9010U22x87 , CG9010U22X91 ,CG9010U22X95 , CG9010U22x100 , CG9010U35x87 , CG9010U35X91 ,CG9010U35X95 , CG9010U35x100 , CG9010C10X50 , CG9010C10X60 , CG9010C10X75 , CG9010U12X50 , CG9010U12X60 , CG9010C12X87 , CG9010C12X91 , CG9010C12X95 , CG9010C12X100 , CG9010C12X110 , CG9010C12X150 , CG9010C15X87 , CG9010C15X91 , CG9010C15X95 , CG9010C15X100 , CG9010C15X110 , CG9010C15X150 , CG9010C20X87 , CG9010C20X91 , CG9010C20X95 , CG9010C20X100 , CG9010C20X110 , CG9010C20X150 , CG9010E20X87 , CG9010E20X91 , CG9010E20X100 MCS172P20x50, MCS172G20x50, MCS172P16x40, MCS172G16X40 , -------- CG8020C12*87 , CG8020C12*91 , CG8020C12*95 , CG8020C12*100 , CG8020C12*110 ,CG8020C12*145 , CG8020C12*150 , CG8020C15*87 , CG8020C15*91 , CG8020C15*95 , CG8020C15*100 , CG8020C15*110 ,CG8020C15*145 , CG8020C15*150 , CG8020C20*87 , CG8020C20*91 , CG8020C20*95 , CG8020C20*100 , CG8020C20*110 ,CG8020C20*145 , CG8020C20*150 , CG8020C22*87 , CG8020C22*91 , CG8020C22*100 , CG8020C23*100 , CG8020C27*100 , CG8020C30*100 , CG8515C12*87 , CG8515C12*91 , CG8515C12*100 , CG8515C12*110 ,CG8515C12*145 , CG8515C12*150 , CG8515C15*87 , CG8515C15*91 , CG8515C15*100 , CG8515C15*110 ,CG8515C15*145 , CG8515C15*150 , CG8515C20*87 , CG8515C20*91 , CG8515C20*100 , CG8515C20*110 ,CG8515C20*145 , CG8515C20*150 , CG8515C22*87 , CG8515C22*91 , CG8515C22*100 , CG8515C23*100 , CG8515C27*100 , CG8515C30*100 , CG9010U10*25 , CG9010U10*50 , CG9010U10*60 , CG9010U10*87 , CG9010U10*91 ,CG9010U10*95 , CG9010U10*100 , CG9010U12*25 , CG9010U12*87 , CG9010U12*91 , CG9010U12*95 , CG9010U12*100 , CG9010U15*25 , CG9010U15*87 , CG9010U15*91 , CG9010U15*95 , CG9010U15*100 , CG9010U20*87 , CG9010U20*91 ,CG9010U20*95 , CG9010U20*100 , CG9010U22*87 , CG9010U22*91 ,CG9010U22*95 , CG9010U22*100 , CG9010U35*87 , CG9010U35*91 ,CG9010U35*95 , CG9010U35*100 , CG9010C12*87 , CG9010C12*91 , CG9010C12*95 , CG9010C12*100 , CG9010C12*110 , CG9010C12*150 , CG9010C15*87 , CG9010C15*91 , CG9010C15*95 , CG9010C15*100 , CG9010C15*110 , CG9010C15*150 , CG9010C20*87 , CG9010C20*91 , CG9010C20*95 , CG9010C20*100 , CG9010C20*110 , CG9010C20*150 , CG9010E20*87 , CG9010E20*91 , CG9010E20*100 MCS172P20*50, MCS172G20*50, MCS172P16*40, MCS172G16*40 , -------- CU101F4x40 , CU101F5x40 , CU101F4x50 , CU101F5x50 , CU101F6x50 , CU101F6x60 , CU101F8x40 , CU101F8x50 , CU101F8x60 , CU101F8x63 , CU101F8x87 , CU101F8x91 , CU101F10x40 , CU101F10x50 , CU101F10x60 , CU101F10x63 , CU101F10x87 , CU101F10x91 , CU101F12x40 , CU101F12x50 , CU101F12x60 , CU101F12x63 , CU101F12x87 , CU101F12x91 , CU101F14x40 , CU101F14x50 , CU101F14x60 , CU101F14x63 , CU101F14x87 , CU101F14x91 , CU101F15x40 , CU101F15x50 , CU101F15x60 , CU101F15x63 , CU101F15x87 , CU101F15x91 , CU101F15x100 , CU101F16x40 , CU101F16x50 , CU101F16x60 , CU101F16x63 , CU101F16x87 , CU101F16x91 , CU101F16x100 , CU101F18x50 , CU101F18x60 , CU101F18x63 , CU101F18x87 , CU101F18x91 , CU101F18x100 , CU101F20x50 , CU101F20x60 , CU101F20x63 , CU101F20x87 , CU101F20x91 , CU101F20x100 , CU101G4x40 , CU101G5x40 , CU101G4x50 , CU101G5x50 , CU101G6x50 , CU101G6x60 , CU101G8x40 , CU101G8x50 , CU101G8x60 , CU101G8x63 , CU101G8x87 , CU101G8x91 , CU101G10x40 , CU101G10x50 , CU101G10x60 , CU101G10x63 , CU101G10x87 , CU101G10x91 , CU101G12x40 , CU101G12x50 , CU101G12x60 , CU101G12x63 , CU101G12x87 , CU101G12x91 , CU101G14x40 , CU101G14x50 , CU101G14x60 , CU101G14x63 , CU101G14x87 , CU101G14x91 , CU101G15x40 , CU101G15x50 , CU101G15x60 , CU101G15x63 , CU101G15x87 , CU101G15x91 , CU101G15x100 , CU101G16x40 , CU101G16x50 , CU101G16x60 , CU101G16x63 , CU101G16x87 , CU101G16x91 , CU101G16x100 , CU101G18x50 , CU101G18x60 , CU101G18x63 , CU101G18x87 , CU101G18x91 , CU101G18x100 , CU101G20x50 , CU101G20x60 , CU101G20x63 , CU101G20x87 , CU101G20x91 , CU101G20x100 , CU101P4x40 , CU101P5x40 , CU101P4x50 , CU101P5x50 , CU101P6x50 , CU101P6x60 , CU101P8x40 , CU101P8x50 , CU101P8x60 , CU101P8x63 , CU101P8x87 , CU101P8x91 , CU101P10x40 , CU101P10x50 , CU101P10x60 , CU101P10x63 , CU101P10x87 , CU101P10x91 , CU101P12x40 , CU101P12x50 , CU101P12x60 , CU101P12x63 , CU101P12x87 , CU101P12x91 , CU101P14x40 , CU101P14x50 , CU101P14x60 , CU101P14x63 , CU101P14x87 , CU101P14x91 , CU101P15x40 , CU101P15x50 , CU101P15x60 , CU101P15x63 , CU101P15x87 , CU101P15x91 , CU101P15x100 , CU101P16x40 , CU101P16x50 , CU101P16x60 , CU101P16x63 , CU101P16x87 , CU101P16x91 , CU101P16x100 , CU101P18x50 , CU101P18x60 , CU101P18x63 , CU101P18x87 , CU101P18x91 , CU101P18x100 , CU101P20x50 , CU101P20x60 , CU101P20x63 , CU101P20x87 , CU101P20x91 , CU101P20x100 , ------- CU101F4*40 , CU101F5*40 , CU101F4*50 , CU101F5*50 , CU101F6*50 , CU101F6*60 , CU101F8*40 , CU101F8*50 , CU101F8*60 , CU101F8*63 , CU101F8*87 , CU101F8*91 , CU101F10*40 , CU101F10*50 , CU101F10*60 , CU101F10*63 , CU101F10*87 , CU101F10*91 , CU101F12*40 , CU101F12*50 , CU101F12*60 , CU101F12*63 , CU101F12*87 , CU101F12*91 , CU101F14*40 , CU101F14*50 , CU101F14*60 , CU101F14*63 , CU101F14*87 , CU101F14*91 , CU101F15*40 , CU101F15*50 , CU101F15*60 , CU101F15*63 , CU101F15*87 , CU101F15*91 , CU101F15*100 , CU101F16*40 , CU101F16*50 , CU101F16*60 , CU101F16*63 , CU101F16*87 , CU101F16*91 , CU101F16*100 , CU101F18*50 , CU101F18*60 , CU101F18*63 , CU101F18*87 , CU101F18*91 , CU101F18*100 , CU101F20*50 , CU101F20*60 , CU101F20*63 , CU101F20*87 , CU101F20*91 , CU101F20*100 , CU101G4*40 , CU101G5*40 , CU101G4*50 , CU101G5*50 , CU101G6*50 , CU101G6*60 , CU101G8*40 , CU101G8*50 , CU101G8*60 , CU101G8*63 , CU101G8*87 , CU101G8*91 , CU101G10*40 , CU101G10*50 , CU101G10*60 , CU101G10*63 , CU101G10*87 , CU101G10*91 , CU101G12*40 , CU101G12*50 , CU101G12*60 , CU101G12*63 , CU101G12*87 , CU101G12*91 , CU101G14*40 , CU101G14*50 , CU101G14*60 , CU101G14*63 , CU101G14*87 , CU101G14*91 , CU101G15*40 , CU101G15*50 , CU101G15*60 , CU101G15*63 , CU101G15*87 , CU101G15*91 , CU101G15*100 , CU101G16*40 , CU101G16*50 , CU101G16*60 , CU101G16*63 , CU101G16*87 , CU101G16*91 , CU101G16*100 , CU101G18*50 , CU101G18*60 , CU101G18*63 , CU101G18*87 , CU101G18*91 , CU101G18*100 , CU101G20*50 , CU101G20*60 , CU101G20*63 , CU101G20*87 , CU101G20*91 , CU101G20*100 , CU101P4*40 , CU101P5*40 , CU101P4*50 , CU101P5*50 , CU101P6*50 , CU101P6*60 , CU101P8*40 , CU101P8*50 , CU101P8*60 , CU101P8*63 , CU101P8*87 , CU101P8*91 , CU101P10*40 , CU101P10*50 , CU101P10*60 , CU101P10*63 , CU101P10*87 , CU101P10*91 , CU101P12*40 , CU101P12*50 , CU101P12*60 , CU101P12*63 , CU101P12*87 , CU101P12*91 , CU101P14*40 , CU101P14*50 , CU101P14*60 , CU101P14*63 , CU101P14*87 , CU101P14*91 , CU101P15*40 , CU101P15*50 , CU101P15*60 , CU101P15*63 , CU101P15*87 , CU101P15*91 , CU101P15*100 , CU101P16*40 , CU101P16*50 , CU101P16*60 , CU101P16*63 , CU101P16*87 , CU101P16*91 , CU101P16*100 , CU101P18*50 , CU101P18*60 , CU101P18*63 , CU101P18*87 , CU101P18*91 , CU101P18*100 , CU101P20*50 , CU101P20*60 , CU101P20*63 , CU101P20*87 , CU101P20*91 , CU101P20*100 , SN COATED CU PILLAR , W99U27.5x63 , 920-CG9010U12X60 , ------- SOLDER PIN PB90/SN10 , CC9010 , TOP LINE CCGA_PB90-SN10 , COLOUM , COLOMB , WRAP SPRING , SOLDER COLOUMNS , Sn10/Pb90 SOLDER COLUMNS , Pb90/Sn10 COPPER WRAP COLUMN , Sn10/Pb90 COPPER WRAP COLUMN , COLUMNAR , OFE-CDA101 , OFE CDA101 , OFE-OFHC, OFE - OFHC , 812870 , 812871 , 812872 , 812873 , 812910 , 812911 , 812912 , 812913 , 812950 , 812951 , 812952 , 812953 , 812990 , 812991 , 812992 , 812993 , 815870 , 815871 , 815872 , 815873 , 815910 , 815911 , 815912 , 815913 , 815950 , 815951 , 815952 , 815953 , 815990 , 815991 , 815992 , 815993 , 820870 , 820871 , 820872 , 820873 , 820910 , 820911 , 820912 , 820913 , 820950 , 820951 , 820952 , 820953 , 820990 , 820991 , 820992 , 820993 , ---- 512870 , 512871 , 512872 , 512873 , 512910 , 512911 , 512912 , 512913 , 512950 , 512951 , 512952 , 512953 , 512990 , 512991 , 512992 , 512993 , 515870 , 515871 , 515872 , 515873 , 515910 , 515911 , 515912 , 515913 , 515950 , 515951 , 515952 , 515953 , 515990 , 515991 , 515992 , 515993 , 516870 , 516871 , 516872 , 516873 , 516910 , 516911 , 516912 , 516913 , 516950 , 516951 , 516952 , 516953 , 516990 , 516991 , 516992 , 516993 , 520870 , 520871 , 520872 , 520873 , 520910 , 520911 , 520912 , 520913 , 520950 , 520951 , 520952 , 520953 , 520990 , 520991 , 520992 , 520993 , ---- 012870 , 012871 , 012872 , 012873 , 012910 , 012911 , 012912 , 012913 , 012950 , 012901 , 012952 , 012953 , 012990 , 012991 , 012992 , 012993 , 015870 , 015871 , 015872 , 015873 , 015910 , 015911 , 015912 , 015913 , 015950 , 015901 , 015952 , 015953 , 015990 , 015991 , 015992 , 015993 , 020870 , 020871 , 020872 , 020873 , 020910 , 020911 , 020912 , 020913 , 020950 , 020951 , 020902 , 020953 , 020990 , 020991 , 020992 , 020993 , ---- 908870 , 908871 , 908872 , 908873 , 908910 , 908911 , 908912 , 908913 , 908950 , 908951 , 908952 , 908953 , 908990 , 908991 , 908992 , 908993 , 910870 , 910871 , 910872 , 910873 , 910910 , 910911 , 910912 , 910913 , 910950 , 910951 , 910952 , 910953 , 910990 , 910991 , 910992 , 910993 , 912870 , 912871 , 912872 , 912873 , 912910 , 912911 , 912912 , 912913 , 912950 , 912951 , 912952 , 912953 , 912990 , 912991 , 912992 , 912993 , 915870 , 915871 , 915872 , 915873 , 915910 , 915911 , 915912 , 915913 , 915950 , 915951 , 915952 , 915953 , 915990 , 915991 , 915992 , 915993 , 920870 , 920871 , 920872 , 920873 , 920910 , 920911 , 920912 , 920913 , 920950 , 920951 , 920952 , 920953 , 920990 , 920991 , 920992 , 920993 , 922870 , 922871 , 922872 , 922873

	CCGA Columns

Catalog • What is? • FEA • DCR • CCGA Packages • Library • Video • Materials • Interposer • MCS Micro-coil Spring • Tray • Attachment Tools • Flip-Pack®



Fig.1 Pb90/Sn10 Plain Column Click Photo	Fig.2 Pb80/Sn20 Column with Cu wrap Click Photo 1 • 2 • 3	Fig.3 NASA Invented Micro Coil Spring Click for details	Fig.4 Copper Column Click for details	Fig.5 Cu Braided Column U.S. Patent 10,477,698 Next Generation Solder Column


About Columns • MIL-STD-883L 3.3.6 • Pull Stength: MIL-STD-883K TM2038
TopLine offers a wide range solder columns to meet your needs. Typical solder core materials include both Pb90/Sn10 as well as Pb80/Sn20. We wind copper ribbon around the columns to increase reliability. After winding, the column is coated with Sn63/Pb37 hot solder. We can provide columns with a variety of diameters and lengths. A choice of different solder cores and copper ribbon thicknesses are available. Solder core materials from 0.20~0.89mm (8~35mils) and copper ribbon thickness from 0.0127~0.038mm (0.5 ~ 1.5mils) are readily available. We can provide custom size columns to meet your project requirements. The tables below are just a small example of the column sizes we offer. Contact TopLine to discuss your specific needs.

Copper Wrap Columns
TopLine offers columns with Tin-Lead as well as Lead Free solder cores. Contact TopLine to discuss your specific needs.

Why Columns?
Solder columns are 10x more reliable that solder balls when attaching large size ceramic IC packages to FR4 PC Boards operating in harsh environments. The large CTE (Coefficient of Thermal Expansion) mismatch of ceramic puts stress on the interconnections (I/O) over wide temperature cycles. The CTE of a ceramic alumina Al₂O₃ IC package is about 6.7ppm/°C. The CTE of organic boards, such as Polyimide or FR4 is roughly 17.5ppm/°C. Therefore, the amount of CTE mismatch between ceramic materials and organic boards is roughly 10ppm/°C. The corners of a large 50x50mm ceramic package might twist as much as ±70µm (±2.7mils) over temperature swings of 100°C. Eventually, the connections between the ceramic IC and the mother board will break over time enduring thousands of temperature cycles. Solder columns are compliant and absorb CTE mismatch, thereby lengthening the life of the circuit.


Plain Pb90/Sn10 Traditional Columns
Fig.	Alloy	Column Ø Diameter ±0.025mm	Column Length ±0.050mm	CCGA Pitch	Copper Cu Ribbon	Part Number	Drawing	360° Rotatable Solidworks Model
Fig. 1	Pb90/Sn10 "U" Unplated	Ø 0.51mm (Ø 0.020")	2.21mm (0.087")	1.0mm~ 1.27mm	None	CG9010U20x87	902087	360 ° Model
			2.31mm (0.091")	1.0mm~ 1.27mm	None	CG9010U20x91	902091	360 ° Model
			2.54mm (0.100")	1.0mm~ 1.27mm	None	CG9010U20x100	902099	360 ° Model

		Ø 0.20mm (Ø 0.008")	1.0mm (0.040")	0.50mm	None	CG9010U8x40	900840	360 ° Model
		Ø 0.25mm (Ø 0.010")	1.27mm (0.050")	0.50mm	None	CG9010U10x50	901050	360 ° Model
		Ø 0.30mm (Ø 0.012")	1.50mm (0.060")	0.80mm	None	CG9010U12x60	901260	360 ° Model
		Ø 0.38mm (Ø 0.015")	2.21mm (0.087")	1.0mm	None	CG9010U15x87	901587	360 ° Model
		Ø All	All	All	None	CG9010 Series	900001	360 ° Model
_______________________
Note 1: Contact TopLine for other Diameter and Length available, including Copper Wrap Pb90/Sn10 columns.
Note 2: Pb90/Sn10 columns are RoHS compliant based on an exemption for high melting temperature solder.
Note 3: Reference two types of Pb90/Sn10 columns made by IBM CAST and WIRE.
Note 4: Example new packaging in SMT Carrier Tape for pick and place mounting machine. Carrier Tape.
Note 5. Animated Finite Element Analysis (FEA) Strain on plain column under CTE mismatch.

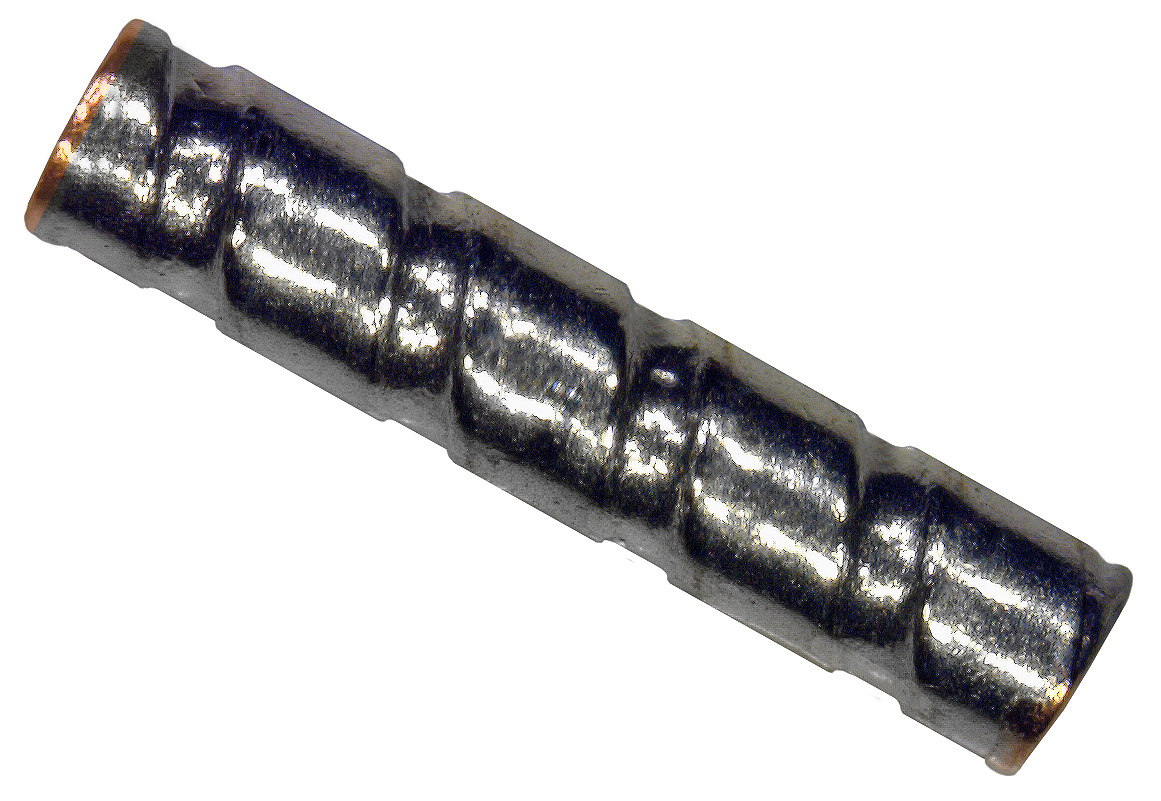

Copper Wrapped Pb80/Sn20 Columns • Size Parameter
Fig.	Alloy	Column Ø Diameter ±0.05mm	Column Length ±0.05mm	Pitch Application	Solder Core ØDiameter	Copper Cu Ribbon Thickness	Part Number	Drawing	360° Rotatable Solidworks Model
Fig. 2A	Pb80/Sn20 "C" Plating	Ø 0.30mm (Ø 0.012")	1.27mm (0.050")	Pitch 0.8~1.0mm Plastic BGA/LGA Pad Ø 0.40~0.45mm	Ø 0.25mm (Ø 0.010")	0.025mm (1 mil)	CG8020C12x50	801250	360 ° Model
			1.52mm (0.060")				CG8020C12x60	801260	360 ° Model
			1.78mm (0.070")				CG8020C12x70	801270	360 ° Model
			2.21mm (0.087")				CG8020C12x87	801287	360 ° Model
			2.31mm (0.091")				CG8020C12x91	801291	360 ° Model

		Ø 0.38mm (Ø 0.015")	2.21mm (0.087")	Pitch 1.0mm Plastic BGA/LGA Pad Ø 0.50mm	Ø 0.30mm (Ø 0.012")	0.025mm (1 mil)	CG8020C15x87	801587	360 ° Model
			2.31mm (0.091")				CG8020C15x91	801591	360 ° Model
			2.41mm (0.095")				CG8020C15x95	801595	360 ° Model
			2.54mm (0.100")				CG8020C15x100	801599	360 ° Model
			3.81mm (0.150")				CG8020C15x150	801597	360 ° Model

		Ø 0.51mm (Ø 0.020")	2.21mm (0.087")	Pitch 1.0mm~ 1.27mm Ceramic CCGA Pad Ø 0.80mm	Ø 0.40mm (Ø 0.0160")	0.038mm (1.5 mil)	CG8020C20x87	802087	360 ° Model
			2.31mm (0.091")				CG8020C20x91	802091	360 ° Model
			2.41mm (0.095")				CG8020C20x95	802095	360 ° Model
			2.54mm (0.100")				CG8020C20x100	802099	360 ° Model
			3.51mm (0.138")				CG8020C20x138	802092	360 ° Model
			3.70mm (0.145")				CG8020C20x145	802096	360 ° Model
			3.81mm (0.150")				CG8020C20x150	802097	360 ° Model

		Ø 0.56mm (Ø 0.022")	2.21mm (0.087")	Pitch 1.27mm Ceramic CCGA Pad Ø 0.86mm	Ø 0.45mm (Ø 0.0160")	0.038mm (1.5 mil)	CG8020C22x87	802287	360 ° Model

Note 1: Animated Finite Element Analysis (FEA) Strain on Copper Wrapped Column under CTE mismatch. Note 2: Contact TopLine for other ØDiameter and Length available.

Copper Wrapped Pb90/Sn10 Columns NEW
Fig.	Alloy	Column Ø Diameter ±0.05mm	Column Length ±0.05mm	Pitch Application	Solder Core ØDiameter	Copper Cu Ribbon Thickness	Part Number	Drawing	360° Rotatable Solidworks Model
Fig. 2B	Pb90/Sn10 "C" Plating	Ø 0.30mm (Ø 0.012")	2.31mm (0.091")	Pitch 0.8mm Plastic BGA/LGA Pad Ø 0.40~0.50mm	Ø 0.25mm (Ø 0.010")	0.025mm (1.0 mil)	CG9010C12x91	911291	360 ° Model
		Ø 0.30mm (Ø 0.012")	2.54mm (0.100")	Pitch 0.8mm Plastic BGA/LGA Pad Ø 0.40~0.50mm	Ø 0.25mm (Ø 0.010")	0.025mm (1.0 mil)	CG9010C12x100	911299	360 ° Model
		Ø 0.38mm (Ø 0.015")	2.31mm (0.091")	Pitch 1.0mm Plastic BGA/LGA Pad Ø 0.50~0.60mm	Ø 0.30mm (Ø 0.012")	0.025mm (1.0 mil)	CG9010C15x91	911591	360 ° Model
		Ø 0.38mm (Ø 0.015")	2.54mm (0.100")	Pitch 1.0mm Plastic BGA/LGA Pad Ø 0.50~0.60mm	Ø 0.30mm (Ø 0.012")	0.025mm (1.0 mil)	CG9010C15x100	911599	360 ° Model
		Ø 0.51mm (Ø 0.020")	2.31mm (0.091")	Pitch 1.0mm Plastic BGA/LGA Pad Ø 0.76~0.80mm	Ø 0.40mm (Ø 0.016")	0.038mm (1.5 mil)	CG9010C20x91	912091	360 ° Model
		Ø 0.51mm (Ø 0.020")	2.54mm (0.100")	Pitch 1.0mm Plastic BGA/LGA Pad Ø 0.76~0.80mm	Ø 0.40mm (Ø 0.016")	0.038mm (1.5 mil)	CG9010C20x100	912099	360 ° Model
		Ø 0.51mm (Ø 0.020")	3.81mm (0.150")	Pitch 1.0mm Plastic BGA/LGA Pad Ø 0.76~0.80mm	Ø 0.40mm (Ø 0.016")	0.038mm (1.5 mil)	CG9010C20x150	912097	360 ° Model

Note 1: Animated Finite Element Analysis (FEA) Strain on Copper Wrapped Column under CTE mismatch. Note 2: Contact TopLine for other ØDiameter and Length available. Note 3: Copper wrapped Pb90/Sn10 provides wider process window for secondary assembly to PWB board.

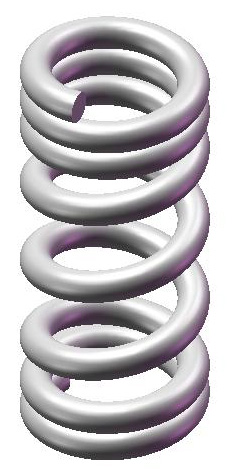

NASA Invented Micro-coil Spring
Fig.	Alloy	Spring Ø Diameter ±0.025mm	Free Length ±0.050mm	CCGA Pitch	Plating	Wire ØDia	Part Number	Drawing	360° Rotatable Solidworks Model
Fig. 3	Micro-Coil BeCu C17200 Alloy 25	Ø 0.40mm (Ø 0.016")	1.0mm (0.040")	1.0mm Plastic BGA/LGA	Sn60/Pb40	0.0635mm (Ø 0.0025")	MCS172P16x40	171640	360 ° Model
		Ø 0.40mm (Ø 0.016")	1.0mm (0.040")	1.0mm Plastic BGA/LGA	Lead Free Au 10 µ-inch (0.25µm)	0.0635mm (Ø 0.0025")	MCS172G16x40	191640	360 ° Model
		Ø 0.51mm (Ø 0.020")	1.27mm (0.050")	1.0~1.27mm Standard Ceramic CCGA	Sn60/Pb40	0.086mm (Ø 0.0034")	MCS172P20x50	172050	360 ° Model
		Ø 0.51mm (Ø 0.020")	1.27mm (0.050")	1.0~1.27mm Lead Free	Lead Free Au 10 µ-inch (0.25µm))	0.086mm (Ø 0.0034")	MCS172G20x50	192050	360 ° Model

Note: Contact TopLine for ØDiameter and Length available.

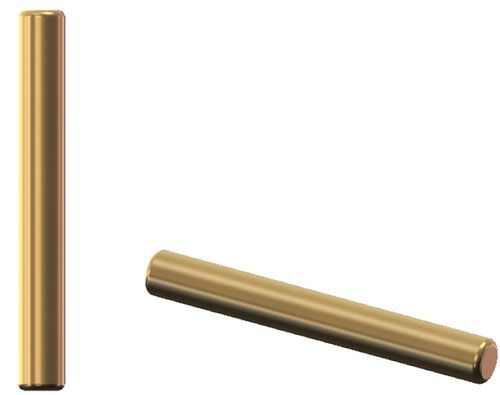

Copper Column (Lead Free RoHS)
Fig.	Alloy	Column Ø Diameter ±0.03mm	Column Length ±0.05mm	Plating Coating	AWG Nearest Equivalent	Part Number	Drawing	360° Rotatable Solidworks Model
Fig. 4	Copper Alloy OFE - 99.9% G Plating Ni-Gold Coated Ni/Au RoHS	Ø 0.20mm (Ø 0.008")	0.50mm (0.020")	NiAu	AWG 32	CU110G8x20A	600820	360 ° Model
		Ø 0.20mm (Ø 0.008")	0.63mm (0.025")	NiAu	AWG 32	CU110G8x25A	600825	360 ° Model
		Ø 0.20mm (Ø 0.008")	0.80mm (0.031")	NiAu	AWG 32	CU110G8x31A	600831	360 ° Model
		Ø 0.20mm (Ø 0.008")	1.00mm (0.040")	NiAu	AWG 32	CU110G8x40A	600840	360 ° Model
		Ø 0.20mm (Ø 0.008")	1.27mm (0.050")	NiAu	AWG 32	CU110G8x50A	600850	360 ° Model
		Ø 0.20mm (Ø 0.008")	1.5mm (0.060")	NiAu	AWG 32	CU110G8x60A	600860	360 ° Model
		Ø 0.20mm (Ø 0.008")	1.6mm (0.063")	NiAu	AWG 32	CU110G8x63A	600863	360 ° Model
		Ø 0.20mm (Ø 0.008")	1.9mm (0.075")	NiAu	AWG 32	CU110G8x75A	600875	360 ° Model
		Ø 0.20mm (Ø 0.008")	2.2mm (0.087")	NiAu	AWG 32	CU110G8x87A	600887	360 ° Model

		Ø 0.25mm (Ø 0.010")	0.50mm (0.020")	NiAu	AWG 30	CU110G10x20A	601025	360 ° Model
		Ø 0.25mm (Ø 0.010")	0.63mm (0.025")	NiAu	AWG 30	CU110G10x25A	601025	360 ° Model
		Ø 0.25mm (Ø 0.010")	0.80mm (0.031")	NiAu	AWG 30	CU110G10x31A	601031	360 ° Model
		Ø 0.25mm (Ø 0.010")	1.00mm (0.040")	NiAu	AWG 30	CU110G10x40A	601040	360 ° Model
		Ø 0.25mm (Ø 0.010")	1.27mm (0.050")	NiAu	AWG 30	CU110G10x50A	601050	360 ° Model
		Ø 0.25mm (Ø 0.010")	1.5mm (0.060")	NiAu	AWG 30	CU110G10x60A	601060	360 ° Model
		Ø 0.25mm (Ø 0.010")	1.6mm (0.063")	NiAu	AWG 30	CU110G10x63A	601063	360 ° Model
		Ø 0.25mm (Ø 0.010")	1.9mm (0.075")	NiAu	AWG 30	CU110G10x75A	601075	360 ° Model
		Ø 0.25mm (Ø 0.010")	2.2mm (0.087")	NiAu	AWG 30	CU110G10x87A	601087	360 ° Model

		Ø 0.30mm (Ø 0.012")	0.50mm (0.020")	NiAu	AWG 29	CU110G12x20A	601225	360 ° Model
		Ø 0.30mm (Ø 0.012")	0.63mm (0.025")	NiAu	AWG 29	CU110G12x25A	601225	360 ° Model
		Ø 0.30mm (Ø 0.012")	0.80mm (0.031")	NiAu	AWG 29	CU110G12x31A	601231	360 ° Model
		Ø 0.30mm (Ø 0.012")	1.00mm (0.040")	NiAu	AWG 29	CU110G12x40A	601240	360 ° Model
		Ø 0.30mm (Ø 0.012")	1.27mm (0.050")	NiAu	AWG 29	CU110G12x50A	601250	360 ° Model
		Ø 0.30mm (Ø 0.012")	1.5mm (0.060")	NiAu	AWG 29	CU110G12x60A	601260	360 ° Model
		Ø 0.30mm (Ø 0.012")	1.6mm (0.063")	NiAu	AWG 29	CU110G12x63A	601263	360 ° Model
		Ø 0.30mm (Ø 0.012")	1.9mm (0.075")	NiAu	AWG 29	CU110G12x75A	601275	360 ° Model
		Ø 0.30mm (Ø 0.012")	2.2mm (0.087")	NiAu	AWG 29	CU110G12x87A	601287	360 ° Model

Note: Contact TopLine for other ØDiameter (0.10~0.50mm) and Length (0.25~3.5mm) available.
High frequency applications. Excellent thermal conductivity. Transfers heat from CCGA to ground layers in PCB.

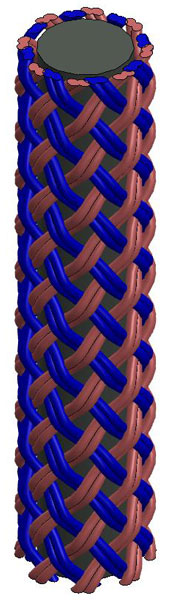

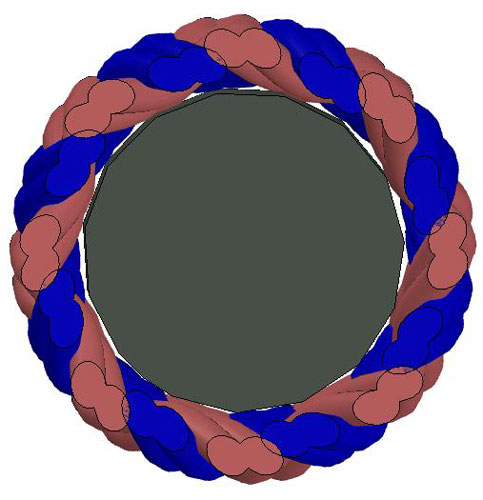

Copper Braided Solder Columns U.S. PATENT 10,477,698 • More About
Fig.	Alloy	Column Ø Diameter ±0.05mm	Column Length ±0.05mm	Core Material	Solder Core Ø Diameter	Copper Cu Ø Diameter	Copper Nbr Strands	Part Number	Drawing	360° Rotatable Solidworks Model
Fig. 5	Copper Braided Column Lead Free and Tin-Lead	Ø 0.30mm (Ø 0.012")	2.21mm (0.087")	Lead Free	Ø 0.20mm (Ø 0.008")	0.025mm (1.0 mil)	16X	BC305H12x87	361287	360 ° Model
				Pb80/Sn20	Ø 0.20mm (Ø 0.008")	0.025mm (1.0 mil)	16X	BC8020B12x87	881287
				Pb90/Sn10	Ø 0.20mm (Ø 0.008")	0.025mm (1.0 mil)	16X	BC9010B12x87	781287

		Ø 0.35mm (Ø 0.014")	2.21mm (0.087")	Lead Free	Ø 0.25mm (Ø 0.010")	0.025mm (1.0 mil)	16X	BC305H14x87	361487		360 ° Model
				Pb80/Sn20	Ø 0.25mm (Ø 0.010")	0.025mm (1.0 mil)	16X	BC8020B14x87	881487
				Pb90/Sn10	Ø 0.25mm (Ø 0.010")	0.025mm (1.0 mil)	16X	BC9010B14x87	781487

		Ø 0.40mm (Ø 0.016")	2.21mm (0.087")	Lead Free	Ø 0.25mm (Ø 0.010")	0.038mm (1.5 mil)	16X	BC305H16x87	361687	360 ° Model
				Pb80/Sn20 Core	Ø 0.25mm (Ø 0.010")	0.038mm (1.5 mil)	16X	BC8020B16x87	881687
				Pb90/Sn10 Core	Ø 0.25mm (Ø 0.010")	0.038mm (1.5 mil)	16X	BC9010B16x87	781687

		Ø 0.45mm (Ø 0.018")	2.21mm (0.087")	Lead Free	Ø 0.30mm (Ø 0.012")	0.038mm (1.5 mil)	16X	BC305H18x87	361887		360 ° Model
				Pb80/Sn20 Core	Ø 0.30mm (Ø 0.012")	0.038mm (1.5 mil)	16X	BC8020B18x87	881887
				Pb90/Sn10 Core	Ø 0.30mm (Ø 0.012")	0.038mm (1.5 mil)	16X	BC9010B18x87	781887

		Ø 0.50mm (Ø 0.020")	2.21mm (0.087")	Lead Free	Ø 0.35mm (Ø 0.014")	0.038mm (1.5 mil)	16X	BC305H20x87	362087	360 ° Model
				Pb80/Sn20 Core	Ø 0.35mm (Ø 0.014")	0.038mm (1.5 mil)	16X	BC8020B20x87	882087
				Pb90/Sn10 Core	Ø 0.35mm (Ø 0.014")	0.038mm (1.5 mil)	16X	BC9010B20x87	782087

Note: Contact TopLine for other ØDiameter and Length available up to 3.8mm Long.
Benefits of New Copper Braided Solder Column: 1. Non-collapsible, robust and compliant structure. Use for reducing stress caused by CTE mismatch. 2. New Lead Free Braided Columns available for COTS Eu-RoHS applications 3. The Exoskeleton Copper Sleeve acts as a heat pipe to conduct heat from underside of chip. Smaller size and lighter package. 4. Small diameter Braided Columns for fine-pitch devices. Smaller size and lighter package. 5. Available in several material sets: Tin-Lead Mil/Aerospace: Pb80/Sn20, Pb90/Sn10, HMP and RoHS: Lead Free for COTS applications. 6. Animated Finite Element Analysis (FEA) Strain on Copper Wrapped Column under CTE mismatch.

AWG Size Chart (Reference Only)

AWG
Gauge

Mil

Inch

Micron
μm

Millimeter
mm

AWG 24

20 mil

0.020"

500um

0.50mm

AWG 25

18 mil

0.018"

450um

0.45mm

AWG 26

16 mil

0.016"

400um

0.40mm

AWG 27

14 mil

0.014"

360um

0.36mm

AWG 28

12.5 mil

0.0125"

320um

0.32mm

AWG 30

10 mil

0.010"

250um

0.25mm

AWG 32

8 mil

0.008"

200um

0.20mm

AWG 34

6 mil

0.006"

150um

0.15mm

AWG 36

5 mil

0.005"

125um

0.125mm

AWG 38

4 mil

0.004"

100um

0.10mm

AWG 40

3 mil

0.003"

80um

0.08mm

AWG 41

2.8 mil

0.0028"

70um

0.07mm

AWG 42

2.5 mil

0.0025"

60um

0.06mm

AWG 44

2.0 mil

0.0020"

50um

0.05mm

AWG 46

1.6 mil

0.0016"

40um

0.04mm

AWG 47

1.4 mil

0.0014"

35um

0.035mm

AWG 48

1.25 mil

0.00125"

32um

0.032mm

AWG 49

1.1 mil

0.0011"

28um

0.028mm

AWG 50

1.0 mil

0.0010"

25um

0.025mm

AWG 51

0.88 mil

0.00088"

22um

0.022mm

AWG 52

0.78 mil

0.00078"

20um

0.020mm

AWG 53

0.70 mil

0.00070"

18um

0.018mm

AWG 54

0.62 mil

0.00062"

16um

0.016mm

AWG 55

0.55 mil

0.00055"

14um

0.014mm

AWG 56

0.49 mil

0.00049"

12.5um

0.0125mm

Note 1: Sizes listed in table are rounded (up or down) for simplicity and are not guaranteed for accuracy.

Note 2: Refer to ASTM standard B258 for accurate dimensions.

Note 3: AWG is the American Wire Gauge developed in 1857, predominantly for use in North America for electrically conducting wire.

Note 3: Tanaka wire is made to the metric standard.

Solidworks® e-Drawings software to view rotatable: Download

Outline Drawing
Fig. 1		Fig. 2

Pb90/Sn10 Solder Column Click Photo		Pb80/Sn20 Traditional Pb85/Sn15 New Pb90/Sn10 New Solder Column with Cu Wrap Click Photo to see Sn63/Pb37 coating over the column Click Photo


Column Part Number System
CG	8020	C	20	X	87	−	Option
Column Type	Core Alloy	Coating	Ø Diameter Mils	Packaging	Length Mils		Option
CG = Solder Column MCS = Micro Coil Spring BC = Braided Column CC = Copper Core Column CU = Copper Pillar Column W = Tungsten (W) Column	Copper Wrap: 8020 = Pb80/Sn20 8515 = Pb85/Sn15 9010 = Pb90/Sn10 Braided Column: U.S. Patent 10,477,698 Tin-Lead 8020 = Pb80/Sn20 9010 = Pb90/Sn10 935 = Pb93.5/Sn5/Ag1.5 Lead Free (RoHS) 5 = Sn95/Sb5 10 = Sn90/Sb10 Metal Core: 101 = Cu OFHC (CDA101) 110 = Cu EFTEC-3 Soft (C14410) 194 = Cu EFTEC-194 Hard Cu97.4/Fe2.4/Zn.13 (C194) 9999 = Gold Au (4N) Micro-Coil Spring: 172 = BeCu (C172) Cu98% Be1.8% Co+Ni0.2% Elastomer Core: 000 = Under Development 99 = Tungsten (W) 99.95% Under Development	Column Cu Wrap(CG) C = Sn63/Pb37 (Tin-Lead) T = SAC (RoHS) Plain Column(CG) U = Unplated - Bare Micro-coil Spring (MCS) P = Sn60/Pb40 G = Ni/Au (RoHS) Cu Pillar/Column (CU) G = NiAu (RoHS) Copper Core Column (CC) A = Pb90/Sn10 Ribbon K = SCN305 Ribbon (RoHS) Sn96.5/Cu0.8/Ag0.7/Bi2.0 Coated Braided Column (BC) Tin-Lead D = Sn63/Pb37 32Cu B = Sn63/Pb37 16Cu L = Sn63/Pb37 8Cu Lead-Free (RoHS)* R = SAC 32Cu H = SAC 16Cu J = SAC 8Cu Elastomer Core* W = SAC 16Cu Y = SAC 8Cu Tungsten Column (W) U = Unplated (RoHS)	Solder Column 6 = 0.15mm 7 = 0.18mm 8 = 0.20mm 10 = 0.25mm 11 = 0.28mm 12 = 0.30mm 13 = 0.33mm 14 = 0.35mm 15 = 0.38mm 16 = 0.40mm 20 = 0.50mm 22 = 0.56mm 35 = 0.89mm Micro Coil Spring 10 = 0.25mm 12 = 0.30mm 14 = 0.35mm 16 = 0.40mm 18 = 0.45mm 20 = 0.50mm Copper Column 6 = 0.15mm 7 = 0.18mm 8 = 0.20mm 9 = 0.23mm 10 = 0.25mm 12 = 0.30mm 14 = 0.35mm 15 = 0.38mm 16 = 0.40mm 18 = 0.45mm 20 = 0.50mm 30 = 0.75mm Tungsten (W) Column 20 = 0.50mm 24 = 0.60mm 27 = 0.70mm 31 = 0.80mm 40 = 1.0mm	Standard: X = Jar Special: J = JEDEC Tray T = 4" Tray W = 2" Tray E = Tape & Reel	Solder Column 25 = 0.63mm 31 = 0.80mm 40 = 1.00mm 50 = 1.27mm 63 = 1.60mm 75 = 1.91mm 87 = 2.21mm 91 = 2.31mm 93 = 2.36mm 95 = 2.41mm 100 = 2.54mm 138 = 3.51mm 150 = 3.81mm Micro Coil Spring 25 = 0.65mm 30 = 0.75mm 33 = 0.85mm 35 = 0.90mm 40 = 1.00mm 50 = 1.27mm Copper Columns 20 = 0.50mm 25 = 0.63mm 30 = 0.75mm 31 = 0.80mm 40 = 1.00mm 50 = 1.27mm 63 = 1.60mm 73 = 1.85mm 87 = 2.21mm Other Length Available Tungsten (W) Columns 40 = 1.00mm 50 = 1.27mm 63 = 1.60mm 87 = 2.21mm		Blank=Standard A to Z = Custom


Column DP# Order Number
8	20	87	0
Column Type	Ø Diameter Mils	Length Mils	Package Quantity
Pb80/Sn20 Solder Column (CG): 8 = Cu Wrap + Sn63/Pb37 (C) Pb90/Sn10 Solder Column (CG): 9 = Unplated Plain Column (U) 0 = Cu Wrap Ribbon + Sn63/Pb37 (C) Braided Column (BC): U.S. Patent 10,477,698 4 = Cu Braid + Pb80/Sn20 Solder (B) 5 = Cu Braid + Lead Free Solder (H) 7 = Cu Braid + Pb90/Sn10 Solder (B) Micro-Coil Spring (MCS): 1 = Be-Cu C17200 Plated Sn60/Pb40 (P) 2 = Be-Cu C17200 Plated Ni/Au Gold (G) RoHS	Code • Diameter • Pitch 04 = Ø0.10mm (P 0.4mm) 05 = Ø0.13mm (P 0.5mm) 06 = Ø0.15mm (P 0.5mm) 08 = Ø0.20mm (P 0.5mm) 09 = Ø0.23mm (P 0.5mm) 10 = Ø0.25mm (P 0.65mm) 12 = Ø0.30mm (P 0.8mm) 13 = Ø0.33mm (P 0.8mm) 14 = Ø0.35mm (P 0.8mm) 15 = Ø0.38mm (P 1.0mm) 16 = Ø0.40mm (P 1.0mm) 17 = Ø0.43mm (P 1.0mm) 18 = Ø0.45mm (P 1.0mm) 20 = Ø0.50mm (P 1.0mm) 22 = Ø0.56mm (P 1.27mm) 30 = Ø0.75mm (P 1.27mm) 35 = Ø0.89mm (P ≥1.5mm)	Code • Length 20 = 0.50mm 25 = 0.63mm 30 = 0.75mm 31 = 0.80mm 35 = 0.90mm 40 = 1.00mm 50 = 1.27mm 63 = 1.60mm 73 = 1.85mm 75 = 1.91mm 87 = 2.21mm 91 = 2.31mm 93 = 2.36mm 99 = 2.54mm 95 = 2.41mm 98 = 2.80mm 94 = 3.05mm 92 = 3.51mm 96 = 3.70mm 97 = 3.81mm Other Lengths Available WIP 00 = 8" 12 = 12" 14 = 14"	Code • Qty 0 = Jar 100pcs 1 = Jar 1Kpcs 2 = Jar 5Kpcs 3 = Jar 10Kpcs 7 = Reel 2500pcs 8 = Tray 9 = Bulk WIP 0 = PLAIN 1 = WRAP 8 = DIP 9 = WAVE


Column Drawing Number
80	20	87
Column Type and Plating	Ø Diameter Mils	Length Mils
COPPER WRAP COLUMN (CG) Tin-Lead 80 = Pb80/Sn20 (C) 85 = Pb85/Sn15 (C) 91 = Pb90/Sn10 (C) Plain Solder Column (CG) Tin-Lead 90 = Pb90/Sn10 Unplated (U) Micro Coil Spring (MCS) 17 = BeCu + Sn60/Pb40 (P) 19 = BeCu + Ni/Au RoHS (G) Lead Free Cu Columns (RoHS): 60 = C14410 (EFTEC-3) + NiAu (G) 65 = C194 (EFTEC-194) + NiAu (G) Copper Core Solder Column (CU) Tin-Lead 34 = Cu Core + Pb90/Sn10 Ribbon(A) Lead Free (RoHS): 33 = Cu Core + SCN305 Ribbon (K) Gold 4N Column/Pillar (AU) 20 = Au Pillar Unplated (U) U.S. Patent 10,477,698 Copper Braided Column (BC) Lead Free Core (RoHS) 10 = Elastomer Core 16Cu (W) 11 = Elastomer Core 8Cu (Y) 94 = Sn90/Sb10 - 8Cu (J) 95 = Sn90/Sb10 - 16Cu (H) 96 = Sn95/Sb5 - 8Cu (J) 97 = Sn95/Sb5 - 16Cu (H) Tin-Lead Core 70 = Pb80/Sn20 - 8Cu (L) 71 = Pb80/Sn20 - 16Cu (B) 78 = Pb90/Sn10 - 16Cu (B) 73 = Pb90/Sn10 - 8Cu (L) 74 = Pb93.5/Sn5/Ag1.5 HMP - 16Cu (B) 75 = Pb80/Pb20 16BeCu C172 (B) 76 = Sn63/Pb37 Eutectic 16Cu (B) 77 = Sn63/Pb37 Eutectic 32Cu (D) 79 = Future . RoHS Exempt 92 = Pb90/Sn10 - 8Cu (J) 93 = Pb90/Sn10 - 16Cu (H) Tungsten (W) Column 99 = Pure 99.95% Unplated (U) RoHS Application Specific (ASIC) 89 = Customer Specific Assigned number	Diameter 04 = Ø0.10mm (P 0.4mm) 05 = Ø0.13mm (P 0.5mm) 06 = Ø0.15mm (P 0.5mm) 08 = Ø0.20mm (P 0.5mm) 09 = Ø0.23mm (P 0.5mm) 10 = Ø0.25mm (P 0.65mm) 12 = Ø0.30mm (P 0.8mm) 13 = Ø0.33mm (P 0.8mm) 14 = Ø0.35mm (P 0.8mm) 15 = Ø0.38mm (P 0.8mm) 16 = Ø0.40mm (P 1.0mm) 17 = Ø0.43mm (P 1.0mm) 18 = Ø0.45mm (P 1.0mm) 20 = Ø0.50mm (P 1.0mm) 22 = Ø0.56mm (P 1.27mm) 27 = Ø0.70mm (P 1.27mm) 30 = Ø0.75mm (P 1.27mm) 35 = Ø0.89mm (P ≥1.5mm)	Length 20 = 0.50mm 25 = 0.63mm 30 = 0.75mm 31 = 0.80mm 35 = 0.90mm 40 = 1.00mm 50 = 1.27mm 63 = 1.60mm 73 = 1.85mm 75 = 1.91mm 87 = 2.21mm 91 = 2.31mm 93 = 2.36mm 95 = 2.41mm 99 = 2.54mm 98 = 2.80mm 94 = 3.05mm 92 = 3.51mm 96 = 3.70mm 97 = 3.81mm Other Lengths Available
