CCGA Bracket
Corner Supports on PCB

Catalog   •   CCGA Packages  •   CCGA Library   •   PWB   •   MCS Micro-coil Spring   •   Columns   •   Flip-Pack   •   Trays   •   Tools

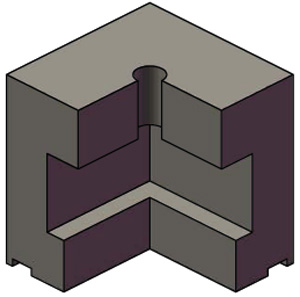

3D Model

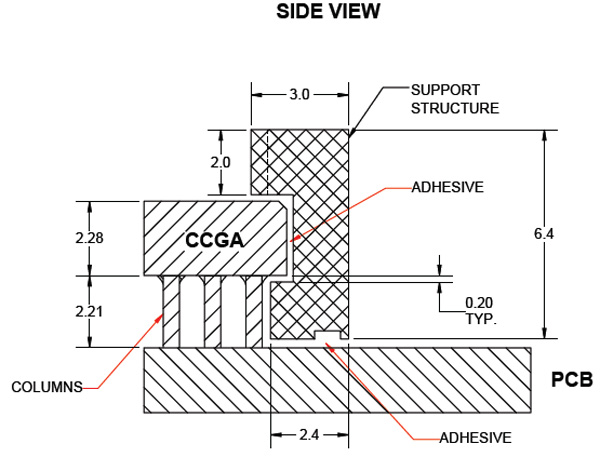

Click Section View

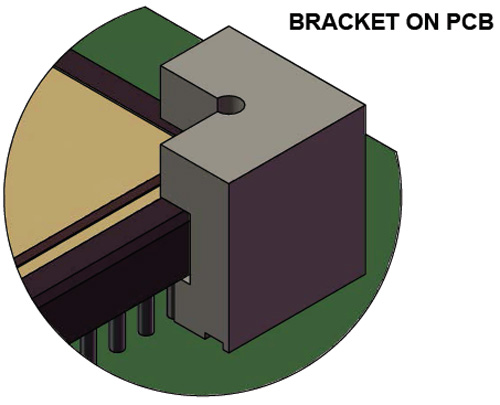

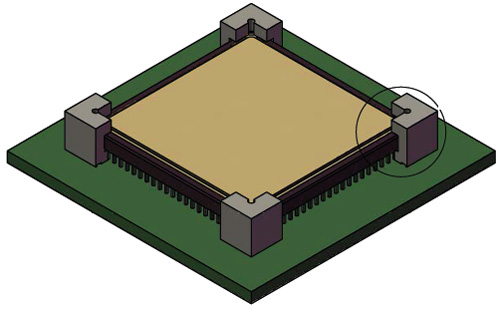

CCGA Corner Bracket Support: Corner supports for CCGA Package on PC Board. Attach to board and CCGA with 3M Scotch-WeldTM two part B/A (Base/Accelerator) Gray epoxy adhesive.

Features
  • Columns to 1752
  • CGA Size: 25mm to 45mm
  • Material: Customer requirement
  • CCGA Corner Bracket Support
    Connects CCGA to PCB
    Model Number Pins
    I/O
    Pitch
    Pad
    Matrix
    X/Y Size Column
    ØDia
    Column Length Device Type DWG Nbr Fig. 360°
    Solidworks
    Model
    C7-BRACKET-624-A 624 1.27mm 25x25 32.5x32.5mm Ø0.51mm
    20 mil
    2.21mm
    87mil
    CCGA
    Ceramic
    160004 Fig. 1 Model
    C7-BRACKET-1657-A 1657 1.0mm 41x41 42.5x42.5mm Ø0.51mm
    20 mil
    2.21mm
    87mil
    CCGA
    Ceramic
    16000x Fig. 1 Model
    Note 1: Contact TopLine for assistance for bracket configurations not shown above.
    Note 2: Column length: 1.0~2.54mm (40~100 mils).





    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    HS Code: 8311.30.3000 LEAD-TIN SOLDERS
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.



    Solidworks® e-Drawing viewer to enjoy 360° rotatable models. Click Here
