Colored IC Tray Clips
Anti-static - Reusable - Bakeable
Fits most JEDEC Matrix Trays.
For visual identification, sorting, aging, etc.


25mm (1.0") Outline Drawing

50mm (2.0") Outline Drawing

Quick Specs:
Antistatic - S.R. Ohm/SQ. 109~1011
Reusable and Bakeable 125°C
Select Many Colors
Standard Size: 25mm (1") Long
Special Size: 50mm (2") Long
Fits most JEDEC matrix IC trays

Use and Applications:
Quick visual identification
for sorting, aging, testing.

Use singly or mix for color-code system

Custom Laser Engraved Marking
Text: Letters and Numbers


Click Rotatable Model


How to Order - Part Numbers
Standard 25mm (1.0-inch) Colors
Order
Number
126001 126002 126003 126005 126006 126007 126009 126012 126013 126015 126016
  WHITE GREEN BLUE ORANGE PURPLE GOLD RED YELLOW BLACK SILVER BROWN

Special 50mm (2.0-inch) Colors
Order
Number
127001 127002 127003 127005 127006 127007 127009 127012 127013 127015 127016
  WHITE GREEN BLUE ORANGE PURPLE GOLD RED YELLOW BLACK SILVER BROWN
Laser Engraved Custom Marking Available: Letters and/or Numbers.
25mm (1.0-inch): 4 to 8 Characters Typical.
50mm (2.0-inch): 8 to 16 Characters Typical.

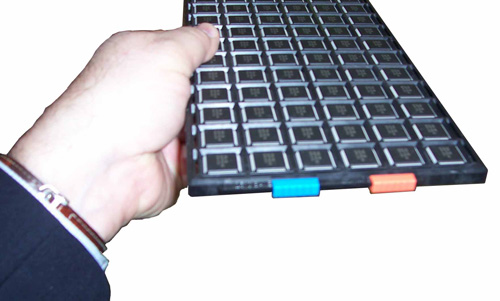

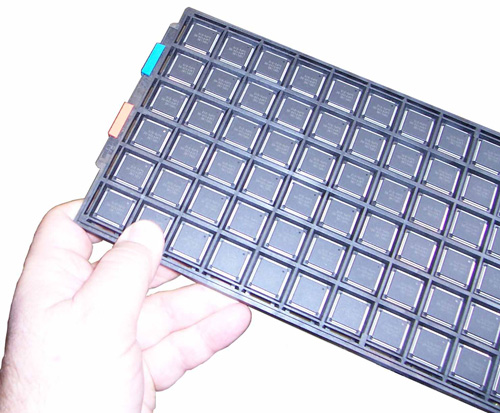

Snap on the clip at end of JEDEC matrix tray. Removable. Reusable. Bakeable.



Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.
Download
