MELF | |||
 | ||||
|
|
||||
| Go to--> Chip Menu MELF Square Ends Resistor Capacitor Tantalum Inductor AL Cap Crystal Array |
|
 Standard |
|||||
| Size (inch) |
Size (mm) |
Name | Qty on Reel |
Tape Width |
Order Number 7" Reel |
PDF Dwg |

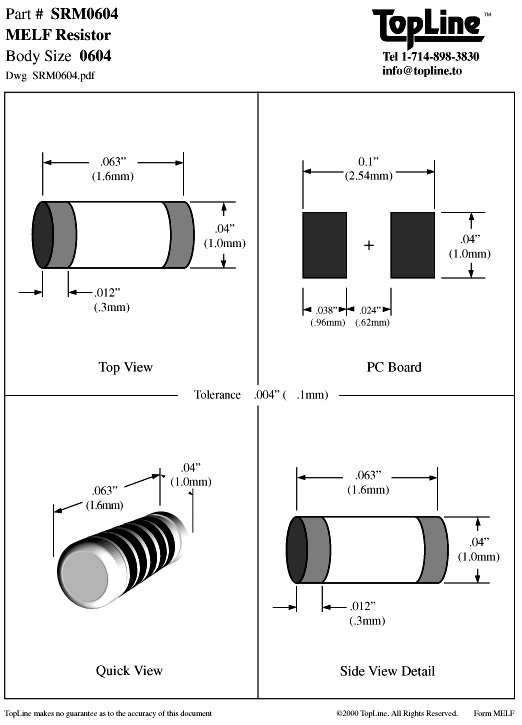

| 0604 | 1.6x1.0mm | micro-MELF | 3000 | 8mm | SRM0604E7A | |
| 0805 | 2.0x1.25mm | micro-MELF | 3000 | 8mm | SRM0805E7A | |
| 1206 | 3.2x1.6mm | mini-MELF | 3000 | 8mm | SRM1206E7P | |

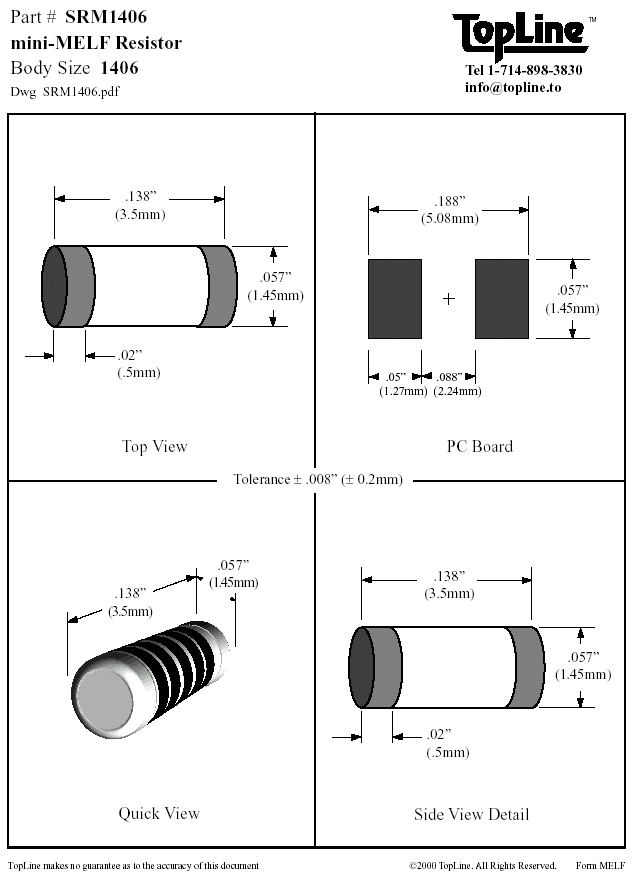

| 1406 | 3.5x1.45mm | mini-MELF | 3000 | 8mm | SRM1406E7P | |
| 2308 | 5.9x2.2mm | MELF | 1500 | 12mm | SRM2308E7A | |
Lead Free- Sn100 Tin |
||||||
| Size (inch) |
Size (mm) |
Name | Qty on Reel |
Tape Width |
Order Number 7" Reel |
PDF Dwg |
| 0805 | 2.0x1.25mm | micro-MELF | 3000 | 8mm | SRM0805E7A-TIN | |
| 1206 | 3.2x1.6mm | mini-MELF | 3000 | 8mm | SRM1206E7P-TIN | |
| 1406 | 3.5x1.45mm | mini-MELF | 3000 | 8mm | SRM1406E7P-TIN | |
| 2308 | 5.9x2.2mm | MELF | 2000 | 12mm | SRM2308E7A-TIN | |
| 3512 | 8.5x3.0mm | Maxi-MELF | 2500 | 16mm | SRM3512E13A-TIN | |
| 4216 | 10.5x4.0mm | Maxi-MELF | 2000 | 16mm | SRM4216E13A-TIN | |
Zero Ohm Lead Free - Sn100 Tin |
||||||
| Size (inch) |
Size (mm) |
Name | Qty on Reel |
Tape Width |
Order Number 7" Reel |
PDF Dwg |
| 0805 Zero Ohm |
2.0x1.25mm | micro-MELF | 3000 | 8mm | SRM0805E7A-ZERO-TIN | |
| 1206 Zero Ohm |
3.2x1.6mm | mini-MELF | 3000 | 8mm | SRM1206E7P-ZERO-TIN | |
| 1406 Zero Ohm |
3.5x1.45mm | mini-MELF | 3000 | 8mm | SRM1406E7P-ZERO-TIN | |
| 2308 Zero Ohm |
5.9x2.2mm | MELF | 2000 | 12mm | SRM2308E7A-ZERO-TIN | |

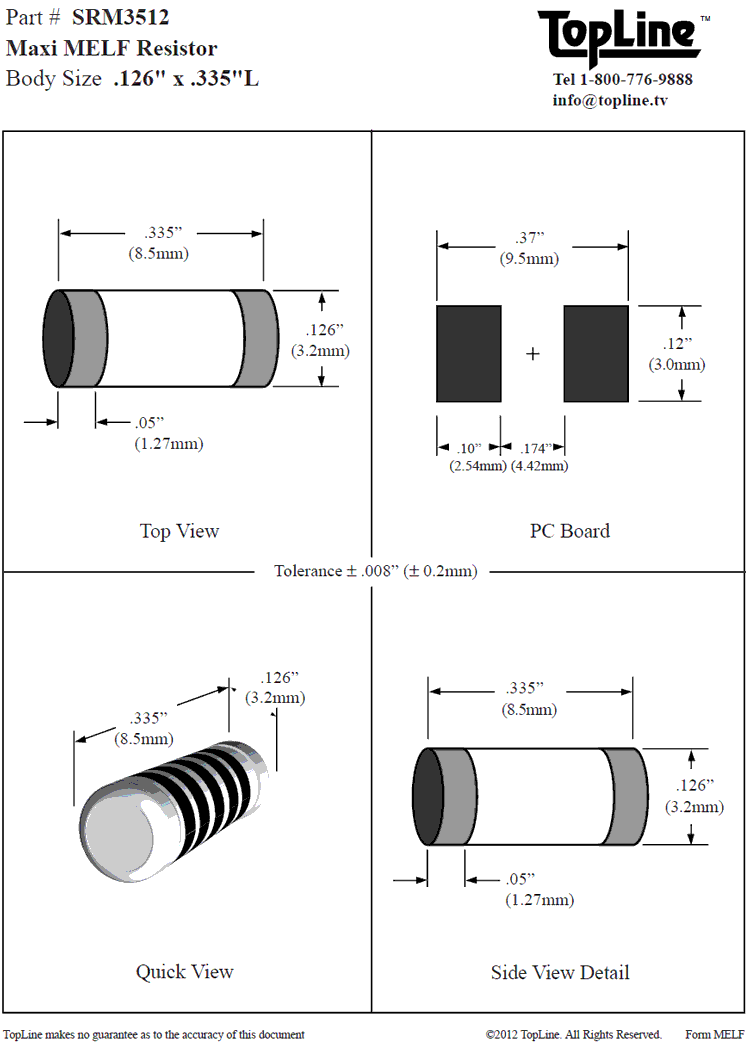

| 3512 Zero Ohm |
8.5x3.0mm | Maxi-MELF | 2500 | 16mm | SRM3512E13A-ZERO-TIN | |

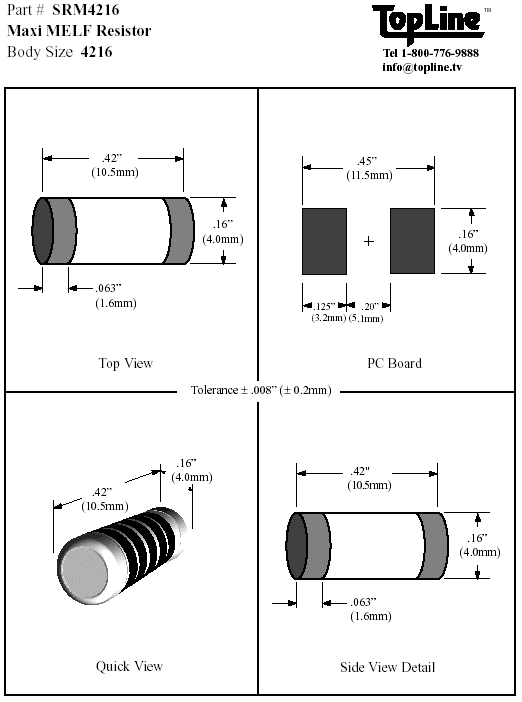

| 4616 Zero Ohm |
10.5x4.0mm | Maxi-MELF | 2000 | 16mm | SRM4216E13A-ZERO-TIN | |
|
