B-36
LCC68 SIR Test Board

Go to: B-24 SIR   •   B-25A SIR   •   B-52 Cleanliness & Residue   •   More Kits

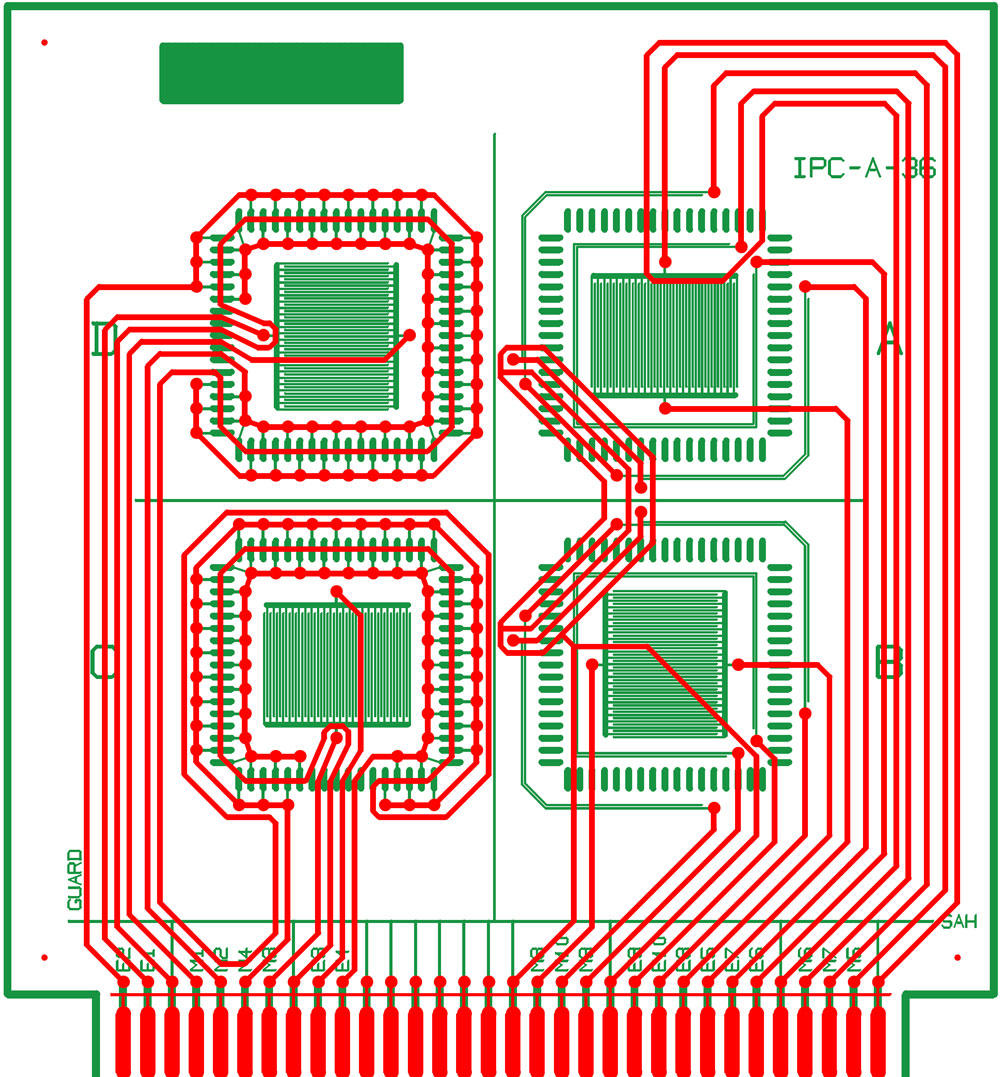

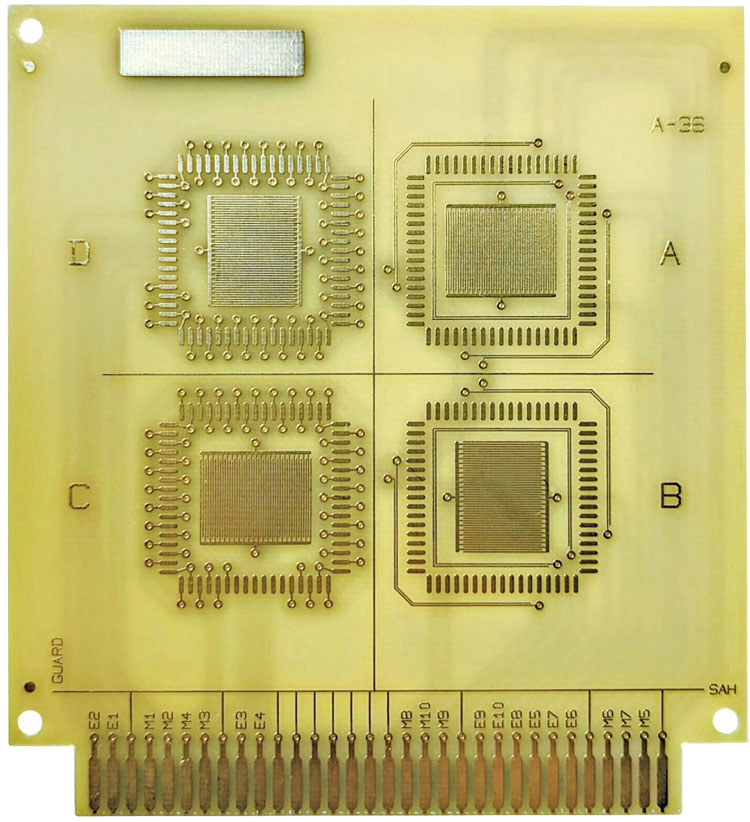

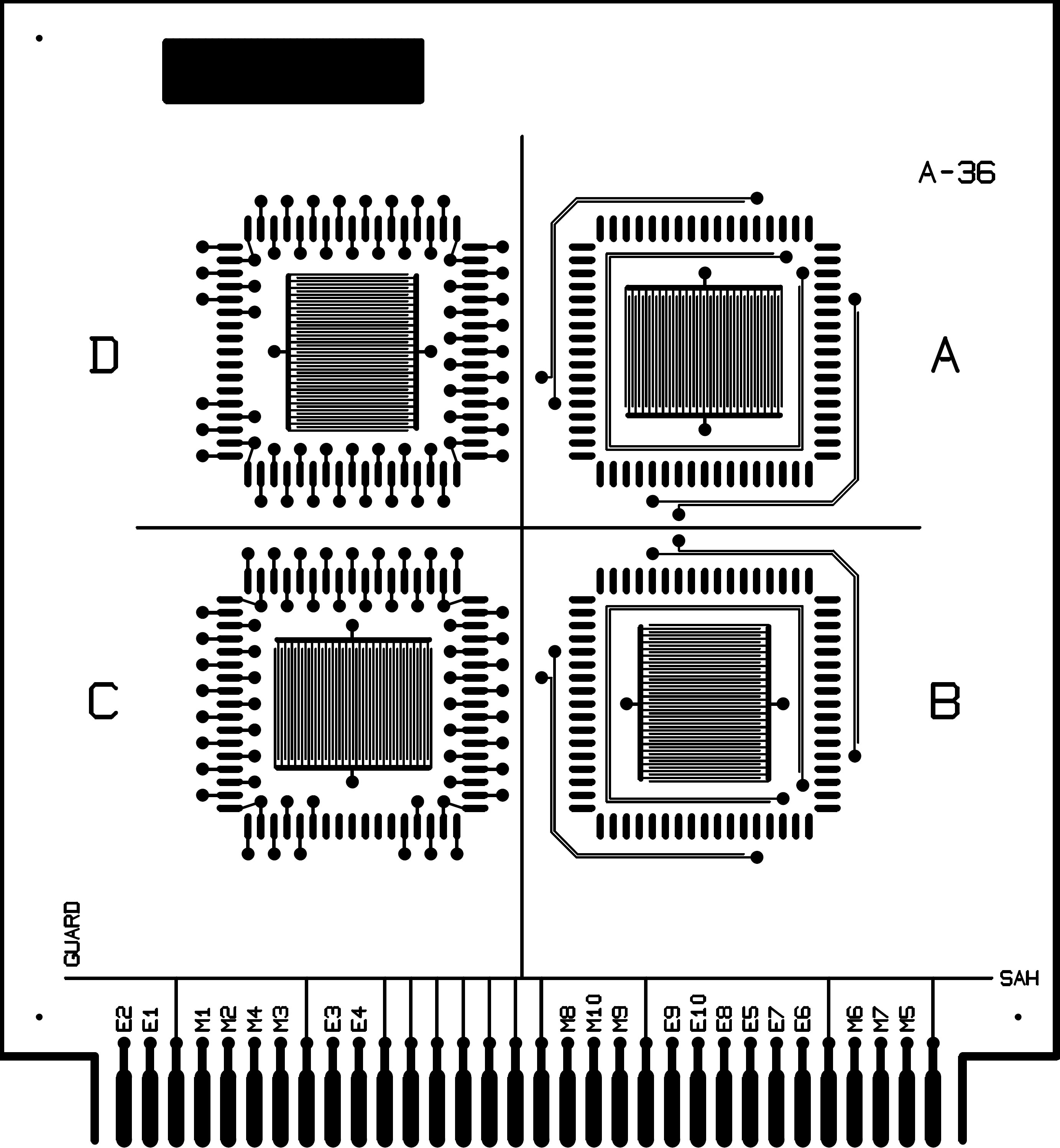

Enlarge: Board (Top)
Board Size 4" x 4.5" (10x11.4cm).
SIR coupons for low stand-off components such as LCC68

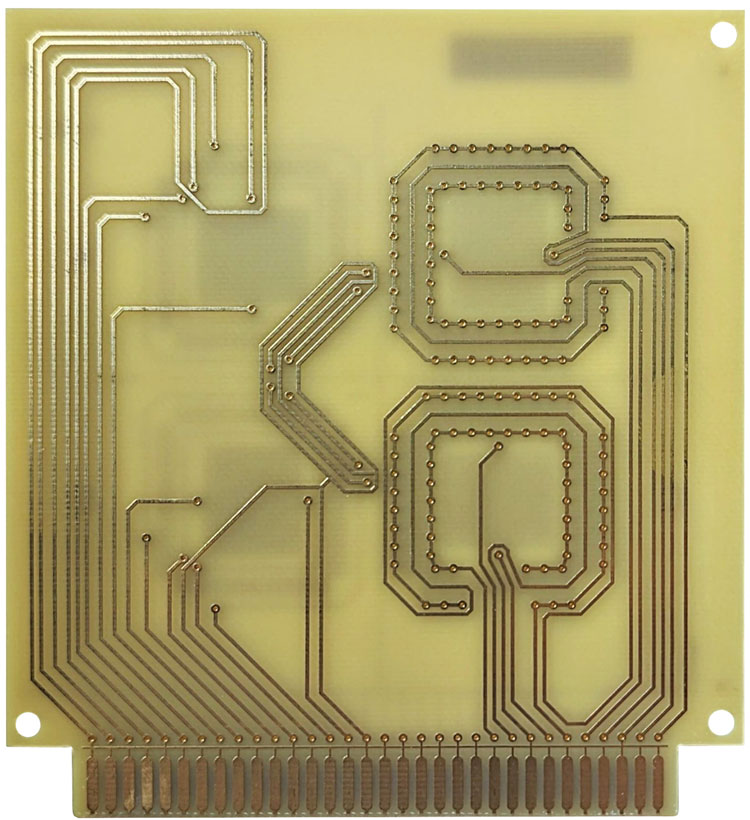

Bottom (Photo)

B-36 SIR Test board with pads for LCC68 isolated components and SIR Test Coupons.

Board Features:

  • Choice of Final finish:
        • HASL
        • ENIG (Ni/Au)Gold
        • Immersion Silver
        • Other plating available
  • Without Solder Mask
  • FR4 Tg=175°C
  • Size - 4"x4.5" (10x11.4cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Tooling Holes .125" (3.17mm)
  • Fiducials - 0.062" (1.57mm)
  • Connector Fingers 32 Pos
  • Finger Pitch 0.100" (2.54mm)

    Enlarge:  Bottom (Photo)

    •
      BOM Kit Contents
    900036 B-36
    Kit Quantities Available
    Kit BOM Components
    Per Board
    Order #
    Board Only
    Without Components
    Order #
    Kit with 1pc Board and
    4pcs LCC68-ISO
    Gold Components
    Board HASL
    LCC68 Pads SnPb • Tin-Lead
    SIR Coupons Bare Copper (Cu)
    Connector Fingers Hard Gold (NiAu)    		 4 Order Nbr
    900036    		 Order Nbr
    900136
    Board - ENIG
    LCC68 Pads ENIG Gold (Ni/Au)
    SIR Coupons ENIG Gold (Ni/Au)
    Connector Fingers ENIG Gold (NiAu)    		 4 Order Nbr
    900936    		 Order Nbr
    900436
    Board - Immersion Silver
    Thickness per IPC-4553    		 4 Order Nbr
    900636    		 Order Nbr
    900736
    Ask for kits with special configurations


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "900036a" B-36
    Step 4. Download files


    Spare Parts
    Ask for quote on Spare Parts Kit.
    Contact TopLine for to discuss your requirements.
    Description Order Number
    LCC68 Isolated
    Gold Castellations
    Standard    		 LCC68T50SQ.95-ISO
    LCC68 Isolated
    Hot Solder Coated
    Sn63/Pb37
    Special    		 LCC68T50SQ.95-ISO-SC
