Diagnostic Kit of three boards 0805 and 1206 Zero Ohm Chip Placement Kit. Each side has 300 pads for 0805 (2.0x1.2mm) chips and 300 pads for 1206 (3.2x1.6mm) chips. The bottom side has same patterns as the top side. Test points allow continuity to verify correct assembly with a simple ohm-meter. Order Number: 968000, 968001, 968002, 968006, 968008 , 968009, 968000, 968003, 968006, 968010, 968025 , 968050 , 968100, 968200, 968203, 968206, 968210, 968225, 968250, 968600, 968603, 9686056, 968610, 968625, 968650, 968800, 968803, 968806, 968810, 968825, 968850, 968900, 968903, 968906, 968910, 968925 , 968950. , 960900 , 960903, 960906 , 960910, 960925 , 960950 , CHIPSHOOTER , CHIP SHOOTER

	Diagnostic Placement Kit Includes 3 Kits: Chip Shooter, Fiducial and Rotational

0805 / 1206 Chip Shooter Kit • Rotational Kit • Fiducial Kit

Machine Diagnostic Kit 3 Kits put your machine to the test

The Machine Diagnostic Kit include 3 different kits to test your machine. Chip Shooter board includes 300 pads for 0805 (2.0x1.2mm) and 300 pads for 1206 (3.2x1.6mm) zero ohm resistors. The Rotational board has TSOP32, SOIC-16 and 1206 chips arranged in 360 ° patterns.The Fiducial board has 10 different fiducial patterns and 10 QFP100 to check machine's vision recognition. LPI Solder Mask. Tooling holes (.125"). Double sided boards with same patterns repeated on bottom side. Select choice of final finish: ENIG (Ni-Au) Gold or HASL SnPb.

Enlarge Bare Board:
0805/1206 Kit

300 pads 0805 and 300 pads 1206
96800x

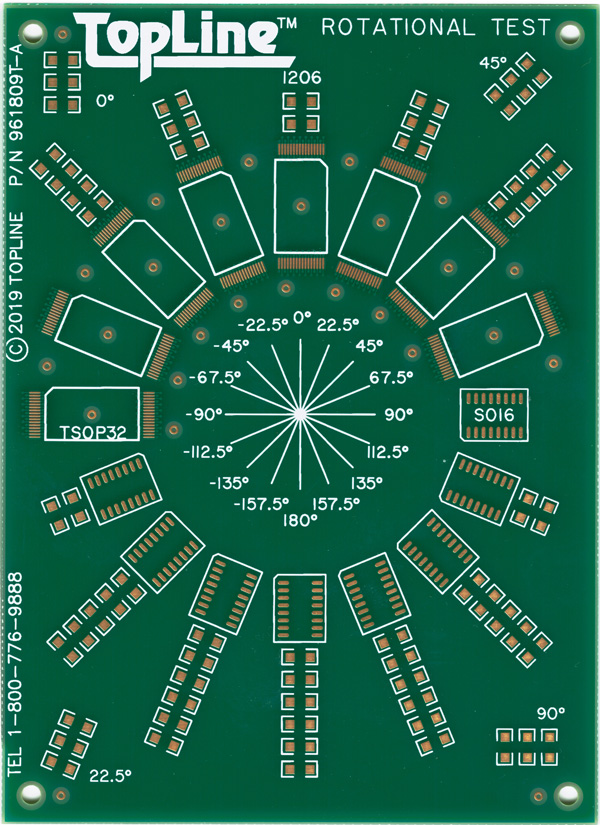

Enlarge Bare Board:
Rotational Kit

Components arranged 360 °
96180x

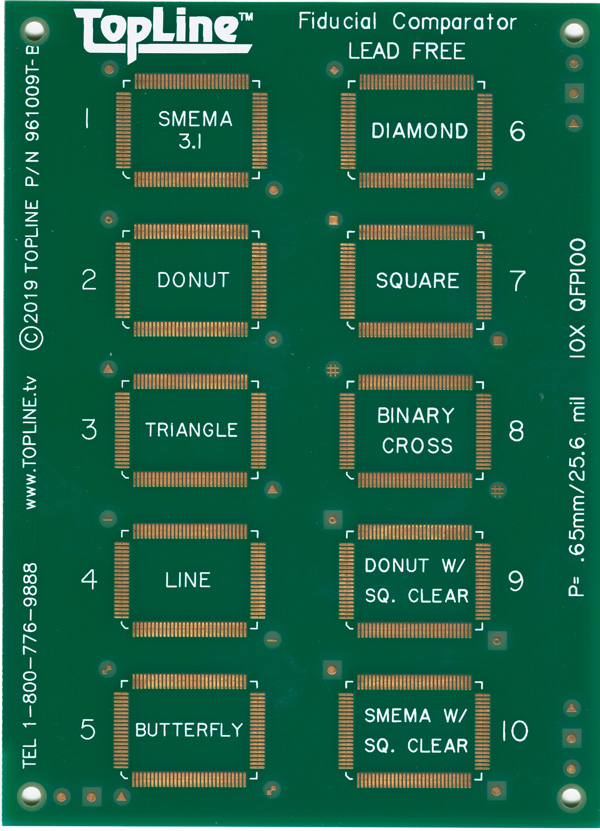

Enlarge Bare Board:
Fiducial Kit

10 Different Fiducials & QFP100
96100x

		BOM Kit Contents Diagnostic Kit Kit Quantities Available
Kit BOM	Components Per Board	Order # 960X00 1 Kit	Order # 960X03 3 Kits	Order # 960X06 6 Kits	Order # 960X10 10 Kits	Order # 960X25 25 Kits
Board HASL - SnPb X = 0 4th Digit Order#		1	3	6	10	25
Board - ENIG Gold (Ni/Au) X = 9 4th Digit Order#	RoHS Pb-Free	1	3	6	10	25
0805 Chip Resistor Size: 2.0mm x 1.2mm	300	300	1000	2000	3000	7500
1206 Chip Resistor Size: 3.2mm x 1.6mm	500	500	1000	2000	5000	10000
TSOP32 (I) Size 8x20mm Pitch 0.5mm (19.7mil)	8	8	24	48	96	200
SO16 Pitch 1.27mm (50mil)	8	8	24	48	96	200
QFP100 Size 14x20mm Pitch 0.65mm (25.6mil)	10	10	30	60	100	250
Ask for special kits with other options

Free Download Solder Paste Gerber & Parts Placement Data

Step 1. Click Here for TopLine's Document Center. Sign up and Log in.

Step 2. Click link "Gerber Files"

Step 3. Click link "968001a" 961800a and 961000b

Step 4. Download files

Kit Order Number System
960	2	# #
Series	Board Finish	Quantity
0805 / 1206 Chip Board 4"x5.5" (10x14cm)	0 = HASL 9 = ENIG Gold (NiAu)	00 = 01 Kits 03 = 3 Kits 06 = 6 Kits 10 = 10 Kits 25 = 25 Kits 50 = 50 Kits Other quantites available.

Spare Boards
Board Finish	Lead-Free Pb-Free	Order Number 0805/1206 PCB	Order Number Rotational PCB	Order Number Fiducial PCB
HASL (SnPb)	No	968001	961801	961001
ENIG Gold (Ni/Au)	RoHS	968009	961809	961009

Spare Parts
Plating	Lead-Free Pb-Free	Drawing
Tin (Sn)	RoHS	0805 Chip (2.0x1.2mm) Resistor
Tin (Sn)	RoHS	1206 Chip (3.2x1.6mm) Resistor

Go to: 01005 / 0201 Kit • 0201 / 0402 Kit • 0402 / 0603 Kit
