QUICK VIEW ZERO OHM PCB JUMPERS

2-PINS SOD80•SM1•SMAF•SR SOD323 • SOD123 SOD123FW • SOD523	3-PINS SOT23 • SOT323	4-PINS SOT343	5-PINS SOT25 • SOT353	6-PINS SOT26 • SOT363	8-PINS SO8 • TSSOP8 • VSSOP8	References: Part# System HS & ECCN Jumper Questionnaire

10-PINS MSOP10 • VSSOP10	14-PINS SO14 • TSSOP14	16-PINS SO16 • TSSOP16	DIP 8~16L DIP8 • DIP14 • DIP16	DPAK 2~7L DPAK • D2PAK	QFN 8~100L QFN • DFN	CROSS-OVERS 0402~0805


About ZERO OHM JUMPERS: TOPLINE manufactures a wide range of Zero Ohm Jumpers for bridging, routing and conducting current around tracings on the PC Board. Jumpers can be used to replace obsolete components. Great solution for routing difficult conductive paths, even for traces on a 45° angle. Jumpers can be used to make a board change on the fly or to redesign the board after it is in production. Enables designers creative routing by using a Jumper component. Extends usefulness of single sided board designs. Available in a wide assortment of devices including SOD, SOT, TSSOP, SOIC, QFN, QFP and BGA. Custom configurations are available. SMT Jumpers are mounted by Pick and Place machines and are solderable just like normal components. Useful for prototyping or mass production per IPC-A-610.

About ISOLATED DEVICES: TOPLINE manufactures a wide range of electrically isolated (ISO) non-conductive (insulated) devices without internal connections for safely plugging a spot on a board and other special applications. Add suffix -ISO to part numbers. Mounts and solders just like normal components.

About PCB SPACERS: Use Solderable PCB Spacers as standoffs to separate and keep adjacent PC Boards from touching each other. Use spacers to prevent a sagging shield from touching a component. Or to support a heavy component. Spacers are SMT solderable just like normal components. A wide variety of standard footprints and heights available.

2-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark
SOD80 Mini-MELF	DC12	SOD80E4A-T-DC12	2L	DC12	1 to 2	500	4-Inch	Commercial	None
SOD80 Mini-MELF	DC12	SOD80E7A-T-DC12	2L	DC12	1 to 2	2500	7-Inch	Commercial	None

SM1 MELF	DC12	SM1E4A-T-DC12	2L	DC12	1 to 2	250	4-Inch	Commercial	None
		SM1E7A-T-DC12	2L	DC12	1 to 2	1000	7-Inch	Commercial	None
		SM1E13A-T-DC12	2L	DC12	1 to 2	5000	13-Inch	Commercial	None

SOD123 Gull-Wing	DC12	SOD123G-E7A-T-DC12	2L	DC12	1 to 2	3000	7-Inch	Commercial	12D
SOD123FW Wide Flat	DC12	SOD123FW-E7A-T-DC12	2L	DC12	1 to 2	2500	7-Inch	Commercial	S
SOD323FW Wide Flat	DC12	SOD323FW-E7A-T-DC12	2L	DC12	1 to 2	3000	7-Inch	Commercial	S
SOD323FS Narrow Flat	DC12	SOD323FS-E7A-T-DC12	2L	DC12	1 to 2	3000	7-Inch	Commercial	S
SOD323G Gull-Wing	DC12	SOD323G-E7A-T-DC12	2L	DC12	1 to 2	3000	7-Inch	Commercial	12
SOD523FL Narrow Flat	DC12	SOD523FL-E7A-T-DC12	2L	DC12	1 to 2	4000	7-Inch	Commercial	000
SMAF Wide Flat	DC12	SMAF-E7A-T-DC12	2L	DC12	1 to 2	1000	7-Inch	Commercial	S

SR Resistor	ZERO	SR01005P7A-ZERO-T	2L	DC12	1 to 2	20,000	7-Inch	Commercial	None
		SR03015P7A-ZERO-T	2L	DC12	1 to 2	40,000	7-Inch	Commercial	None
		SR0201P7A-ZERO-T	2L	DC12	1 to 2	10,000	7-Inch	Commercial	None
		SR0402P7A-ZERO-T	2L	DC12	1 to 2	10,000	7-Inch	Commercial	None
		SR0603P7A-ZERO-T	2L	DC12	1 to 2	5000	7-Inch	Commercial	0
		SR0805P7A-ZERO-T	2L	DC12	1 to 2	5000	7-Inch	Commercial	000
		SR1206P7A-ZERO-T	2L	DC12	1 to 2	5000	7-Inch	Commercial	000
		SR1210E7A-ZERO-T	2L	DC12	1 to 2	4000	7-Inch	Commercial	000
		SR1812E7A-ZERO-T	2L	DC12	1 to 2	4000	7-Inch	Commercial	000
		SR2010E7A-ZERO-T	2L	DC12	1 to 2	4000	7-Inch	Commercial	000
		SR2512E7A-ZERO-T	2L	DC12	1 to 2	4000	7-Inch	Commercial	000

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

3-PIN ZERO OHM PCB JUMPERS

Quick View

Schematic

Part Number

Pins

Jumper
Code

Connection

Qty Reel

Reel Diam

Grade

Top
Mark

SOT23
3L

DC13

SOT23E7A-T-DC13D

DC13

1 to 3

3000

7-Inch

Commercial

D13

SOT23E7A-T-DC13H

DC13

1 to 3

3000

7-Inch

Halogen Free

13H

SOT23E7A-T-DC13Q

DC13

1 to 3

3000

7-Inch

AEC-Q101

13Q

DC23

SOT23E7A-T-DC23D

DC23

2 to 3

3000

7-Inch

Commercial

D23

SOT23E7A-T-DC23H

DC23

2 to 3

3000

7-Inch

Halogen Free

23H

SOT23E7A-T-DC23Q

DC23

2 to 3

3000

7-Inch

Halogen Free

23Q

DC123

SOT23E7A-T-DC123D

DC123

1~2~3

3000

7-Inch

Commercial

D123

DC1231

SOT23E7A-T-DC1231H

DC123

1~2~3~1

3000

7-Inch

Halogen Free

SOT23E7A-T-DC1231Q

DC123

1~2~3~1

3000

7-Inch

AEC-Q101

SOT323
3L

DC13

SOT323E7A-T-DC13D

DC13

1 to 3

3000

7-Inch

Halogen Free

13D

DC23

SOT323E7A-T-DC23D

DC23

1 to 3

3000

7-Inch

Halogen Free

23D

DC123

SOT323E7A-T-DC123D

DC123

1 to 3

3000

7-Inch

Halogen Free

123

DPAK
D2PAK
3L Center Cut

DC12

DPAK-E13A-T-DC12

DC12

1 to 2

3000

13-Inch

Halogen Free

DC12

DC13

DPAK-E13A-T-DC13

DC13

1 to 3

2500

13-Inch

Halogen Free

DC13

DC123

DPAK-E13A-T-DC123

DC123

1~2~3

3000

13-Inch

Halogen Free

DC123

D2PAK-E13A-T-DC123

DC123

1~2~3

800

13-Inch

Halogen Free

DC123

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

4-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark
SOT343 4L	DC13	SOT343E7A-T-DC13D	4L	DC13	1 to 3	3000	7-Inch	Halogen Free	13D
	DC14	SOT343E7A-T-DC14D	4L	DC14	1 to 4	3000	7-Inch	Halogen Free	14D
	DC22	SOT343E7A-T-DC22D	4L	DC22	2 to 3	3000	7-Inch	Halogen Free	22D
	DC42	SOT343E7A-T-DC42D	4L	DC42	2 to 4	3000	7-Inch	Halogen Free	42D
	DC1234	SOT343E7A-T-DC1234D	4L	DC42	1 to 2 3 to 4	3000	7-Inch	Halogen Free	AD
	DC1423	SOT343E7A-T-DC1423D	4L	DC1423	1 to 4 2 to 3	3000	7-Inch	Halogen Free	BD

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm jumper configurations and devices.
Note 3: Jumper and Spacer Catalog (PDF)

5-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark
SOT25 5L	DC21	SOT25E7A-T-DC21H	5L	DC21	1 to 2	3000	7-Inch	Halogen Free	21H
	DC25	SOT25E7A-T-DC25D	5L	DC25	1 to 5 3 to 4	3000	7-Inch	Halogen Free	25D
	DC31	SOT25E7A-T-DC31D	5L	DC31	1 to 3	3000	7-Inch	Halogen Free	31D
	DC34	SOT25E7A-T-DC34D	5L	DC34	3 to 4	3000	7-Inch	Halogen Free	34D
	DC41	SOT25E7A-T-DC41D	5L	DC41	1 to 4	3000	7-Inch	Halogen Free	41D
	DC51	SOT25E7A-T-DC51D	5L	DC51	1 to 5	3000	7-Inch	Halogen Free	51D

SOT353 5L	DC19	SOT353E7A-T-DC19D	5L	DC19	1 to 2 3 to 4	3000	7-Inch	Halogen Free	19D
	DC25	SOT353E7A-T-DC25D	5L	DC25	1 to 5 3 to 4	3000	7-Inch	Halogen Free	25D
	DC45	SOT353E7A-T-DC45D	5L	DC45	4 to 5	3000	7-Inch	Halogen Free	45D
	DC51	SOT353E7A-T-DC51H	5L	DC51	1 to 5	3000	7-Inch	Halogen Free	51H

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Alternatives: SOT23-DC13 rotated 180° = SOT25-DC24 • SOT23-DC23 rotated 180° = SOT25-DC52
Note 4: Alternatives: SOT323-DC13 rotated 180° = SOT353-DC24 • SOT323-DC23 rotated 180° = SOT353-DC52
Note 5: Jumper and Spacer Catalog (PDF)

6-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark
SOT26 6L	DC16	SOT26E7A-T-DC16D	6L	DC16	1 to 6 2 to 5 3 to 4	3000	7-Inch	Halogen Free	16D
SOT26 6L	DC17	SOT26E7A-T-DC17D	6L	DC17	1 to 2 3 to 4 5 to 6	3000	7-Inch	Halogen Free	17D

SOT363 6L	DC16	SOT363E7A-T-DC16D	6L	DC16	1 to 6 2 to 5 3 to 4	3000	7-Inch	Halogen Free	16D
SOT363 6L	DC17	SOT363E7A-T-DC17D	6L	DC17	1 to 2 3 to 4 5 to 6	3000	7-Inch	Halogen Free	17D

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

8-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark
SO8 VSSOP8 TSSOP8 8L	DC28	SO8E7A-T-DC28D Body Width 3.9mm (0.153") Pitch 1.27mm (0.050")	8L	DC28	1 to 8 2 to 7 3 to 6 4 to 5	1000	7-Inch	Halogen Free	DC28
		VSSO8E7A-T-DC28D Body 2.0 x 2.3mm Pitch 0.5mm	8L	DC28	1 to 8 2 to 7 3 to 6 4 to 5	1000	7-Inch	Halogen Free	DC28
		TSSO8E7A-T-DC28 Body Width 4.4mm (0.173") Pitch 0.65mm (0.0256")	8L	DC28	1 to 8 2 to 7 3 to 6 4 to 5	1000	7-Inch	Halogen Free	DC28

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

10-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark
VSSOP10 MSOP10 10L	DC29	VSSOP10E7A-T-DC29D Body 3.0 x 3.0mm Pitch 0.5mm	10L	DC29	1 to 10 2 to 9 3 to 8 4 to 7 5 to 6	1000	7-Inch	Halogen Free	DC29
VSSOP10 MSOP10 10L	DC29	MSOP10E7A-T-DC29D Body 3.0 x 3.0mm Pitch 0.5mm	10L	DC29	1 to 10 2 to 9 3 to 8 4 to 7 5 to 6	1000	7-Inch	Halogen Free	DC29

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

14-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark

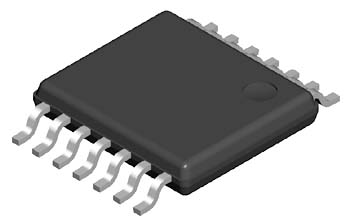

SO14 TSSOP14 14L	DC1414	SO14E13A-T-DC1414 Body Width 3.9mm (0.153") Pitch 1.27mm (0.050")	14L	DC1414	1 to 14 2 to 13 3 to 12 4 to 11 5 to 10 6 to 9 7 to 8	1000	13-Inch	Halogen Free	DC1414
SO14 TSSOP14 14L	DC1414	TSSOP14E13A-T-DC1414 Body Witdh 4.4mm (0.173") Pitch 0.65mm (0.0256")	14L	DC1414	1 to 14 2 to 13 3 to 12 4 to 11 5 to 10 6 to 9 7 to 8	1000	13-Inch	Halogen Free	DC1414

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

16-PIN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Reel Diam	Grade	Top Mark

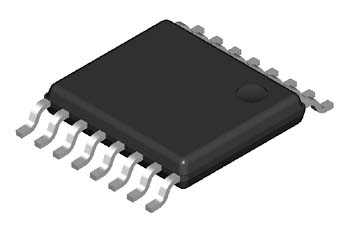

SO16 SOL16 TSSOP16 16L	DC1616	SO16E13A-T-DC1616 Body Width 3.9mm (0.153") Pitch 1.27mm (0.050")	16L	DC1616	1 to 16 2 to 15 3 to 14 4 to 13 5 to 12 6 to 11 7 to 10 8 to 9	1000	13-Inch	Halogen Free	DC1616
		SOL16E13A-T-DC1616 Body Width 7.5mm (0.300") Pitch 1.27mm (0.050")	16L	DC1616	1 to 16 2 to 15 3 to 14 4 to 13 5 to 12 6 to 11 7 to 10 8 to 9	1000	13-Inch	Halogen Free	DC1616
		TSSOP16E13A-T-DC1616 Body Witdh 4.4mm (0.173") Pitch 0.65mm (0.0256")	16L	DC1616	1 to 16 2 to 15 3 to 14 4 to 13 5 to 12 6 to 11 7 to 10 8 to 9	1000	13-Inch	Halogen Free	DC1616

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

8~16-PIN DIP ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Tube	Packaging	Grade	Top Mark
DIP 8L	DC28	DIP8M3-T-DC28 Body Witdth 7.62mm (0.300") Pitch 2.54mm (0.100")	8L	DC28	1 to 8 2 to 7 3 to 6 4 to 5	100	Tube	Halogen Free	DC28

DIP 14L	DC1414	DIP14M3-T-DC1414 Body Width 7.62mm (0.300") Pitch 2.54mm (0.100")	14L	DC1414	1 to 14 2 to 13 3 to 12 4 to 11 5 to 10 6 to 9 7 to 8	50	Tube	Halogen Free	DC1414

DIP 16L	DC1616	DIP16M3-T-DC1616 Body Width 7.62mm (0.300") Pitch 2.54mm (0.100")	16L	DC1616	1 to 16 2 to 15 3 to 14 4 to 13 5 to 12 6 to 11 7 to 10 8 to 9	50	Tube	Halogen Free	DC1616

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

Cross Over ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Reel	Packaging	Grade	Top Mark
Crossover 0805-4L	DC28	SSL0805E7A-DC4231 0805 Size 4L Crossover	4L	DC4231	1 to 3 2 to 4	1000	Reel	Halogen Free	None

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)

DFN & QFN ZERO OHM PCB JUMPERS
Quick View	Schematic	Part Number	Pins	Jumper Code	Connection	Qty Tube	Packaging	Grade	Top Mark
DFN 6L to 12L	DC28	DFN6 DFN8 DFN10 DFN12 Custom Jumper Available	6L~12L	Custom	Custom	1000	Reel/Tray	Halogen Free	Custom

QFN 8L to 100L	Custom	QFN8~100 Custom Jumper Available	8L~100L	Custom	Custom	1000	Reel/Tray	Halogen Free	Custom

Note 1: Part Number System
Note 2: Contact TopLine for custom zero ohm Jumper Questionnaire.
Note 3: Jumper and Spacer Catalog (PDF)


Part Number System
SOT23		E7A	-	T	-	DC13	D
Series		Packaging	-	Plating		Jumper Code	Option
2-PINS SR SM1 SOD80 SOD123G SOD123FW SOD323G SOD523FL 3-PINS SOT23 SOT323 4-PINS SOT343 SSL0805 5-PINS SOT25 SOT353 6-PINS SOT26 SOT363 8-PINS SO8 VSSOP8 TSSOP8 DIP8	10-PINS VSSOP10 MSOP10 14-PINS SO14 TSSOP14 DIP14 16-PINS SO16 TSSOP16 DIP16 8~100-PINS DFN QFN 3~7-PINS DPAK D2PAK	REEL E4A = 4-inch E7A = 7-inch E13A = 13-inch E = Partial Reel BULK B = Bag M = Tube T = Tray		T RoHS Pb-Free Sn100 Matte Tin		Schematic DC## = Zero Ohm Pattern ISO = Isolated Circuit Without Connections SR Series ZERO = Zero Ohm	Blank = Standard D = Dummy Die H = Halogen Free Q = AEC-Q101

More Types. Jumper and Spacer Catalog (PDF)

HS Code - Export Harmonized System Tariff
HS Code	ECCN	CAGE Code	ITAR
8542.90.0000	EAR99	4VZ14	None
