CCGA Extraction Tools for Graphite Fixtures

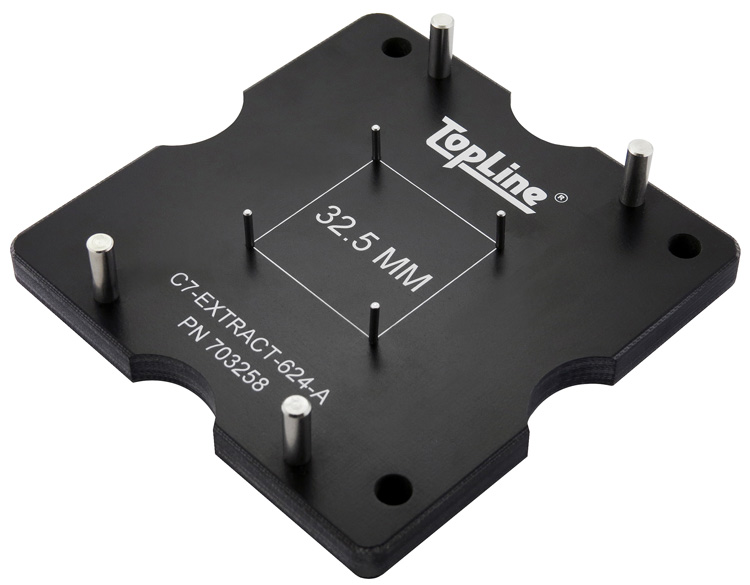

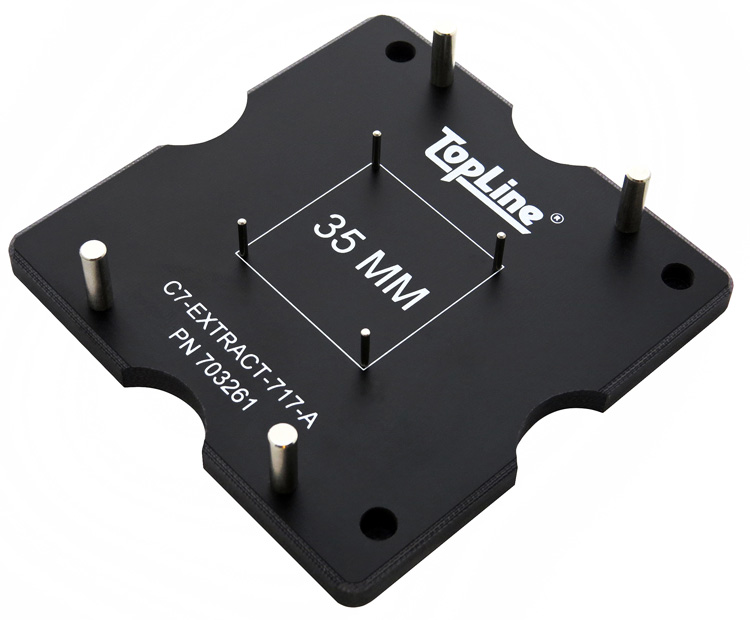

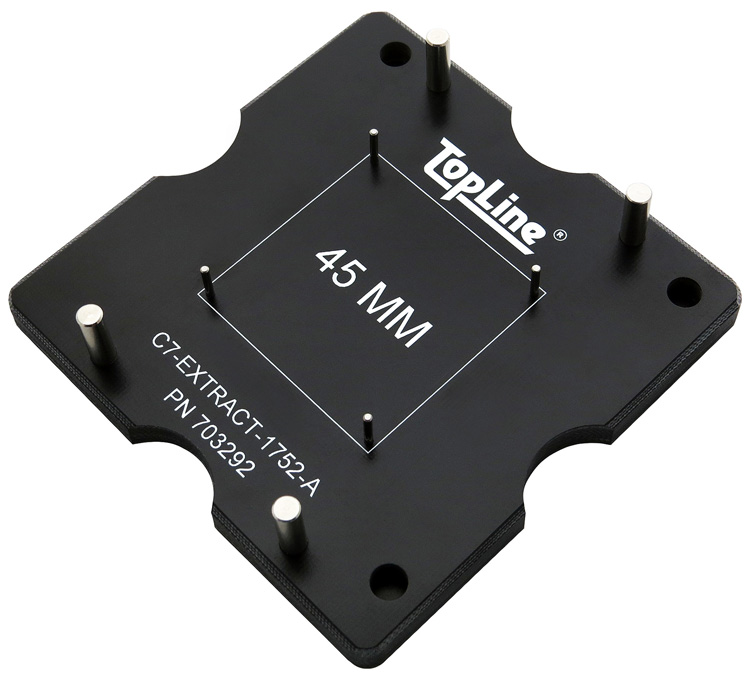

C7-EXTRACT TOOL - Lifts CCGA From Graphite
Place inverted top graphite over positioning pins to gently lift the CCGA package from the graphite. Select the tool that matches the specific CCGA package. Use for CCGA with columns or micro-coil springs.

Pins lift CCGA from Graphite


Extraction Tool

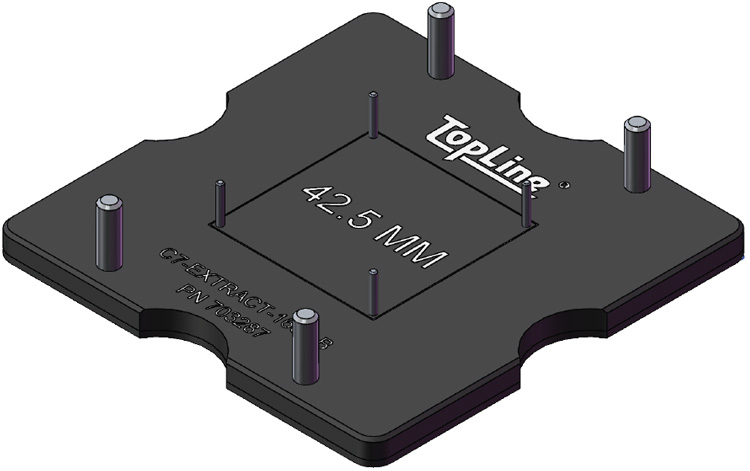

360° Model
EXTRACTION TOOL
Lifts CCGA Package
From Top Graphite
DWG Number Model Number CCGA
Size		 Matrix
Row x Col		 Pitch Spacing
Extract Pins		 CCGA Part#
703246 C7-EXTRACT-143-A 14.5mm 12x12 1.0mm 13.5mm
0.5315-inch		 CCGA43
Cobham
703250 C7-EXTRACT-168-A 17.0mm 13x13 1.27mm ____mm
____inch		 CCGA168
703249 C7-EXTRACT-255-A 21mm 16x16 1.27mm ____mm
____inch		 CCGA255
703244 C7-EXTRACT-256-A 17mm 16x16 1.0mm 17mm
0.669-inch		 CCGA256
703242 C7-EXTRACT-323-B 20mm 18x18 1.0mm ___
___inch		 CCGA323
CCGA324
703254 C7-EXTRACT-360-A 25mm 19x19 1.27mm ____mm
____inch		 CCGA360
703247 C7-EXTRACT-376-A 28mm 20x20 1.27mm 26.67mm
1.050-inch		 CCGA376
T.I.
703262 C7-EXTRACT-399-A 21mm 20x20 1.0mm 21.00mm
0.827-inch		 CCGA399
703259 C7-EXTRACT-472-A 29mm 22x22 1.27mm 27.00mm
1.063-inch		 CCGA472
703252 C7-EXTRACT-483-A 23mm 22x22 1.0mm 23.01mm
0.906-inch		 CCGA483-23mm
703248 [C7-EXTRACT-483-F] 29mm 22x22 1.27mm ___mm
___-inch		 CCGA483-29mm
703258 C7-EXTRACT-624-A 32.5mm 25x25 1.27mm 32.51mm
1.280-inch		 CCGA624
703271 C7-EXTRACT-625-A 29mm 25x25 1.0mm __mm
__-inch		 CCGA625
703260 C7-EXTRACT-672-A 35mm 26x26 1.27mm 32.51mm
1.280-inch		 CCGA672
703261 C7-EXTRACT-717-A 35mm 27x27 1.27mm 33.02mm
1.30-inch		 CCGA717
703265 C7-EXTRACT-896-A 31mm 30x30 1.0mm 30.48mm
1.200-inch		 CCGA896
703268 C7-EXTRACT-896-B 31mm 30x30 1.0mm 29.82mm
1.174-inch		 BGA-CGA896
703264 C7-EXTRACT-898-RU 31mm 30x30 1.0mm TBA
TBA		 CCGA898
703269 C7-EXTRACT-1140-A 35mm 34x34 1.0mm 34.54mm
1.360-inch		 CCGA1140
703270 C7-EXTRACT-1144-A 35mm 34x34 1.0mm 34.54mm
1.360-inch		 CCGA1144
703272 C7-EXTRACT-1148-B 35mm 34x34 1.0mm 34.54mm
1.360-inch		 BGA-CGA1148
703275 C7-EXTRACT-1152-A 35mm 34x34 1.0mm 33.83mm
1.332-inch		 CCGA1152
CCGA1136A
703277 C7-EXTRACT-1156-A 35mm 34x34 1.0mm ___mm
___-inch		 FF=CG1156
703278 C7-EXTRACT-1221-A 37.5mm 35x35 1.0mm ___mm
___inch		 CCGA1221
703280 C7-EXTRACT-1272-A 37.5mm 36x36 1.0mm 34.54mm
1.36-inch		 CCGA1272
703281 C7-EXTRACT-1295-A 37.5mm 36x36 1.0mm 37.0mm
1.457-inch		 CCGA1295
703284 C7-EXTRACT-1509-A 40mm 39x39 1.0mm 38.35mm
1.51-inch		 CCGA1509
703287 C7-EXTRACT-1657-A 42.5mm 41x41 1.0mm 39.62mm
1.56-inch		 CCGA1657
703288 C7-EXTRACT-1724-B 42.5mm 42x42 1.0mm 39.62mm
1.56-inch		 BGA-CGA1724
703289 C7-EXTRACT-1738-B 42.5mm 42x42 1.0mm 42.5mm
1.673-inch		 BGA-CGA1738
703290 C7-EXTRACT-1751-RU 57mm 44x44 1.27mm 57.00mm
2.244-inch		 CCGA1751
703292 C7-EXTRACT-1752-A 45mm 45x45 1.0mm 41.91mm
1.650-inch		 CCGA1752
703294 C7-EXTRACT-1752-B 42.5mm 42x42 1.0mm 41.91mm
1.650-inch		 BGA-CGA1752
703295 C7-EXTRACT-1825-A 46mm 43x43 1.0mm 43mm
1.693-inch		 BGA-CGA1825
703297 C7-EXTRACT-2104-B 52.5mm 46x46 1.0mm --
--		 FHGB2104
Contact TopLine for Additional Tools



Model Numbering System
    C7     -     EXTRACT     -     1152     -     A
Series   Description   Columns   Variations
Attachment Tool
Series   •   Description
C7 = CCGA tool-set






  Tool Type

NAME • Description
EXTRACT = Lifts CCGA from Graphite
EJECT = EJECT Planar/Lapping Tool


Spare Parts
PIN = Positioning Pin		   Columns
Code • Nbr. Pads
256 = 256 pins
360 = 360 pins
484 = 484 pins
624 = 624 pins
717 = 717 pins
896 = 896 pins
1140 = 1140 pins
1144 = 1144 pins
1152 = 1152 pins
1272 = 1272 pins
1657 = 1657 pins
1752 = 1752 pins
2577 = 2577 pins
etc.




   SET
Code • Version
A • Version A
Ceramic CCGA Package

B • Version B
Plastic PBGA Package

C • Version C
Custom Package, etc

Other Versions Available


Drawing Number System

    7         03         123
Series Tool Type Version
C7 Tool-set
Code • Description
7 = Tools
 Tool
Code • Description
02 = Ejector Tool For Lapping
03 = Extract Tool For Graphite
07 = Pocket Tool Catches CCGA 		Device
Code • Version
xxx = Specific Tool




ECCN: EAR99 Export Administration Regulations (EAR)
HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.
