CCGA Pocket Tool Safely Catches CCGA
During Extraction from Graphite

Captures CCGA from Graphite

360° Model

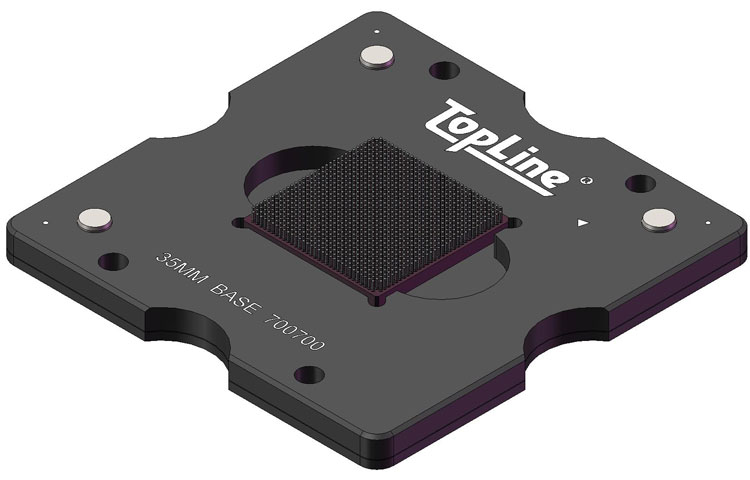

C7-POCKET with CCGA

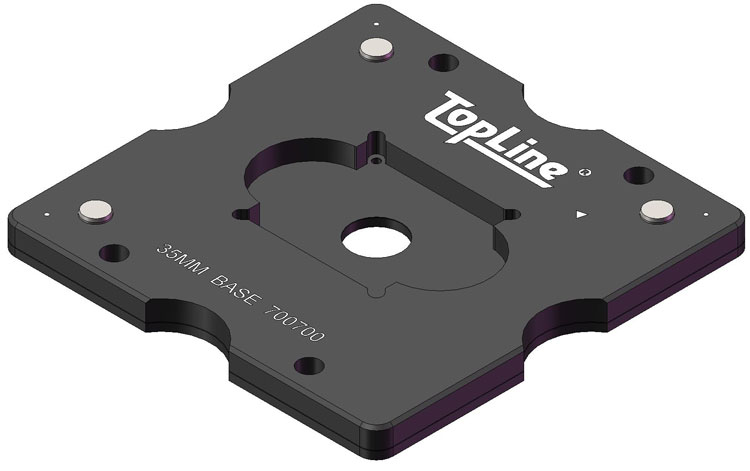

C7-TOOL Empty
C7-POCKET Tool
Captures CCGA From Graphite

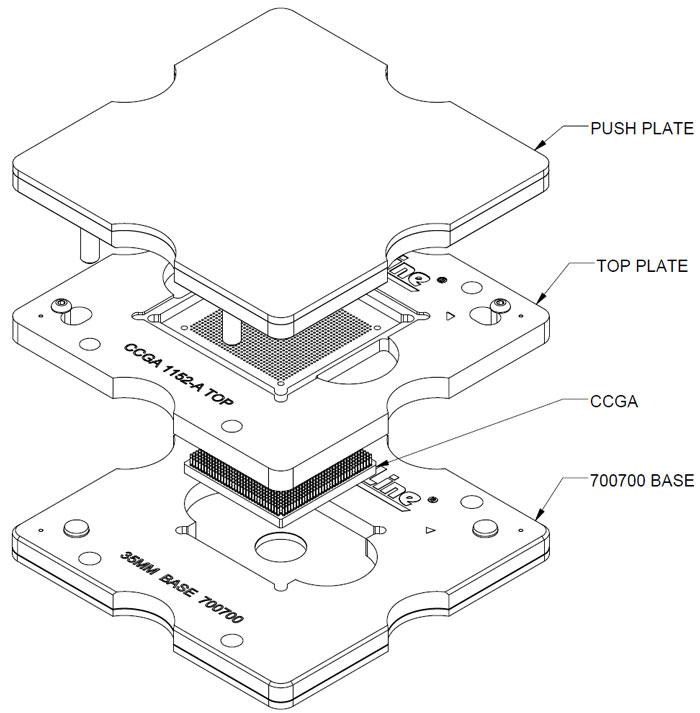

Place top graphite (CCGA "Dead Bug" columns pointing up) over the C7-POCKET tool. Place inverted C7-EXTRACT push plate over top of Graphite. Gently push and extract the CCGA package from the graphite plate. The CCGA will be captured by the C7-POCKET tool.		 Features
  • CCGA Size: 14mm to 52.5mm
  • Column Length: All
  • Pitch: All
    •
    POCKET TOOL
    Catches CCGA Package
    During Extraction From Top Graphite
    DWG Number Model Number CCGA
    Size    		 Matrix
    Row x Col    		 Pitch Spacing
    Extract Pins    		 CCGA Part#
    707246 C7-POCKET-143-A 14.5mm 12x12 1.0mm 14.5mm
    0.571-inch    		 CCGA43
    Cobham
    707250 C7-POCKET-168-A 17mm 13x13 1.27mm ____mm
    ____inch    		 CCGA168
    707249 C7-POCKET-255-A 21mm 16x16 1.27mm ____mm
    ____inch    		 CCGA255
    707247 C7-POCKET-376-A 28mm 20x20 1.27mm ___mm
    ___inch    		 CCGA376
    T.I.
    707262 C7-POCKET-399-A 21mm 20x20 1.0mm 21.00mm
    0.827-inch    		 CCGA399
    707259 C7-POCKET-472-A 29mm 22x22 1.27mm 27.00mm
    1.063-inch    		 CCGA472
    707252 C7-POCKET-483-A 23mm 22x22 1.0mm 23.01mm
    0.906-inch    		 CCGA483-23mm
    707248 [C7-POCKET-483-F] 29mm 22x22 1.27mm ___mm
    ___-inch    		 CCGA483-29mm
    707258 C7-POCKET-624-A 32.5mm 25x25 1.27mm 32.51mm
    1.280-inch    		 CCGA624
    707260 C7-POCKET-672-A 35mm 26x26 1.27mm 32.51mm
    1.280-inch    		 CCGA672
    707261 C7-POCKET-717-A 35mm 27x27 1.27mm 33.02mm
    1.30-inch    		 CCGA717
    707265 C7-POCKET-896-A 31mm 30x30 1.0mm 30.48mm
    1.200-inch    		 CCGA896
    707268 C7-POCKET-896-B 31mm 30x30 1.0mm 29.82mm
    1.174-inch    		 BGA-CGA896
    707264 C7-POCKET-898-RU 31mm 30x30 1.0mm TBA
    TBA    		 CCGA898
    707269 C7-POCKET-1140-A 35mm 34x34 1.0mm 34.54mm
    1.360-inch    		 CCGA1140
    707270 C7-POCKET-1144-A 35mm 34x34 1.0mm 34.54mm
    1.360-inch    		 CCGA1144
    707272 C7-POCKET-1148-B 35mm 34x34 1.0mm 34.54mm
    1.360-inch    		 BGA-CGA1148
    707275 C7-POCKET-1152-A 35mm 34x34 1.0mm 33.83mm
    1.332-inch    		 CCGA1152
    BGA1152
    707280 C7-POCKET-1272-A 37.5mm 36x36 1.0mm 34.54mm
    1.36-inch    		 CCGA1272
    707284 C7-POCKET-1509-A 40mm 39x39 1.0mm 38.35mm
    1.51-inch    		 CCGA1509
    707287 C7-POCKET-1657-A 42.5mm 41x41 1.0mm 39.62mm
    1.56-inch    		 CCGA1657
    707288 C7-POCKET-1724-B 42.5mm 42x42 1.0mm 39.62mm
    1.56-inch    		 BGA-CGA1724
    707289 C7-POCKET-1738-B 42.5mm 42x42 1.0mm 42.5mm
    1.673-inch    		 BGA-CGA1738
    707290 C7-POCKET-1751-RU 57mm 44x44 1.27mm 57.00mm
    2.244-inch    		 CCGA1751
    707292 C7-POCKET-1752-A 45mm 45x45 1.0mm 41.91mm
    1.650-inch    		 CCGA1752
    707294 C7-POCKET-1752-B 42.5mm 42x42 1.0mm 41.91mm
    1.650-inch    		 BGA-CGA1752
    707295 C7-POCKET-1825-A 46mm 43x43 1.0mm 43mm
    1.693-inch    		 BGA-CGA1825
    707297 C7-POCKET-2104-B 52.5mm 46x46 1.0mm --
    --    		 FHGB2104
    Contact TopLine for Additional Tools



    Model Numbering System
        C7     -     POCKET     -     1152     -     A
    Series   Description   Columns   Variations
    Attachment Tool
    Series   •   Description
    C7 = CCGA tool-set






    		  Tool Type

    NAME • Description
    EXTRACT = Lifts CCGA from Graphite
    EJECT = EJECT Planar/Lapping Tool
    POCKET Catches CCGA

    Spare Parts
    PIN = Positioning Pin    		   Columns
    Code • Nbr. Pads
    360 = 360 pins
    484 = 484 pins
    624 = 624 pins
    717 = 717 pins
    896 = 896 pins
    1140 = 1140 pins
    1144 = 1144 pins
    1152 = 1152 pins
    1272 = 1272 pins
    1657 = 1657 pins
    1752 = 1752 pins
    2577 = 2577 pins
    etc.




    		   SET
    Code • Version
    A • Version A
    Ceramic CCGA Package

    B • Version B
    Plastic PBGA Package

    C • Version C
    Custom Package, etc

    Other Versions Available


    Drawing Number System

        7         07         123
    Series Tool Type Version
    C7 Tool-set
    Code • Description
    7 = Tools
    		 Tool
    Code • Description
    02 = Ejector Tool For Lapping
    03 = Extractor Tool For Graphite
    07 = Pocket Tool Catches CCGA     		Device
    Code • Version
    xxx = Specific Tool




    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.



    Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.
