Alignment Tool for CCGA Column Attachment

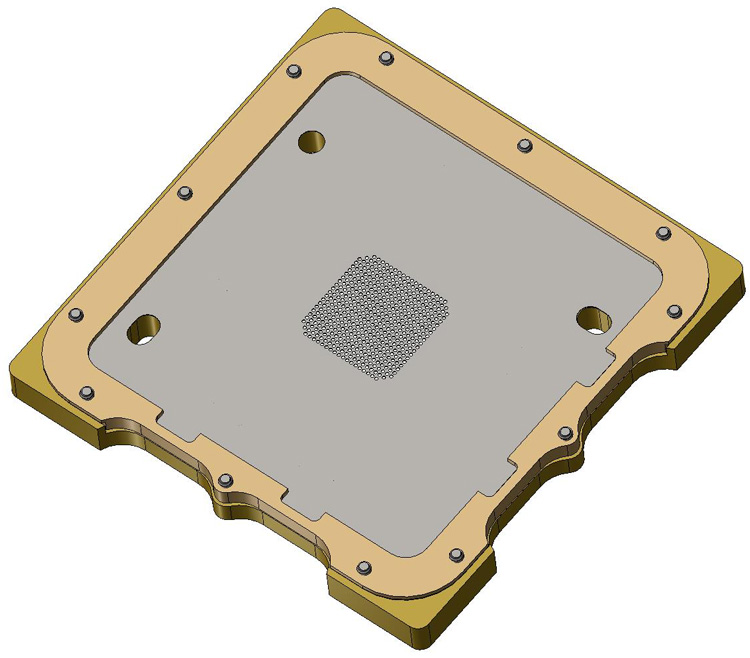

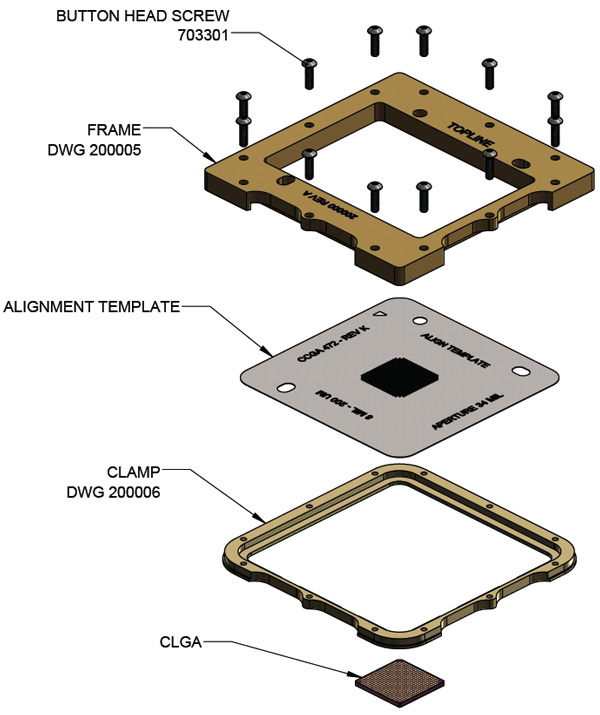

EXPLODED VIEW   •  BOTTOM VIEW 		About Alignment Tool
Precision tool-set for optically aligning pads on LGA grid array packages. Simple to use. Place template frame over the base graphite. Adjust the LGA package X , Y and Theta so that the pads on the LGA optically center in the template apertures. Quick and accurate method to confirm that the pads on the LGA are in alignment before applying solder paste or attaching columns to the LGA.

Features:
  • LGA Size: Up to 50x50mm
  • Pitch: 1.0mm and 1.27mm
  • Place over the base Graphite Tool
  • Set Includes frame and precision template

    •   Rotatable Model
    C7-ALIGN SET
    Complete set with frame and template for your specific CGA
    DWG Number Model Number Substrate
    X/Y
    Size    		 Matrix
    Row x Col
    Maximum    		 Pitch Pad
    ØDia    		 Template
    Aperture
    ØDia
    211250 C7-ALIGN-143-A 14.5mm 12x12 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    221610 C7-ALIGN-255-A 21mm 16x16 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    211600 C7-ALIGN-256-A 17mm 16x16 1.0mm Ø0.75mm
    29.5 MIL    		 Ø0.81mm
    32.0 MIL
    211800 C7-ALIGN-323-B 20mm 18x18 1.0mm Ø0.68mm
    26.8 MIL    		 Ø0.71mm
    28.0 MIL
    221980 C7-ALIGN-360-A 25mm 19x19 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    222011 C7-ALIGN-376-A 28mm 20x20 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    212070 C7-ALIGN-399-A 21mm 20x20 1.0mm Ø0.60mm
    23.6 MIL    		 Ø0.635mm
    25.0 MIL
    222260 C7-ALIGN-472-A 29mm 22x22 1.27mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34 MIL
    212251 C7-ALIGN-483-A 23mm 22x22 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.85mm
    33.5 MIL
    212300 C7-ALIGN-529-RU 24mm 23x23 1.0mm Ø0.80mm?
    32.5 MIL?    		 Ø0.86mm
    34.0 MIL
    222800 C7-ALIGN-576-A 37.5mm 28x28 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    222542 C7-ALIGN-624-A 32.5mm 25x25 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    212580 C7-ALIGN-625-A 29mm 25x25 1.0mm Ø0.75mm
    29.5 MIL    		 Ø0.81mm
    32.0 MIL
    222750 C7-ALIGN-717-A 35mm 27x27 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    213080 C7-ALIGN-896-A 31mm 30x30 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    223370 C7-ALIGN-1088-A 42.5mm 33x33 1.27mm Ø0.86mm
    33.8 MIL    		 Ø0.89mm
    35.0 MIL
    213420 C7-ALIGN-1136-A 35mm 34x34 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213482 C7-ALIGN-1144-A 35mm 34x34 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213460 C7-ALIGN-1152-A 35mm 34x34 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213490 C7-ALIGN-1156-A 35mm 34x34 1.0mm Ø0.50mm
    19.7 MIL    		 Ø0.56mm
    22.0 MIL
    213500 C7-ALIGN-1221-A 37.5mm 35x35 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213670 C7-ALIGN-1272-A 37.5mm 36x36 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213610 C7-ALIGN-1291-A 37.5mm 36x36 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213650 C7-ALIGN-1295-A 37.5mm 36x36 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    213961 C7-ALIGN-1509-A 40mm 39x39 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    214160 C7-ALIGN-1657-A 42.5mm 41x41 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    214270 C7-ALIGN-1752-A 45mm 42x42 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    299800 C7-ALIGN-2400-A 47.5mm X50
    Y48    		 X36 MIL
    Y39 MIL    		 X22 MIL
    Y31 MIL    		 X29 MIL
    Y34.0 MIL
    299801 C7-ALIGN-2400-D Ø85mm
    Puck    		 X50
    Y48    		 X36 MIL
    Y39 MIL    		 X22 MIL
    Y31 MIL    		 X29 MIL
    Y34.0 MIL
    219700 C7-ALIGN-2460-A Ø85mm X54
    Y46    		 1.0mm Ø0.80mm
    31.5 MIL    		 Ø0.86mm
    34.0 MIL
    Note 1: Model Number System.
    Note 2: Ask TopLine for other sets.




    Model Numbering System
        C7     -     ALIGN     -     1657     -     A
    Series   Description   Pad Matrix   Variations
    Series   •   Description
    C7 = CCGA Tool-set
    		   NAME • Description
    ALIGN = Complete Set
    FRAME = Template Frame
    CLAMP = Clamp for Frame
    		   Code • Pad Matrix
    1657 = 1657 Pins
    Other Available     		  Variation
    Code • Version
    A • Version A
    B • Version B


    Drawing Number System

        2         1         41         00
    Series Pitch Matrix Version
    Code • Description
    2 = Alignment Template
    		 Code • Pitch
    1 = 1.0mm
    2 = 1.27mm
    4 = 0.4mm
    5 = 0.5mm
    6 = 0.65mm
    8 = 0.8mm
    9 = Special    		 Code • Matrix
    12 = 12x12
    16 = 16x16
    20 = 20x20
    23 = 23x23
    30 = 30x30
    34 = 34x34
    36 = 36x36
    41 = 41x41
    42 = 42x42
    97 = 54x46
    Other Patterns Available     		Code • Description
    00~99 = Specific Pattern




    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    ITAR: Not restricted.



    Download Solidworks® e-Drawing 360° rotatable models.  Click here
