New Flip-Pack® U.S. Patent No. 9,629,259
and Pin-Pack®  U.S. Patent No. 9,108,262

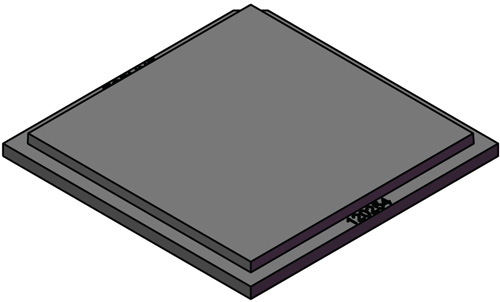

Cassette carrier loaded with solder columns.

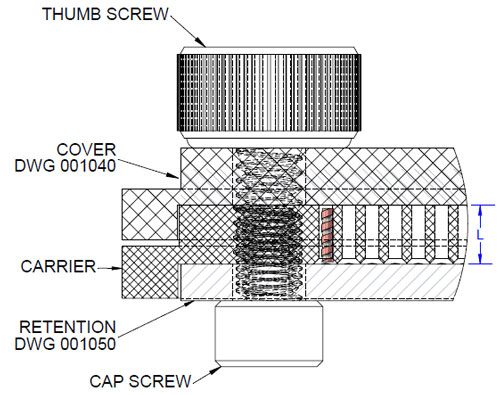

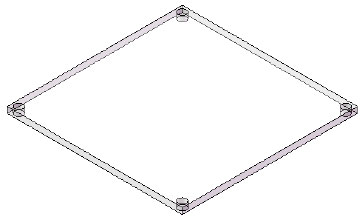

Click: Exploded View • Section View		 Flip-Pack® cassette carrier loaded with solder columns or micro-coil springs. Exactly mates with the matrix pads of the LGA substrate. Pins are held in place with removable covers. To use, just remove the cover, and the pins gently glide into the C7-GRAPHITE column attachment fixture without vibration or vacuum.

Available in a variety of columns including Pb80/Sn20, Pb90/Sn10, Lead Free Sn/Sb, or Indium alloy. Choice of Cu ribbon, Cu braid, bare columns and Micro-coil springs.

Features

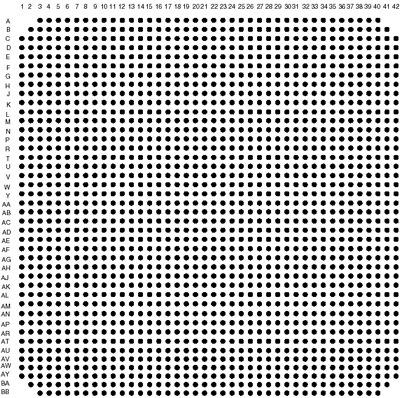

  • Flip-Pack Size: 2.0" (50mm) SQ. Up to 1752 Columns
  • Column Alloy, Length and Ø Diameter. (See table)
  • Substrate Size: 8mm to 45mm
  • Sample Outline Drawing
  • Column attach Process Steps

    •
    Flip-Pack®
    Pre-loaded carrier with Columns
    Model Number Pins
    I/O    		 Pitch
    ℄    		 Pad
    Matrix    		 X/Y Size
    LGA    		 Alloy
    Construction    		 Column
    ØDia    		 Column Length
    Before Trimming    		 Device Type DWG Nbr
    Empty
    Carrier    		 DWG Nbr
    Filled    		 Fig. ℄SP 360°
    Solidworks
    Model
    FP83C143E20x91A 143 1.0mm 12x12 14.5x14.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG143
    Cobham
    Aeroflex    		 001120 831120 Fig. - ℄1.5" Model
    FP83C165F20x91A 165 1.27mm 11x15 21x25mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG165
    Cypress    		 002110 832110 Fig. - ℄1.5" Model
    FP83C169E20x91A 169 1.0mm 13x13 14.5x14.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG169
    RU    		 001130 831130 Fig. - ℄1.5" Model
    FP93C169E20x91A 169 1.0mm 13x13 14.5x14.5mm Pb90/Sn10
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG169
    RU    		 001130 931130 Fig. - ℄1.5" Model
    FP83C196E20x93A 196 1.0mm 14x14 15x15mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG196A 001140 831140 Fig. - ℄1.5" Model
    FP83C196E15x93A 196 1.0mm 14x14 15x15mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.36mm
    93mil    		 CG196B 001141 831141 Fig. - ℄1.5" Model

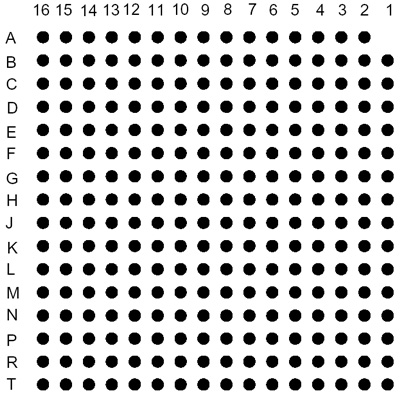

    FP90U255F20x70A 255 1.27mm 16x16 21x21mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 1.80mm
    70mil    		 CG255 002161 902161 Fig. 1 ℄1.5"
    FP93C255F20x70A 255 1.27mm 16x16 21x21mm Pb90/Sn10
    Cu Wrap    		 Ø0.51mm
    20 mil    		 1.80mm
    70mil    		 CG255 002161 932161 Fig. 1 ℄1.5"
    FP83C255F20x93A 255 1.27mm 16x16 21x21mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG255 002160 832160 Fig. 1 ℄1.5"
    FP93C255F20x93A 255 1.27mm 16x16 21x21mm Pb90/Sn10
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG255 002160 932160 Fig. 1 ℄1.5"
    FP90U255F20x91A 255 1.27mm 16x16 21x21mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG255 002160 902160 Fig. 1 ℄1.5"

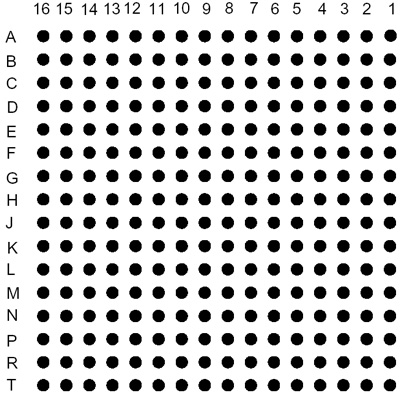

    FP85B256E20x93A 256 1.0mm 16x16 17x17mm Pb80/Sn20
    Braided    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG256 001160 851160 Fig. 2 ℄1.5" Model
    FP83C256E20x93A 256 1.0mm 16x16 17x17mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG256 001160 831160 Fig. 2 ℄1.5" Model
    FP95B256E20x93A 256 1.0mm 16x16 17x17mm Pb90/Sn10
    Braided    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG256 001160 951160 Fig. 2 ℄1.5" Model
    FP83C323E15x93A 323 1.0mm 18x18 20x20mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.36mm
    93mil    		 CG323 001180 831180 Fig. TBA ℄1.5" Model

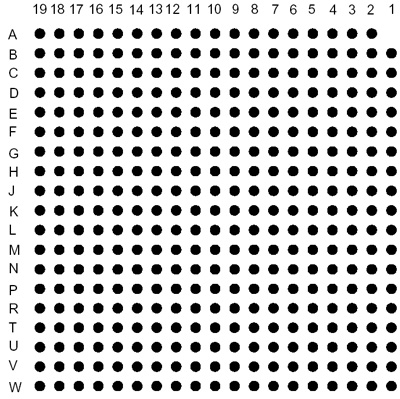

    FP83C360F20x93A 360 1.27mm 19x19 25x25mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG360 002192 832192 Fig. 5 ℄1.5" Model
    FP90U360F20x91A 360 1.27mm 19x19 25x25mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG360 002192 902192 Fig. 5 ℄1.5" Model

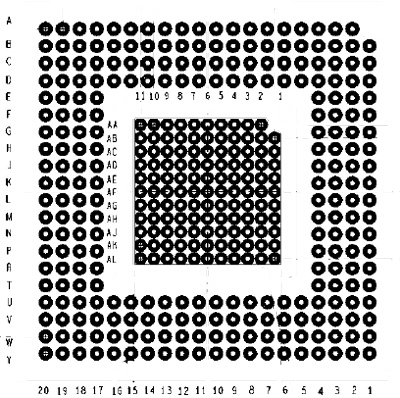

    FP83C376W20x93A
    FP83C376W20x95A    		 376 Dual
    256X=1.27mm
    120X=1.0mm    		 Dual
    20x20
    11x11    		 28x28mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 Dual
    2.36~2.41mm
    1.85~1.9mm    		 TI CCC376A 009201
    009201    		 839201
    839202    		 Fig. 7 ℄1.5" Model
    FP83C399E15x91A 399 1.0mm 20x20 21x21mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.31mm
    91mil    		 CG399 001201 831201 Fig. TBA ℄1.5" Model
    FP90U399E15x91A 399 1.0mm 20x20 21x21mm Pb90/Sn10
    Plain    		 Ø0.38mm
    15 mil    		 2.31mm
    91mil    		 CG399 001201 831201 Fig. TBA ℄1.5" Model
    FP83C468F20x91A 468 1.27mm 22x22 31x31mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Honeywell
    HXSRD01    		 002221 832221 Fig. TBA ℄1.5"

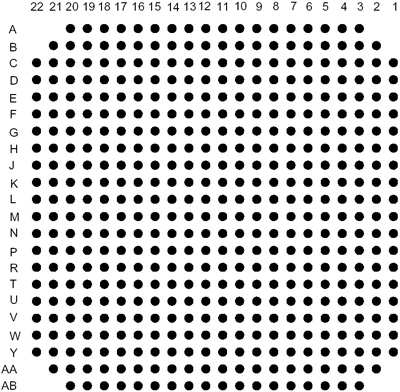

    FP83C472F20x91A 472 1.27mm 22x22 29X29mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Aeroflex
    CG472    		 002220 832220 Fig. 8 ℄1.5"
    FP90U472F20x91A 472 1.27mm 22x22 29X29mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG472 002220 902220 Fig. 8 ℄1.5"

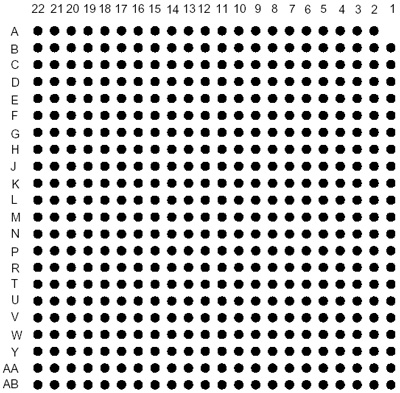

    FP17P483F20x50B
    FP19G483F20x50B    		 483 1.27mm 22x22 29X29mm Micro-Coil
    20x50    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG483 002222 832222 Fig. 9 ℄1.5"
    FP83C483F20x50B 483 1.27mm 22x22 29X29mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 CG483 002222 172222
    192222    		 Fig. 9 ℄1.5"
    FP83C483E20x91A 483 1.0mm 22x22 23x23mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel CG483 001222 831222 Fig. 9 ℄1.5" Model
    FP83C529E20x91A 529 1.0mm 22x22 24x24mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG529 001230 831230 Fig. xx ℄1.5" Model
    FP93C529E20x91A 529 1.0mm 22x22 24x24mm Pb90/Sn10
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG529 001230 931230 Fig. xx ℄1.5" Model
    FP83C576F20x93A 576 1.27mm 28x28 37.5x37.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 ASIC CG576 002284 832284 Fig. xx ℄1.5" Model
    FP90U576F20x91A 576 1.27mm 28x28 37.5x37.5mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 ASIC CG576 002284 902284 Fig. xx ℄1.5" Model

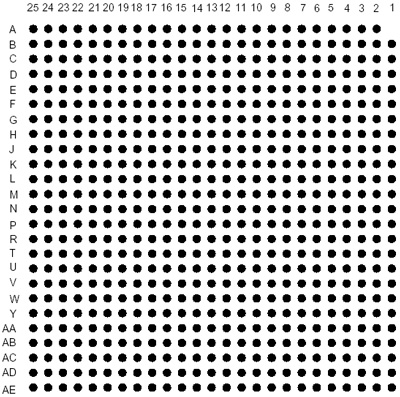

    FP83C624F20x91A 624 1.27mm 25x25 32.5x32.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel CG624 002250 832250 Fig. 13 ℄1.5" Model
    FP83C624F20x93A 624 1.27mm 25x25 32.5x32.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 Actel CG624 002250 832254 Fig. 13 ℄1.5" Model
    FP83C624F20x100A 624 1.27mm 25x25 32.5x32.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.54mm
    100mil    		 Actel CG624 002251 832251 Fig. 13 ℄1.5" Model
    FP83C624F22x100A 624 1.27mm 25x25 32.5x32.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.56mm
    22 mil    		 2.54mm
    100mil    		 Actel CG624 002252 832252 Fig. 13 ℄1.5" Model
    FP90U624F20x91A 624 1.27mm 25x25 32.5x32.5mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel CG624 002250 902250 Fig. 13 ℄1.5" Model
    FP17P624F20x50A 624 1.27mm 25x25 32.5x32.5mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Actel CG624 002250 172250 Fig. 13 ℄1.5" Model
    FP19G624F20x50A 624 1.27mm 25x25 32.5x32.5mm Micro-Coil
    Gold
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Actel CG624 002250 192250 Fig. 13 ℄1.5" Model

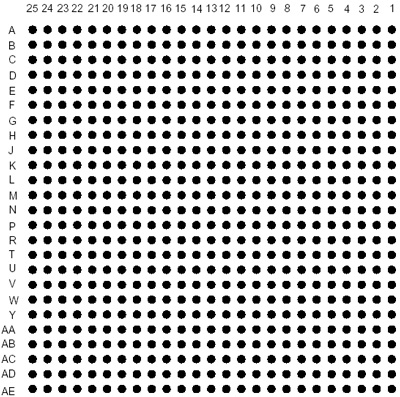

    FP83C625E20x93A 625 1.0mm 25x25 29x29mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG625 001250 831250 Fig. 14 ℄1.5" Model
    FP83C672F20x91RU 672 1.27mm 26x26 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG672 002260 832260 Fig. 15 ℄1.5"
    FP93C672F20x91RU 672 1.27mm 26x26 35x35mm Pb90/Sn10
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG672 002260 932260 Fig. 15 ℄1.5"

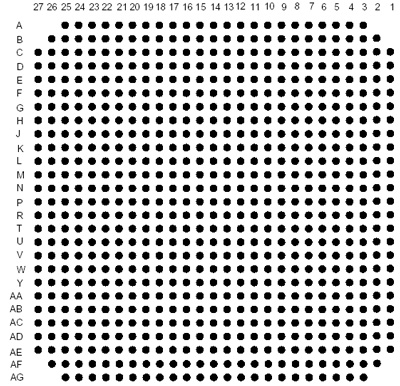

    FP83C717F20x91A 717 1.27mm 27x27 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx CG717 002271 832271 Fig. 16 ℄1.5" Model
    FP90U717F20x91A 717 1.27mm 27x27 35x35mm Pb90/Sn10 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx CG717 002271 902271 Fig. 16 ℄1.5" Model
    FP17P717F20x50A 717 1.27mm 27x27 35x35mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Xilinx CG717 002271 172271 Fig. 16 ℄1.5" Model
    FP19G717F20x50A 717 1.27mm 27x27 35x35mm Micro-Coil
    Ni-Au
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Xilinx CG717 002271 192271 Fig. 16 ℄1.5" Model
    FP83C771Y20x145A 771 1.17/1.09mm 30x33 37.5x37.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 3.7mm
    145mil    		 Intel WCGA771 009333 839333 - ℄1.5" Model

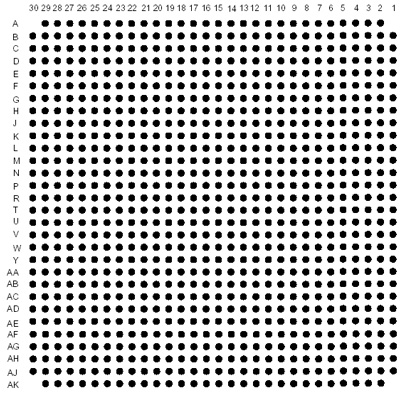

    FP83C896E20x93A 896 1.0mm 30x30 31x31mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 Actel CG896 001300 831300 Fig. 18 ℄1.5" Model
    FP83C896E15x91A 896 1.0mm 30x30 31x31mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.31mm
    91mil    		 Actel FG896 001301 831301 Fig. 18 ℄1.5" Model
    FP83C896E16x93A 896 1.0mm 30x30 31x31mm Pb80/Sn20
    Cu Wrap    		 Ø0.40mm
    16 mil    		 2.36mm
    93mil    		 CG896 001305 831305 Fig. 18 ℄1.5" Model
    FP83C898E20x93RU 898 1.0mm 30x30 31x31mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    87mil    		 CG896-RU 001303 831303 Fig. 18A ℄1.5" Model

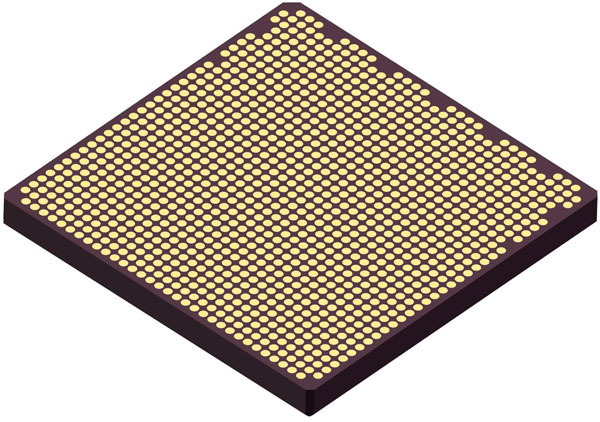

    FP83C1136E20x91A 1136 1.0mm 34x34 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel
    CG1136    		 001343 831343 Fig. XX ℄1.5" Model
    FP80U1136E20x91A 1136 1.0mm 34x34 35x35mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel
    CG1136    		 001343 901343 Fig. XX ℄1.5" Model
    FP83C1140E20x91A 1140 1.0mm 34x34 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx
    CF1140
    CN1140    		 001340 831340 Fig. 20 ℄1.5" Model
    FP90U1140E20x91A 1140 1.0mm 34x34 35x35mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx
    CF1140    		 001344 901344 Fig. 20 ℄1.5" Model
    FP90U1140E20x100A 1140 1.0mm 34x34 35x35mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.54mm
    100mil    		 Xilinx
    CF1140    		 001340 901340 Fig. 20 ℄1.5" Model
    FP17P1140E20x50A 1140 1.0mm 34x34 35x35mm Micro-coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Xilinx
    CF1140
    CN1140    		 001340 171340 Fig. 20 ℄1.5" Model

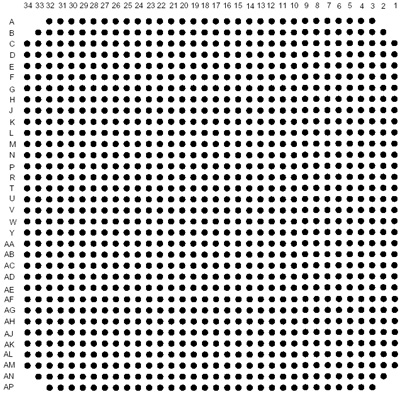

    FP83C1144E20x93A 1144 1.0mm 34x34 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 Xilinx
    CF1144
    CN1144    		 001341 831341 Fig. 21 ℄1.5" Model
    FP90U1144E20x91A 1144 1.0mm 34x34 35x35mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx
    CF1144
    CN1144    		 001341 901341 Fig. 21 ℄1.5" Model
    FP17P1144E20x50A 1144 1.0mm 34x34 35x35mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Xilinx
    CF1144
    CN1144    		 001341 171341 Fig. 21 ℄1.5" Model

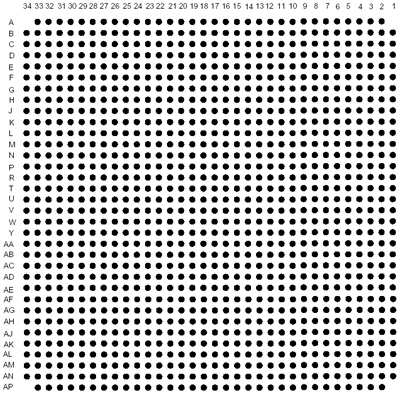

    FP83C1152E20x91A 1152 1.0mm 34x34 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel
    CG1152
    Microsemi    		 001342 831342 Fig. 22 ℄1.5" Model
    FP90U1152E20x91A 1152 1.0mm 34x34 35x35mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel
    CG1152
    Microsemi    		 001342 901342 Fig. 22 ℄1.5" Model
    FP17P1152E20x50A 1152 1.0mm 34x34 35x35mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Actel
    CG1152
    Microsemi    		 001342 171342 Fig. 22 ℄1.5" Model
    FP19G1152E20x50A 1152 1.0mm 34x34 35x35mm Micro-Coil
    Ni-Au Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Actel
    CG1152
    Microsemi    		 001342 191342 Fig. 22 ℄1.5" Model
    FP83C1152E15x91A 1152 1.0mm 34x34 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.31mm
    91mil    		 Microsemi
    FC1152
    FCG1152    		 001346 831346 Fig. 22 ℄1.5" Model
    FP17P1152E16x40A 1152 1.0mm 34x34 35x35mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.40mm
    16 mil    		 1.0mm
    40mil    		 Microsemi
    FC1152
    FCG1152    		 001346 171346 Fig. 22 ℄1.5" Model
    FP19G1152E16x40A 1152 1.0mm 34x34 35x35mm Micro-Coil
    Au-Ni
    Plated    		 Ø0.40mm
    16 mil    		 1.0mm
    40mil    		 Microsemi
    FC1152
    FCG1152    		 001346 191346 Fig. 22 ℄1.5" Model
    FP83C1156E15x95A 1156 1.0mm 34x34 35x35mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.41mm
    95mil    		 Xilinx
    FF1156    		 001349 831349 Fig. 23 ℄1.5" Model
    FP83C1221E20x93A 1221 1.0mm 35x35 37.5x37.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG1221 001350 831350 -- ℄1.5" Model
    FP83C1272E20x91A 1272 1.0mm 36x36 37.5x37.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel
    CG1272
    Microsemi    		 001360 831360 Fig. 24 ℄1.5" Model
    FP90U1272E20x91A 1272 1.0mm 36x36 37.5x37.5mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Actel
    CG1272
    Microsemi    		 001360 901360 Fig. 24 ℄1.5" Model
    FP17P1272E20x50A 1272 1.0mm 36x36 37.5x37.5mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Actel
    CG1272
    Microsemi    		 001360 171360 Fig. 24 ℄1.5" Model
    FP83C1291E20x93A 1291 1.0mm 36x36 37.5x37.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.351mm
    20 mil    		 2.36mm
    93mil    		 CG1291 001361 831361 - ℄1.5" Model
    FP83C1295E20x93A 1295 1.0mm 36x36 37.5x37.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.351mm
    20 mil    		 2.36mm
    93mil    		 CG1295 001362 831362 - ℄1.5" Model
    FP83C1509E20x93A 1509 1.0mm 39x39 40x40mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Microchip
    1509    		 001394 831394 Fig. 25 ℄1.65" Model
    FP83C1657E20x93A 1657 1.0mm 41x41 42.5x42.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG1657 001410 831410 Fig. 27 ℄1.65" Model
    FP85B1657E20x95B 1657 1.0mm 41x41 42.5x42.5mm Pb80/Sn20
    Braided    		 Ø0.51mm
    20 mil    		 2.41mm
    95mil    		 CG1657 001410 851410 Fig. 27 ℄1.65" Model
    FP95B1657E20x93B 1657 1.0mm 41x41 42.5x42.5mm Pb90/Sn10
    Braided    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 CG1657 001410 951410 Fig. 27 ℄1.65" Model
    FP90U1657E20x91A 1657 1.0mm 41x41 42.5x42.5mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG1657 001410 901410 Fig. 27 ℄1.65" Model
    FP17P1657E20x50A 1657 1.0mm 41x41 42.5x42.5mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 2.54mm
    50mil    		 CG1657 001410 171410 Fig. 27 ℄1.65" Model
    FP83C1738E15x91A 1738 1.0mm 42x42 42.5x42.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.31mm
    91mil    		 FF1738
    EF1738    		 001424
    1.68sp    		 831424 Fig. 28 ℄1.68" Model
    FP17P1738E16x40A 1738 1.0mm 42x42 42.5x42.5mm Micro-Coil
    Sn60/Pb40
    Plated    		 Ø0.40mm
    16 mil    		 1.0mm
    40mil    		 FF1738
    EF1738    		 001424
    1.68sp    		 171424 Fig. 28 ℄1.68" Model
    FP19G1738E16x40A 1738 1.0mm 42x42 42.5x42.5mm Micro-Coil
    Ni/Au
    Plated    		 Ø0.40mm
    16 mil    		 1.0mm
    40mil    		 FF1738
    EF1738    		 001424
    1.68sp    		 191424 Fig. 28 ℄1.68" Model
    FP83C1752E20x91A 1752 1.0mm 42x42 45x45mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx
    CF1752
    CN1752    		 001422
    1.65sp    		 831422 Fig. 29 ℄1.65" Model
    FP83C1752E20x93A 1752 1.0mm 42x42 45x45mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.36mm
    93mil    		 Xilinx
    CF1752
    CN1752    		 001422
    1.65sp    		 831423 Fig. 29 ℄1.65" Model
    FP90U1752E20x91A 1752 1.0mm 42x42 45x45mm Pb90/Sn10
    Plain    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 Xilinx
    CF1752
    CN1752    		 001422
    1.65sp    		 901422 Fig. 29 ℄1.65" Model
    FP17P1752E20x50A 1752 1.0mm 42x42 45x45mm Micro-coil
    Sn60/Pb40
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Xilinx
    CF1752
    CN1752    		 001422
    1.65sp    		 171422 Fig. 29 ℄1.65" Model
    FP17G1752E20x50A 1752 1.0mm 42x42 45x45mm Micro-coil
    Ni-Au
    Plated    		 Ø0.51mm
    20 mil    		 1.27mm
    50mil    		 Xilinx
    CF1752
    CN1752    		 001422
    1.65sp    		 191422 Fig. 29 ℄1.65" Model
    FP83C1752E15x91A 1752 1.0mm 42x42 42.5x42.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.38mm
    15 mil    		 2.31mm
    91mil    		 Xilinx
    FF1752
    Plastic    		 001423
    1.65sp    		 831423 Fig. 29 ℄1.65" Model
    FP83C1752F20x91RU 1752 1.27mm 44x44
    Perimeter    		 57x57mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG1752RU 002440
    2.6sp    		 832440 Fig. 30 ℄2.6" Model
    FP93C1752F20x91RU 1752 1.27mm 44x44
    Perimeter    		 57x57mm Pb90/Sn10
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG1752RU 002440
    2.6sp    		 932440 Fig. 30 ℄2.6" Model

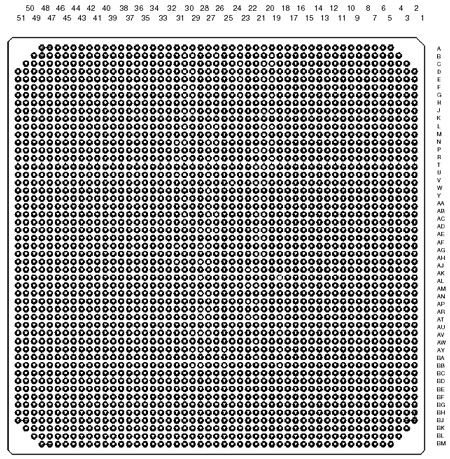

    FP83C2577E20x91A 2577 1.0mm 51x51 52.5x52.5mm Pb80/Sn20
    Cu Wrap    		 Ø0.51mm
    20 mil    		 2.31mm
    91mil    		 CG2577 001510 831510 Fig. 30 ℄2.6" Model
    FP55H5476E12x50A 5476 1.0mm 74x74 75x75mm Sn91.5/Sb8.5
    Braided    		 Ø0.30mm
    12 mil    		 1.27mm
    50mil    		 CG5476 001740 551740 Fig. XX ℄3.6" Model
    Note 1: Contact TopLine for assistance for Flip-Pack configurations not shown above.
    Note 2: Recommended column length is 91mils (2.31mm) before planarizing. Final trim length 87mils (2.21mm) after planarizing columns on CCGA.



    Matrix Diagram - Solder Columns.
    Other sizes avaiable.
    Fig. 1
    255 Pins - 16x16

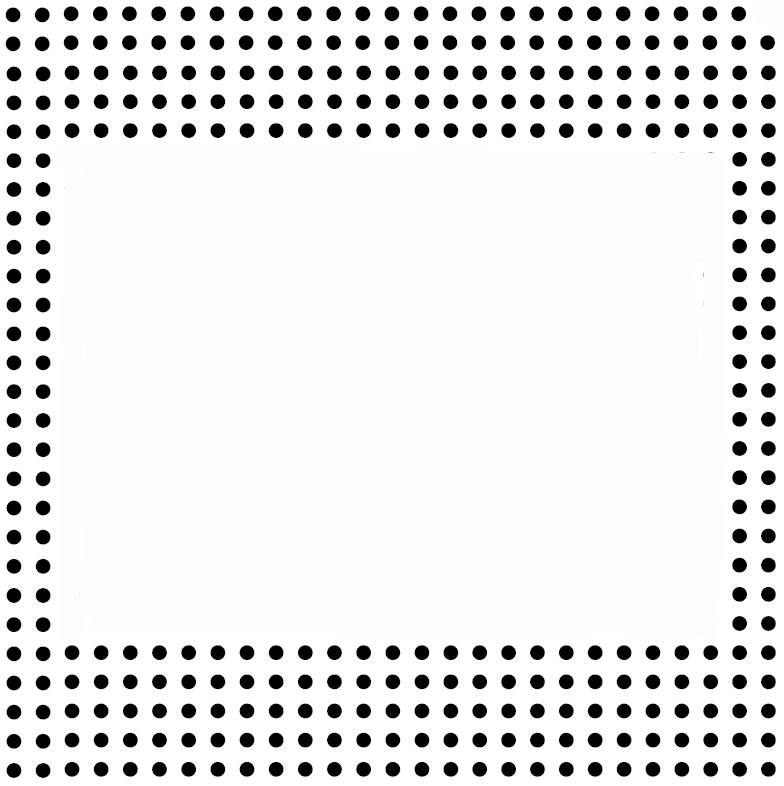

    Pitch 1.27mm - 21x21mm    		 Fig. 2
    337 Pins - 27x27
    Pitch 1.27mm - 35x35mm    		 Fig. 3

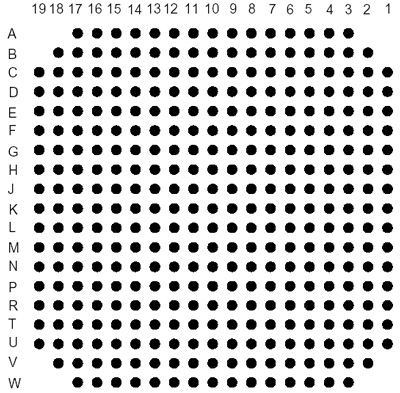

    349 Pins - 19x19
    Pitch 1.27mm - 25x25mm    		 Fig. 4

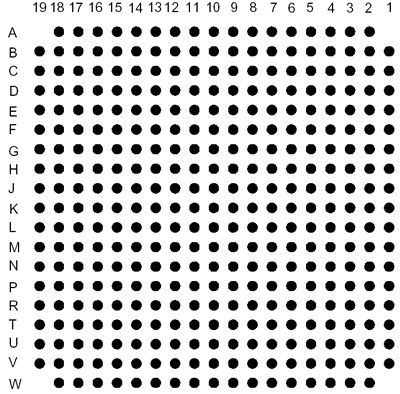

    357 Pins - 19x19
    Pitch 1.27mm - 25x25mm    		 Fig. 5
    360 Pins - 19x19
    Pitch 1.27mm - 25x25mm

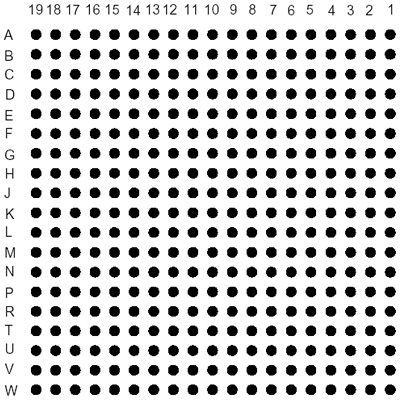

    Fig. 6
    361 Pins - 19x19
    Pitch 1.27mm - 25x25mm    		 Fig. 7
    376 Pins - 20x20
    Pitch 1.0~1.27mm
    Size 28x28mm    		 Fig. 8
    472 Pins - 22x22
    Pitch 1.27mm - 31x31mm    		 Fig. 9
    483 Pins - 22x22
    Pitch 1.0mm - 23x23mm    		 Fig. 10

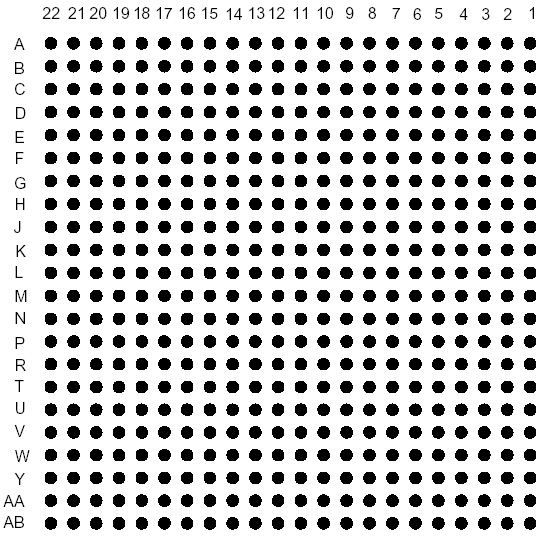

    484 Pins - 22x22
    Pitch 1.0mm - 23x23mm

    Fig. 11
    517 Pins - 23x23
    Pitch 1.27mm - 31x31mm    		 Fig. 12

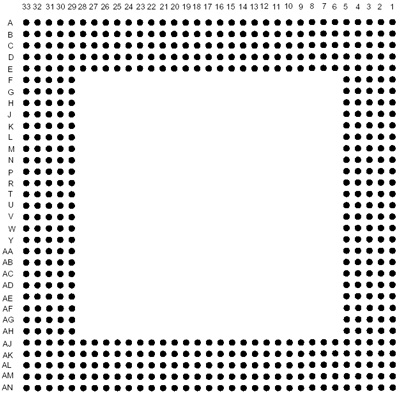

    560 Pins - 33x33
    Pitch 1.27mm - 42.5x42.5mm    		 Fig. 13
    624 Pins - 25x25
    Pitch 1.27mm - 32.5x32.5mm    		 Fig. 14
    625 Pins - 25x25
    Pitch 1.27mm - 32.5x32.5mm    		 Fig. 15
    672 Pins - 26x26
    Pitch 1.0mm - 27x27mm

    Fig. 16
    717 Pins - 27x27
    Pitch 1.27mm - 31x31mm    		 Fig. 17

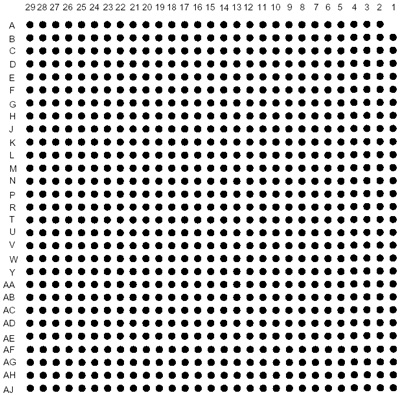

    840 Pins - 29x29
    Pitch 1.27mm - 50x50mm    		 Fig. 18
    896 Pins - 30x30
    Pitch 1.0mm - 31x31mm    		 Fig. 19A/B

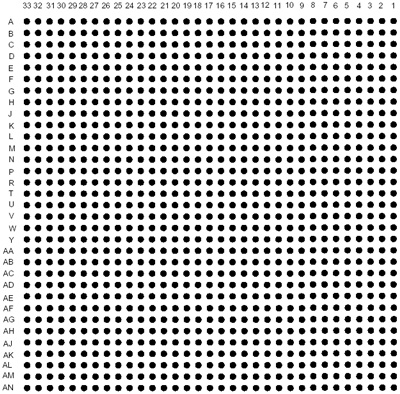

    1077/1089 Pins - 33x33
    Pitch 1.27mm - 42.5x42.5mm    		 Fig. 20
    1140 Pins - 34x34
    Pitch 1.0mm - 35x35mm

    Fig. 21
    1144 Pins - 34x34
    Pitch 1.0mm - 35x35mm    		 Fig. 22
    1152 Pins - 34x34
    Pitch 1.0mm - 35x35mm    		 Fig. 23
    1156 Pins - 34x34

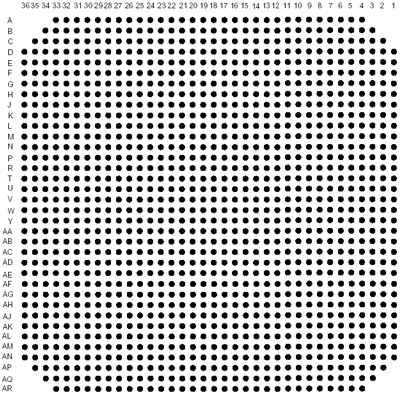

    Pitch 1.0mm - 35x35mm    		 Fig. 24
    1272 Pins - 36x36

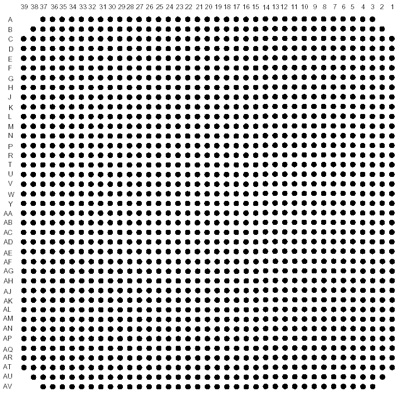

    Pitch 1.0mm - 37.5x37.5mm    		 Fig. 25
    1509 Pins - 39x39
    Pitch 1.0mm - 40x40mm

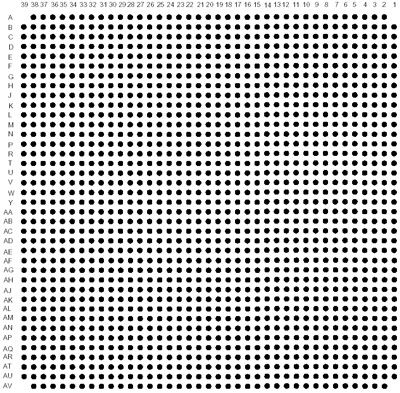

    Fig. 26
    1517 Pins - 39x39
    Pitch 1.0mm - 40x40mm    		 Fig. 27

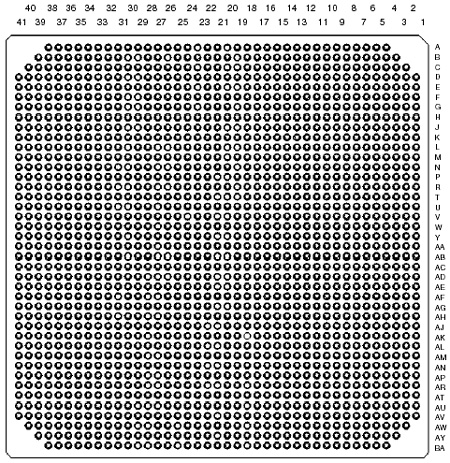

    1657 Pins - 41x41
    Pitch 1.0mm - 42.5x42.5mm    		 Fig. 28

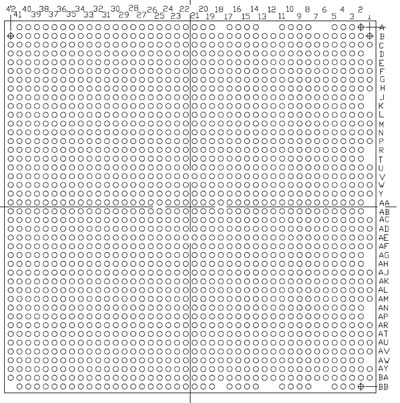

    1738 Pins - 42x42
    Pitch 1.0mm - 42.5x42.5mm
    Plastic    		 Fig. 29
    1752 Pins - 42x42

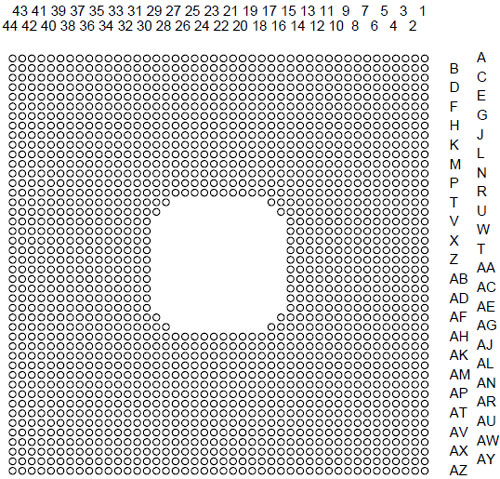

    Pitch 1.0mm - 45x45mm    		 Fig. 30
    1752RU Pins - 44x44
    Pitch 1.27mm - 57x57mm

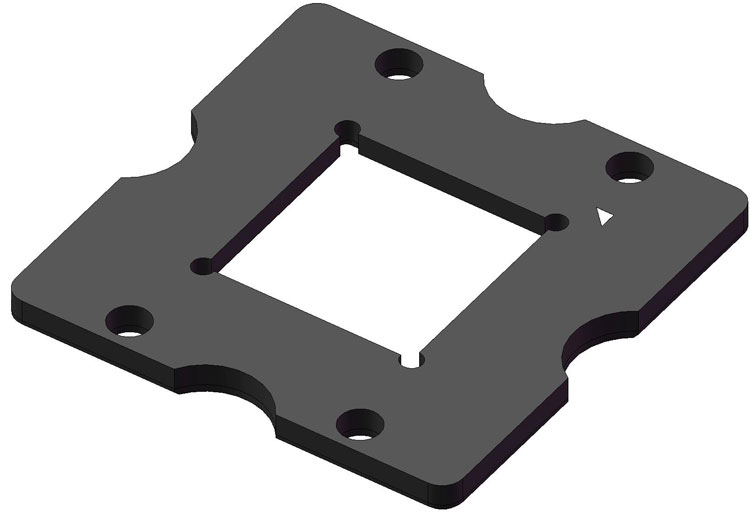

    Top View
    Universal Tool 700011
    Holds all 2-inch Flip-Pack
    Bottom View     		C7-INSERT
    INSERTION TOOL
    For FLIP-PACK®
    Allows easy insertion of new FLIP-PACK into graphite tool set. Place the FLIP-PACK into insertion tool. Invert the graphite tool upside down and place on top of the insertion tool. Flip graphite tool set right side up. Columns will gently fall with gravity into the silos in the graphite tool. Remove the FLIP-PACK with your fingers. Place graphite into reflow oven to attach columns onto the CCGA.

    How Insert Tool works
    More details about column attachment Process Steps

    FP Flip-Pack ®
    Model Number System
        FP         8        3        C        1152         E         20     x     93         A
    Series Alloy Construction Plating Nbr Pins Pitch Column Diameter
    Mils    		   Column Length
    Mils    		 Version
    FILLED With Columns:
    FP = FLIP-PACK ®
    PP = PIN-PACK®
    IP = Interposer



    EMPTY Flip-Pack Set
    Set with Covers:
    FS = FLIP-PACK SET
    		 Code • Alloy
    1 = Micro-Coil
    3 = Cu Copper
    5 = Lead Free
    8 = Pb80/Sn20
    9 = Pb90/Sn10
    		 Code • Description
    0 = Unplated
    1 = Cu Pillar
    3 = Cu Wrap
    4 = In Braid 16X
    5 = Cu Braid 16X
    7 = Micro-Coil Pb
    9 = Micro-Coil Au

    Under Development
    2 = TBA
    6 = TBA
    8 = TBA
    		 Code • Plating
    B = Cu Braid (SnPb)
    C = Cu Wrap (Sn/Pb)
    F = NiPdAu (ENIPEG)
    P = MCS (Sn/Pb)
    G = MCS (Ni/Au)
    H = Cu Braid (RoHS)
    U = Unplated
    		 Pins • Matrix
    255 = 16x16
    349 = 19x19
    360 = 19x19
    472 = 22x22
    483 = 22x22
    484 = 22x22
    517 = 23x23
    624 = 25x25
    672 = 26x26
    717 = 27x27
    896 = 30x30
    1140 = 34x34
    1144 = 34x34
    1148 = 34x34
    1152 = 34x34
    1272 = 36x36
    1509 = 39x39
    1588 = 40x40
    1657 = 41x41
    1752 = 42x42
    2577 = 51x51
    		 Code • Pitch
    B = 0.5mm
    C = 0.65mm
    D = 0.8mm
    E = 1.0mm
    F = 1.27mm
    G = 2.54mm

    Odd Pitch:
    V = 1.0mm Stagger
    W = 1.00/1.27mm
    Y = 1.17/1.09mm
    Z = Other
    		 Code •     Metric
    Ø8 mil • 0.200mm
    Ø9 mil • 0.230mm
    Ø10mil • 0.250mm
    Ø11mil • 0.280mm
    Ø12mil • 0.300mm
    Ø14mil • 0.350mm
    Ø15mil • 0.380mm
    Ø16mil • 0.400mm
    Ø18mil • 0.450mm
    Ø20mil • 0.510mm
    Ø22mil • 0.560mm
    Ø35mil • 0.889mm
    		  Code •   Metric
    40mil • 1.00mm
    50mil • 1.27mm
    63mil • 1.60mm
    75mil • 1.90mm
    87mil • 2.21mm
    91mil • 2.31mm
    93mil • 2.36mm
    95mil • 2.41mm
    100mil • 2.54mm
    110mil • 2.80mm
    145mil • 3.68mm
    150mil • 3.81mm
    		 Code
    A
    B
    C
    D
    E


    FP Flip-Pack ®
    Drawing Number System
        8         3         1         34         0
    Alloy Construction Pitch Array Version

    Code • Columns
    1 = Micro-Coil
    3 = Cu Column
    5 = Sn91.5/Sb8.5
    8 = Pb80/Sn20
    9 = Pb90/Sn10

    -------------------

    00 = Empty FLIP-PACK®


    Code • Description
    0 = Unplated Bare
    1 = Cu Column + Au
    3 = Cu Ribbon + Sn/Pb
    4 = In Braid 16X
    5 = Cu Braid 16X
    7 = Micro-coil + Sn/Pb
    9 = Micro-coil + Ni/Gold

    Under Development
    2 = TBA
    6 = TBA
    8 = TBA

    Code • Pitch
    1 = 1.0mm
    2 = 1.27mm
    4 = 0.4mm
    5 = 0.5mm
    6 = 0.65mm
    8 = 0.8mm
    9 = Other
    Code • Matrix
    21 = 21x21
    22 = 22x22
    24 = 24x24
    25 = 25x25
    26 = 26x26
    27 = 27x27
    30 = 30x30
    34 = 34x34
    36 = 36x36
    39 = 39x39
    41 = 41x41
    42 = 42x42
    44 = 44x44
    46 = 46x46
    51 = 51x51
    58 = 58x58
    74 = 74x74

    Rectangular
    85 = 21x25

    Solder Column:
    Code • Version
    0 = Rev A
    1 = Rev B
    2 = Rev C
    3 = Rev D
    Etc.

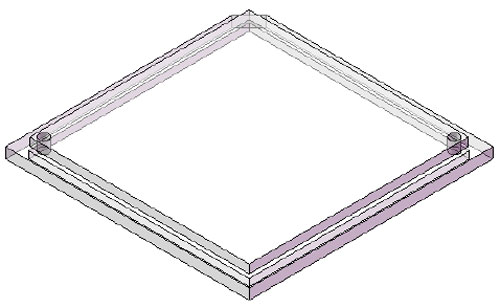

    Covers
    Drawing Number System
        0         010         40
    Flip-Pack Cover Type Color/Version

    Code • Description
    00 = FLIP-PACK Cover


    Code • Type
    10 = Screw Style Fastener
    TOP COVERS:
    40 = Clear Waffle 2" (2x Hole 4-40 - 1.50"SP)
    46 = Clear Waffle 2" (2x Hole 2-56 - 1.65"SP)
    48 = Clear Waffle 2" (2x Hole 1-72 - 1.68"SP)
    75 = Clear Waffle 4" (2x Hole 4-40 - 3.375"SP)
    76 = Clear Waffle 3" (2x Hole 4-40 - 2.60"SP)


    BOTTOM RETENTION PLATE:
    50 = Clear Flat 1.8" (4x Hole 4-40 - 1.50"SP)
    66 = Clear Flat 1.8" (4x Hole 2-56 - 1.65"SP)
    68 = Clear Flat 1.8" (4x Hole 1-72 - 1.68"SP)
    69 = Clear Flat 2.78" (4x Hole 4-40 - 2.60"SP)
    74 = Clear Flat 3.6" (4x Hole 4-40 - 3.375"SP)


    COVERS/FRAME/BOTTOMS:
    62 = Clear Flat TOP 3.0" (4x Hole 4-40 - 2.60"SP)
    64 = Frame 3.0" x 0.072 (4x Hole 4-40 - 2.60"SP)
    67 = Clear BOTTOM 3.0" (4x Hole 4-40 - 2.60"SP)
    72 = Dome Top Cover 3" (4x Hole 4-40 - 2.60"SP)
    73 = Clear BOTTOM 3" (4x 4-40-2.60"SP / 4x 1-72-2.10"SP)


    Hardware
    DWG Number Description Thread
    ØDiameter    		 Length Slot Screw Driver
    704018 Thumbscrew 4-40 0.187 Knurl Head -
    704025 Thumbscrew 4-40 0.250 Knurl Head -
    704029 Cap Screw 4-40 0.125" 3/32" 704002
    704034 Button Head Screw 4-40 0.156" 1/16" 704000
    704033 Cap Screw 4-40 0.156" 3/32" 704002
    704035 Button Head Screw 4-40 0.187" 1/16" 704000
    704037 Cap Screw 4-40 0.187" 3/32" 704002
    704039 Button Head Screw 4-40 0.250" 1/16" 704000
    704011 Set Screw 4-40 0.375" 3/64" 704003
    705612 Button Head Screw 2-56 0.125" 3/64" 704003
    705615 Button Head Screw 2-56 0.156" 3/64" 704003
    705618 Button Head Screw 2-56 0.187" 3/64" 704003
    705625 Cap Screw 2-56 0.250" 5/64" 704005
    707212 Button Head Screw 1-72 0.125" 3/64" 704003
    707216 Button Head Screw 1-72 0.156" 3/64" 704003
    707218 Button Head Screw 1-72 0.187" 3/64" 704003
    707225 Cap Screw 1-72 0.25" 1/16" 704000


    Flip Pack® Accessories
    SP Flip-Pack®
    Carrier
    Size X/Y
    Column Length    		 CCGA
    Pad Pitch
    Pad Matrix    		 Top
    Cover    		 Bottom
    Retention
    Plate    		 Top
    Screw    		 Bottom
    Screw
    1.5" 2-inch Molded
    DWG 120254
    Column ≤ 2.54mm
    -----
    DWG 120280
    Column ≤ 2.80mm
    ------
    DWG 120406
    Column ≤ 4.00mm    		 Pitch=1.0mm
    Matrix ≤ 36x36
    ------
    Pitch=1.27mm
    Matrix ≤ 27x27    		 DWG 001040
    FP2.0-COVER-1.5A
    Hole Space 1.50-inch    		 DWG 001051
    FP1.8-BOTTOM-1.5B
    Hole Space 1.50-inch
    0.091" Thick    		 DWG 704018
    Thumb Screw
    4-40 x .187"    		 DWG 704035
    Button Head
    4-40 x 0.187"
    Tool 704000
    1.65" 2-inch Molded
    DWG 120254
    Column ≤ 2.54mm
    -----
    DWG 120280
    Column ≤ 2.80mm
    ------
    DWG 120406
    Column ≤ 4.00mm    		 CCGA1752
    Pitch=1.0mm
    X/Y = 45mm
    Matrix 42x42    		 DWG 001046
    FP2.0-COVER-1.65A
    Hole Space 1.65-inch    		 DWG 001061
    FP1.8-BOTTOM-1.65B
    Hole Space 1.65-inch
    0.091" Thick    		 DWG 705625
    CAP Screw
    2-56 x .250"
    Tool 704005    		 DWG 705618
    Button Head
    2-56 x 0.187"
    Tool 704003
    1.68" 2-inch Molded
    DWG 120254
    Column ≤ 2.54mm
    -----
    DWG 120280
    Column ≤ 2.80mm
    ------
    DWG 120406
    Column ≤ 4.00mm    		 BGA1738
    Pitch=1.0mm
    X/Y = 42.5mm
    Matrix 42x42    		 DWG 001048
    FP2.0-COVER-1.68A
    Hole Space 1.68-inch    		 DWG 001071
    FP1.8-BOTTOM-1.68B
    Hole Space 1.68-inch
    0.091" Thick    		 DWG 707225
    CAP Screw
    1-72 x .250"
    Tool 704000    		 DWG 707218
    Button Head
    1-72 x 0.187"
    Tool 704003
    2.6" 3-inch Molded
    O.D. 3.0-inch
    DWG 143260
    Column ≤ 2.54mm    		 Pitch=1.0mm
    Matrix 60x60
    ------
    Pitch=1.27mm
    Matrix ≤ 48x48    		 Molded
    DWG 143000
    FP3.0-COVER-2.6A
    Hole Space 2.6-inch    		 DWG 001069
    0.091" Thick
    FP2.78-BOT-2.6A
    Hole Space 2.60-inch    		 DWG 704025
    Thumb Screw
    4-40 x .250"    		 DWG 704035
    Button Head
    4-40 x 0.187"
    Tool 704000
    2.6" Machined
    O.D. 3.0-inch
    I.D. 2.33-inch
    DWG 002440
    Column ≤ 2.54mm    		 Pitch=1.0mm
    Matrix 54x54
    ------
    Pitch=1.27mm
    Matrix ≤ 44x44    		 DWG 001062
    DWG 001072
    FP3.0-COVER-2.6A
    Hole Space 2.6-inch
    Frame DWG 001064    		 DWG 001067
    0.091" Thick
    -------
    DWG 001073
    0.125" Thick
    -----
    FP3.0-BOT-2.6A
    Hole Space 2.60-inch    		 DWG 704025
    Thumb Screw
    4-40 x .250"    		 DWG 707218
    Button Head
    1-72 x 0.187"
    Tool 704003
    3.6" 4-inch Molded
    O.D. 4.0-inch
    DWG 140900
    Column ≤ 2.54mm    		 Pitch=1.0mm
    Matrix 90x90
    ------
    Pitch=1.27mm
    Matrix ≤ 70x70    		 Molded 140900
    DWG 001075
    FP4.0-COVER-3.6A
    Hole Space 3.6-inch    		 DWG 001074
    0.091" Thick
    FP3.375-BOT-2.6A
    Hole Space 2.60-inch    		 DWG 704025
    Thumb Screw
    4-40 x .250"    		 DWG 704035
    Button Head
    4-40 x 0.187"
    Tool 704000
    Packaging: DWG 782200 FP2.0-JEDEC(x8)   •   DWG 782250 FP2.0-COVER-JEDEC(x8)   •   DWG 090007 4.5" ESD Rubber band

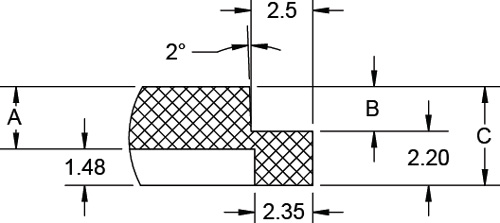

    Flip-Pack® BASE

    Model Number X/Y Size
    O.D.    		 Column
    Length
    Max    		 A B C Mat'l
    Construction    		 DWG Nbr Fig. 360°
    Solidworks
    Model
    FP2-2.54-BLACK 1.996" SQ
    (50.7mm)    		 0.100"
    (2.54mm)    		 2.54mm 1.82mm
    		 4.02mm
    		 Dissipative 105Ω
    Black PC
    Carbon Filled    		 120254

    		Model
    FP2-2.80-BLACK 1.996" SQ
    (50.7mm)    		 0.110"
    (2.80mm)    		 2.80mm 2.08mm
    		 4.28mm
    		 Dissipative 105Ω
    Black PC
    Carbon Filled    		 120280 Model
    FP2-4.06-BLACK 1.996" SQ
    (50.7mm)    		 0.160"
    (4.06mm)    		 4.06mm 3.34mm
    		 5.54mm
    		 Dissipative 105Ω
    Black PC
    Carbon Filled    		 120406 Model
    FP3-2.60-BLACK 3.000" SQ
    (76.2mm)    		 0.100"
    (2.6mm)    		 2.60mm 1.85mm
    		 4.20mm
    		 Dissipative 105Ω
    Black PC
    Carbon Filled    		 143260 Model
    FP4-3.60-BLACK 4.000" SQ
    (100mm)    		 0.100"
    (2.6mm)    		 2.60mm 1.09mm
    		 5.14mm
    		 Dissipative 105Ω
    Black PC
    Carbon Filled    		 140900 Model
    Note 1: Contact TopLine for assistance for configurations not shown above.



    ØColumn Diameter and Hole Diameter (Typ.)

    Column
    Ø10mil (Ø0.25mm)
    Ø12mil (Ø0.30mm)
    Ø14mil (Ø0.35mm)
    Ø15mil (Ø0.38mm)
    Ø16mil (Ø0.41mm)
    Ø20mil (Ø0.51mm)
    Ø22mil (Ø0.56mm)
    Ø35mil (Ø0.89mm)

    Hole (Silo)
    Ø13.8mil (Ø0.35mm)
    Ø16mil (Ø0.406mm)
    Ø18mil (Ø0.457mm)
    Ø20mil (Ø0.508mm)
    Ø20mil (Ø0.508mm)
    Ø24mil (Ø0.61mm)
    Ø26mil (Ø0.66mm)
    Ø39mil (Ø0.99mm)




    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    HS Code: 8311.30.3000 LEAD-TIN SOLDERS
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.



    Download Solidworks® e-Drawing viewer to enjoy 360° rotatable models.
    For PC   •   MAC Version




    TopLine Corporation
    95 Highway 22 W
    Milledgeville, GA 31061, USA
    Toll Free USA/Canada (800) 776-9888
    International: 1-478-451-5000
    Email: sales@topline.tv

     ©2025 TopLine. All Rights Reserved.

    Home
