| C7-SET - Complete Tool-Set for Attachment of Solder Columns |

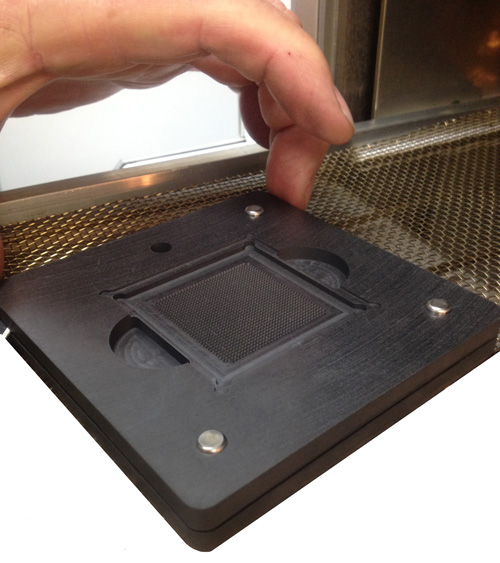

Place in Oven
|
What is it.
C7-SET. One part number orders a complete tool-set for attachment of solder columns for your specific CGA device. Designed for ceramic Land Grid Array (LGA) substrates. Also reworks plastic BGA into column grid arrays. Expandable to your needs. The C7-SET includes a manual stencil printer, stencil, graphite fixtures to hold the CGA substrate and align the Pin-PackTM cassette. A basic C7-SET tool-set can process volumes up to 500 CGA packages per month. Just add more graphite fixtures to increase throughput to 10,000 packages per month. Tooling change-over for a new CGA device is quick.
What's Included:
Manual stencil printer
4.25" stencil
Bottom graphite
Top graphite
hardware
Not Included:
Solder Columns
Pin-PackTM Preloaded with Columns - Order Separately.
Pallets: Needed only if you use your own stencil printer.
Sn63/Pb37 Solder Paste: Sold separately
Column trimming & lapping: Sold separately
Reflow oven: Use your own vapor phase reflow oven or 12-zone convection oven.
|
Model C7-SET
Benchtop Tool-Set for Attachment of Solder Columns |
| DWG Number |
Tool Set
Model Number |
LGA Pads
I/O |
Matrix |
Substrate
X/Y Size |
Pitch |
Column
ØDiameter |
Column Length
After Trimming |
Column
Type |
Package
Outline |
PIN-PACK
Option |
| 704840 |
C7-SET-484-A |
484 pins |
22x22 |
23x23mm |
1.0mm |
Ø0.50mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Actel CG484 |
812259
2.54mm L |
| 706240 |
C7-SET-624-A |
624 pins |
25x25 |
32.5x32.5mm |
1.27mm |
Ø0.56mm
0.022" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Actel CG624 |
822549
2.54mm L |
| 708960 |
C7-SET-896-A |
896 pins |
30x30 |
31x31mm |
1.0mm |
Ø0.51mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Actel CG896 |
813089
2.54mm L |
| 711400 |
C7-SET-1140-CN |
1140 pins |
34x34 |
35x35mm |
1.0mm |
Ø0.51mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Xilinx CN1140 |
813439
2.54mm L |
| 711401 |
C7-SET-1140-CF |
1140 pins |
34x34 |
35x35mm |
1.0mm |
Ø0.51mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Xilinx CF1140 |
813459
2.54mm L |
| 711520 |
C7-SET-1152-A |
1152 pins |
34x34 |
35x35mm |
1.0mm |
Ø0.51mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Actel CG1152 |
813469
2.54mm L |
| 711521 |
C7-SET-1152-A-M |
1152 pins |
34x34 |
35x35mm |
1.0mm |
Ø0.51mm
0.020" |
1.27mm
0.050" |
MCS
Micro-Coil |
Actel CG1152 |
113468
1.27mm L |
| 712720 |
C7-SET-1272-A |
1272 pins |
36x36 |
37.5x37.5mm |
1.0mm |
Ø0.51mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Actel CG1272 |
813469
2.54mm L |
| 717520 |
C7-SET-1752-CN |
1752 pins |
42x42 |
45x45mm |
1.0mm |
Ø0.51mm
0.020" |
2.2mm
0.087" |
Pb80/Sn20
Cu Wrap |
Xilinx CN1752 |
814279
2.54mm L |
| 717521 |
C7-SET-1752-CF-M |
1752 pins |
42x42 |
45x45mm |
1.0mm |
Ø0.51mm
0.020" |
1.27mm
0.050" |
MCS
Micro-Coil |
Xilinx CF1752 |
114279
1.27mm L |
|
| Note 1: See TOOL SET Drawing Number System. 1st digit=7 • 2nd~5th digits=Columns I/O • 6th digit=Version (0 to 9) |
| Note 2: See SET Model Number System. C7-SET=Model • 1234=Pins • Version (A=Actel, CF=Xilinx, CN=Xilinx, T=Atmel, R=Aeroflex, I=IBM) • M=Micro-coil Spring |
| Note 3: Columns, MCS (Micro-coil Springs) and PINPACK are sold separately. |
| Note 4: Recommended vapor phase reflow oven or 12-zone convention oven for best results. |
| Note 5: Sn63/Pb37 solder paste, reflow oven, and lead-trimming equipment not included in C7-SET. |
| Note 6: See Column Attachment process, including requirement for trimming and lapping solder columns to finished length and coplanarity. |
|
|
|
Model Numbering System |
| C7 |
- |
SET |
- |
1152 |
- |
Option |
| Series |
|
Description |
|
Code |
|
Variations |
Attachment Tool
Series • Description
C7 = CCGA tool-set
|
|
Tool Type
NAME • Description
SET = Complete System
|
|
SET
Code • Nbr. Pads
624 = 624 Pads
1152 = 1152 Pads
1752 = 1752 Pads
etc.
|
|
SET
Code • Version Description
AC = Actel/Microsemi
CF = CF Xilinx
CN = CN Xilinx
AT = Atmel
I = IBM
M = Micro-coil Spring
|
|
| |
|
|
Drawing Number System
|
| 7 |
1152 |
1 |
| Series |
Nbr Columns |
Version |
C7 Tool-set
Code • Item Description
7 = Tools & Accessories
|
Columns
Code
0484
0624
0898
1140
1144
1152
1657
1752
|
Tool SET
Code • Version
0~9
|
|
| |
|
Trimming and/or lapping is required for CCGA with Pb90/Sn10 and Pb80/Sn20 copper wrapped solder columns.
Trimming and lapping is not required for MCS Micro-coil Springs.
Above are suggested instructions. Actual results might vary. |
| | |
| |
| |
| ECCN: EAR99 Export Administration Regulations (EAR) |
| HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS |
| ITAR: Micro-coil springs and dummy daisy chain CCGA are not
restricted. |
| |
| |
